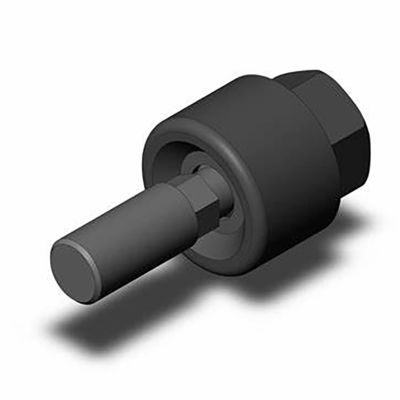

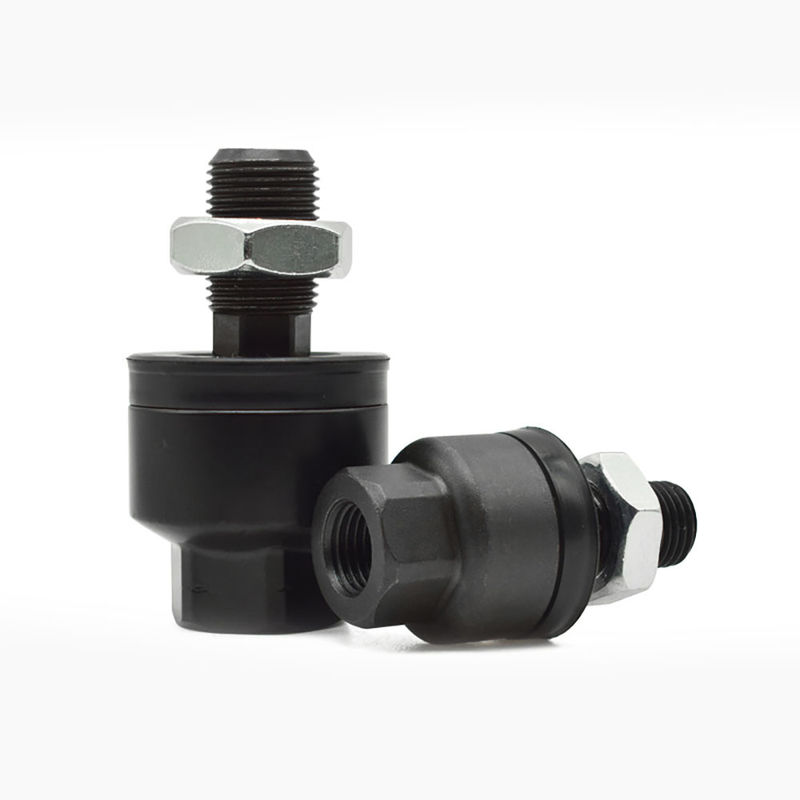

SMC JA Series JA80-20-250 Precision Control for Air and Hydraulic Cylinders

SMC JA Series JA80-20-250 Precision Control for Air and Hydraulic Cylinders

  • SMC JA Series JA80-20-250 Precision Control for Air and Hydraulic Cylinders
  • SMC JA Series JA80-20-250 Precision Control for Air and Hydraulic Cylinders
SMC JA Series JA80-20-250 Precision Control for Air and Hydraulic Cylinders
Product Details:
Place of Origin: China
Brand Name: SMC
Certification: CE
Model Number: JA80-20-250
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton /As The Clients Require
Delivery Time: 1-7Work Days After Payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000 pieces/1Month
Contact Now
Detailed Product Description
Connection Type Cylinder Side: Tapped Color: Black
Cylinder Used: Air Cylinder / Hydraulic Cylinders Series: JA Series
Connection: Flange Type: Fittings

Product Description:

Design Features:

The floating joint design of this product is capable of absorbing eccentricity between the passive body and the cylinder as well as insufficient parallelism. This functionality eliminates the need for axis alignment and simplifies the installation process. Additionally, this product has a high-temperature specification and can function within environments ranging from -5 ℃ to 60 ℃, ensuring stable connections under extreme temperatures. Lastly, it boasts a maximum tensile force of 28000 N on both the compression and tension sides, showcasing excellent load bearing capacity.

Technical Specifications:

This product is designed in a basic type installation form, providing a stable connection method 2. It is suitable for cylinders with a diameter of 100mm, and has a standard thread specification of M26X1.5, allowing for easy connection with cylinders and other pneumatic components. Additionally, it has a swing angle of ±5° with eccentricity tolerance up to 0.5mm, providing greater flexibility and adaptability. Lastly, it is suitable for various working pressures, with a pressure range of 0.05-1 MPa, and for various working environments with an environmental and fluid temperature range of -5~60 ℃.



Technical Parameters:

Series JA Series
Connection Flange
Cylinder Used Air Cylinder / Hydraulic Cylinders
Connection Type Cylinder Side Tapped
Type Fittings
Color Black

This solenoid valve is compatible with hydraulic cylinder floating joint and the applicable cylinder thread size is available for selection.



Applications:

Pneumatic and Hydraulic Systems

SMC's JA series floating joints are ideal for connecting pneumatic cylinders and hydraulic cylinders, particularly in situations where eccentricity and parallelism must be absorbed. These joints ensure stable operation of the system, making them an essential component in many industrial applications.

Automated Machinery

In automated machinery, the JA series floating joints connect cylinders and driven bodies to maintain stable operation of the system. This is especially critical when handling heavy loads or high-speed operations. SMC's floating joints provide a flexible and efficient solution for such situations.

Handling System

The handling system relies on stable operation of cylinders to improve overall efficiency. With SMC's JA series floating joints, cylinders are assured of dependable performance for optimal handling operation.

Market Positioning and User Evaluation

The JA series floating joints are positioned in the market as an efficient and flexible solution for pneumatic systems. These joints are designed with excellent performance in mind, making them a top choice in the industrial automation arena.

Users have praised the JA series floating joint for its ability to absorb eccentricity and insufficient parallelism. Additionally, this component boasts high temperature tolerance and high load response ability. Overall, users have found the JA series floating joint to be a stable and reliable choice for connecting pneumatic systems.

In summary, SMC's JA series floating joints provide an efficient and reliable solution for connecting pneumatic and hydraulic systems. With their impressive design and high performance, these joints are an ideal choice for industrial applications where stability and efficiency are top priorities.



Packing and Shipping:

Product Packaging:

  • The SMC Solenoid Valves will be packed securely in a cardboard box to prevent any damage during transit.
  • The box will be labeled with the product name and specifications for easy identification.
  • Each valve will be individually wrapped in plastic to protect it from scratches or other physical damage.

Shipping:

  • We offer worldwide shipping for the SMC Solenoid Valves.
  • The shipping cost will be calculated based on the destination and weight of the package.
  • Delivery time will depend on the destination, but we strive to deliver the product as soon as possible.
  • Tracking information will be provided to the customer once the package has been shipped.

SMC JA Series JA80-20-250 Precision Control for Air and Hydraulic Cylinders 0
