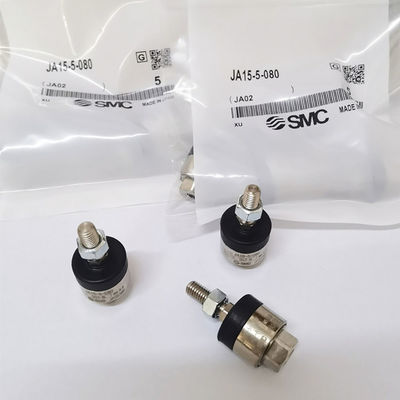

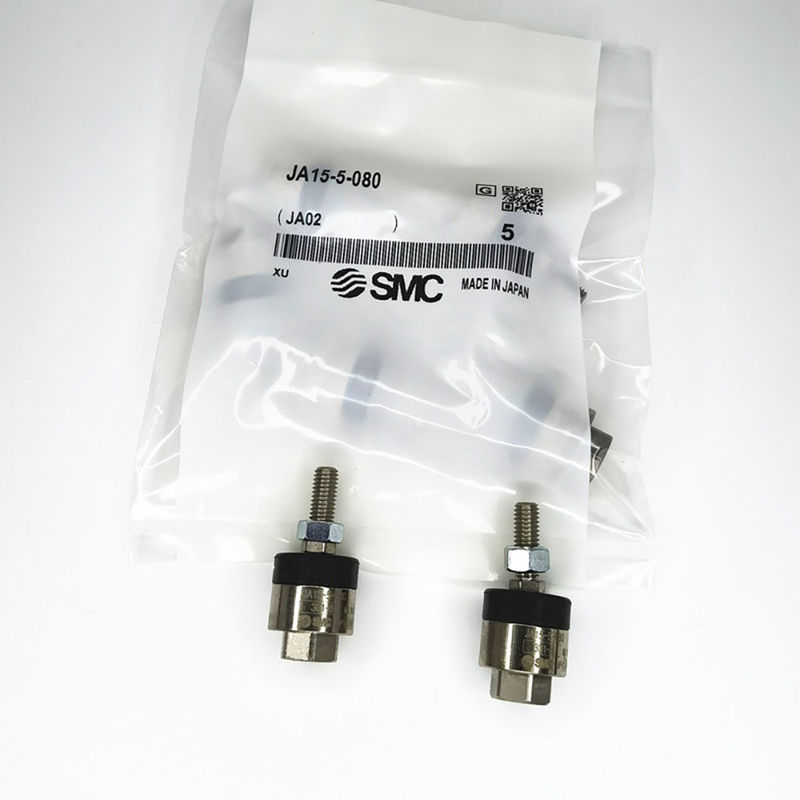

SMC Solenoid Valves with Black Flange Style JA15-5-080 M5x0.8

SMC Solenoid Valves with Black Flange Style JA15-5-080 M5x0.8

  • SMC Solenoid Valves with Black Flange Style JA15-5-080 M5x0.8
  • SMC Solenoid Valves with Black Flange Style JA15-5-080 M5x0.8
SMC Solenoid Valves with Black Flange Style JA15-5-080 M5x0.8
Product Details:
Place of Origin: China
Brand Name: SMC
Certification: CE
Model Number: JA15-5-080
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton /As The Clients Require
Delivery Time: 1-7Work Days After Payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000 pieces/1Month
Contact Now
Detailed Product Description
Series: JA Series Connection Type Cylinder Side: Tapped
Connection: Flange Cylinder Used: Air Cylinder / Hydraulic Cylinders
Type: Fittings Color: Black

Product Description:

Design Features:

The floating joint design of this product is capable of absorbing the eccentricity between the passive body and the cylinder, as well as the insufficient accuracy of parallelism, without the need for axis alignment. This simplifies the installation process. Additionally, this product is able to withstand extreme temperatures, with a wide working range from -5 ℃ to 60 ℃, ensuring connection stability. With a high load bearing capacity, this product can withstand a maximum applied tensile force on both compression and tension sides of up to 28000 N.

Technical Specifications:

There are two available installation forms for this product: a basic type that provides a stable connection method and a form 2. It is suitable for cylinders with a diameter of 100mm, and its thread specification is M26X1.5 This product provides a certain flexibility and adaptability with a swing angle of ± 5 °, allowing for a certain eccentricity of 0.5mm. It can also withstand a pressure range of 0.05-1 MPa, making it suitable for various working pressures. The environmental temperature and fluid temperature ranges fall between -5~60 ℃, allowing it to function reliably in various working environments.



Technical Parameters:

Series JA Series
Connection Type Cylinder Side Tapped
Color Black
Connection type Flange
Type Fittings
Cylinder Used Air Cylinder / Hydraulic Cylinders

This SMC Solenoid Valve product is compatible with Hydraulic cylinder floating joint, SMC floating joint, and Hydraulic cylinder floating joint.

JA6-3-050 JA80-20-150
JA10-4-070 JA80-20-250
JA15-5-080 JA80-22-150
JA15-6-100 JA100-24-300
JA20-8-100 JA100-26-150
JA20-8-125 JA100-27-150
JA20-8-150 JA100-27-200
JA25-10-150 JA125-27-200
JA30-10-125 JA140-30-150
JA32-10-100 JA160-30-200
JA40-12-125 JA160-33- 200
JA40-12-150 JA160-36-150
JA40-12-175 JA160-36-200
JA40-14-125 JA180-40-150
JA40-14-150 JA180-40-200
JA63-16-150 JA180-42-150
JA63-16-200 JA180-42-200
JA63-18-150


Applications:

Pneumatic and Hydraulic Systems

The JA series floating joints offered by SMC are suitable for connecting cylinders and hydraulic cylinders in various situations. They are particularly useful when dealing with eccentricity and parallelism by absorbing these forces, ensuring that the system remains stable and reliable.

Automated Machinery

SMC's JA series floating joints are often used in automated machinery to connect cylinders and driven bodies. This connection is necessary to maintain the stable operation of the system, ensuring that the machinery operates efficiently without interruption.

Handling System

The handling system can benefit greatly from incorporating JA series floating joints from SMC. By using these joints to ensure the stable operation of cylinders, handling efficiency can be improved significantly.

Market Positioning and User Evaluation

SMC's JA series floating joints have been designed to provide an efficient and flexible connection solution for pneumatic systems. As a result, they are widely used in the field of industrial automation.

Users have praised the JA series floating joint's ability to absorb eccentricity and insufficient parallelism, withstand high temperatures, and respond well to high loads. These performance qualities provide users with a stable and reliable pneumatic connection solution.

Overall, SMC's JA series floating joints are an excellent solution for connecting pneumatic and hydraulic systems. Their excellent design and performance make them a popular choice for use in industrial automation.



Packing and Shipping:

Product Packaging:

  • All SMC Solenoid Valves are carefully packaged in sturdy cardboard boxes to ensure safe transportation.
  • Each valve is wrapped in protective material to prevent damage during shipping.
  • The packaging includes the necessary documentation and instructions for installation and operation.

Shipping:

  • SMC Solenoid Valves are shipped via trusted carrier services such as UPS or FedEx.
  • Shipping times may vary depending on the destination, but most orders are processed and shipped within 1-2 business days.
  • Customers can select their preferred shipping method and track their package through the carrier's website.
