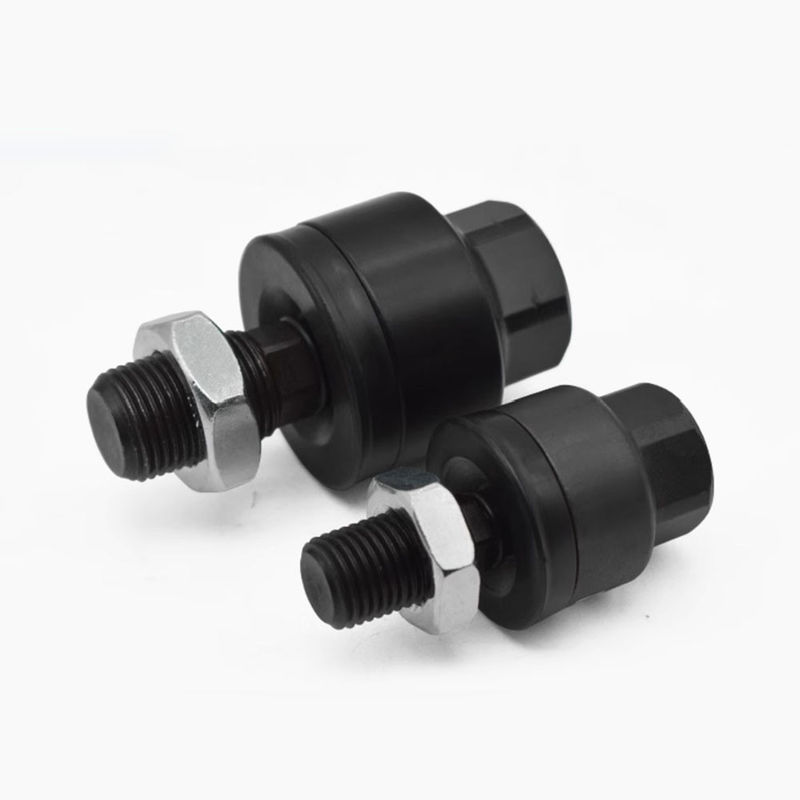

SMC JA Series JA100-26-150 Air And Hydraulic Cylinder Fit Connection

Product Details:

Place of Origin:	China
Brand Name:	SMC
Certification:	CE
Model Number:	JA100-26-150

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton /As The Clients Require
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000 pieces/1Month

Contact Now

Detailed Product Description

Cylinder Used:	Air Cylinder / Hydraulic Cylinders	Type:	Fittings
Connection:	Flange	Series:	JA Series
Color:	Black	Connection Type Cylinder Side:	Tapped

Product Description:

Design Features:

One of the design challenges of traditional joints is the insufficient absorption of eccentricity and parallelism, which hinder their installation process and performance. However, the floating joint design can solve this problem by absorbing the eccentricity between the passive body and the cylinder, and the insufficient accuracy of parallelism. With this design, there is no need for axis alignment, simplifying the installation process.
Another notable feature of this floating joint is its ability to function in high-temperature environments ranging from -5 ℃ to 60 ℃, ensuring connection stability under extreme temperatures. This temperature specification makes it ideal for use in challenging work environments.
The joint also demonstrates excellent load-bearing capacity with a maximum applied tensile force of 28000 N on both the compression and tension sides, suitable for high-load handling.

Technical specifications:

Installation form: Basic type, providing stable connection method 2.
Suitable cylinder diameter: 100mm, suitable for cylinder 1 with a diameter of 100mm.
Thread specification: M26X1.5, standard thread specification, easy to connect with cylinders and other pneumatic components.
Swing angle: ± 5 °, allowing a certain eccentricity of 0.5mm, providing greater flexibility and adaptability.
Pressure range: 0.05-1 MPa, suitable for various working pressures.
Environmental temperature and fluid temperature: -5~60 ℃, suitable for various working environments.

Technical Parameters:

Series	JA Series
Connection Type Cylinder Side	Tapped
Type	Fittings
Cylinder Used	Air Cylinder / Hydraulic Cylinders
Connection	Flange
Color	Black

SMC floating joint and SMC JA Series Floating Joints are compatible with this product. The applicable cylinder thread size is also supported.

JA6-3-050	JA80-20-150
JA10-4-070	JA80-20-250
JA15-5-080	JA80-22-150
JA15-6-100	JA100-24-300
JA20-8-100	JA100-26-150
JA20-8-125	JA100-27-150
JA20-8-150	JA100-27-200
JA25-10-150	JA125-27-200

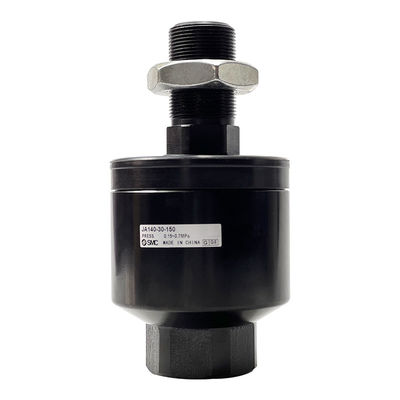

JA30-10-125	JA140-30-150
JA32-10-100	JA160-30-200
JA40-12-125	JA160-33- 200
JA40-12-150	JA160-36-150
JA40-12-175	JA160-36-200
JA40-14-125	JA180-40-150
JA40-14-150	JA180-40-200
JA63-16-150	JA180-42-150
JA63-16-200	JA180-42-200
JA63-18-150

Applications:

Pneumatic and hydraulic systems

SMC’s JA series floating joints are ideal for connecting cylinders and hydraulic cylinders, especially in situations where eccentricity and parallelism need to be absorbed. These floating joints provide a flexible, efficient connection solution for pneumatic systems.

Automated machinery

Automated machinery relies on the stable operation of connections between cylinders and driven bodies, for which the JA series floating joints are widely used. These joints ensure a stable operation of the system, helping to improve overall efficiency and performance.

Handling system

The JA series floating joints are designed to ensure the stable operation of cylinders in handling systems. By providing a reliable connection solution for pneumatic systems, these joints can help improve the efficiency of handling and transport processes.

Market positioning and user evaluation

SMC's JA series floating joints are widely recognized and trusted by the industrial automation market. These floating joints have an excellent design and performance that provides an efficient and flexible connection solution for pneumatic systems.
Users of SMC's JA series floating joints have given high praise and positive reviews. The joints perform well in absorbing eccentricity and insufficient parallelism, can tolerate high temperatures, and have a high load response ability, providing a stable and reliable pneumatic connection solution to its users.
In summary, SMC's JA series floating joints provide an efficient and reliable solution for connecting pneumatic and hydraulic systems with their excellent design and performance, making them a popular choice in the field of industrial automation.

Packing and Shipping:

Product Packaging:

The SMC Solenoid Valves are carefully packaged in a sturdy cardboard box to prevent damage during transportation.
Each valve is individually packed in a plastic bag to protect it from scratches and other damages.
The packaging also includes a user manual and any necessary accessories.

Shipping:

We offer worldwide shipping for the SMC Solenoid Valves with delivery times varying based on location.
All orders are processed within 24 hours of receipt and shipped out as soon as possible.
We work with trusted shipping carriers to ensure that your order arrives in a timely and safe manner.
Customers will receive a tracking number to track their order once it has been shipped.
Please note that additional fees such as customs duties and taxes may apply for international orders and are the responsibility of the customer.
