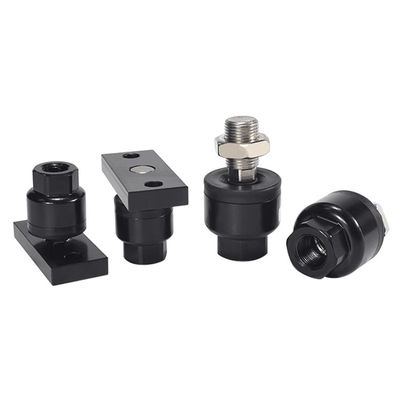

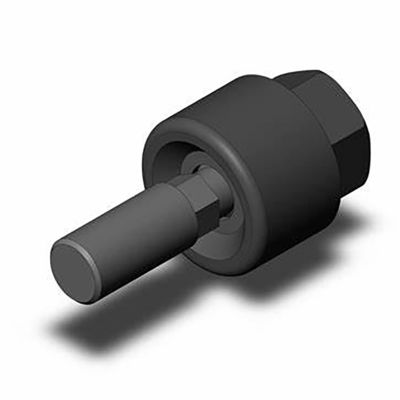

Product Description:
Design Features
The floating joint design ensures sufficient absorption of eccentricity and parallelism, even in the absence of axis alignment. This simplifies the installation process by eliminating the need for alignment adjustments between the passive body and cylinder. Additionally, the joint design is capable of absorbing the insufficient accuracy of parallelism.
With a high temperature specification, this floating joint is suitable for operation in a wide range of temperatures, from -5 ℃ to 60 ℃. This ensures that connection stability is maintained even under extreme temperatures.
The floating joint design also boasts high load handling capacity. It can withstand the maximum applied tensile force of 28,000 N on both the compression and tension sides. This makes it an excellent solution for applications that require high load-bearing capacity.
Technical Specifications
The floating joint comes in a basic installation form, offering a stable connection method 2.
It is suitable for use with cylinders with a diameter of 100mm. The standard thread specification of M26X1.5 makes it easy to connect with cylinders and other pneumatic components.
The floating joint is capable of a swing angle of ± 5 °, allowing a certain eccentricity of 0.5mm. This provides greater flexibility and adaptability in applications that require it.
The pressure range of this floating joint is 0.05-1 MPa, making it suitable for use in various working pressures.
The floating joint is suitable for a wide range of working environments and fluid temperatures, with operating temperatures between -5 ℃ and 60 ℃.
Technical Parameters:
| Attribute |
Value |
| Cylinder Used |
Air Cylinder / Hydraulic Cylinders |
| Connection |
Flange |
| Color |
Black |
| Series |
JA Series |
| Type |
Fittings |
| Connection Type Cylinder Side |
Tapped |
SMC floating joint, Hydraulic cylinder floating joint, Cylinder exhaust tailpipe joint
| JA6-3-050 |
JA80-20-150 |
| JA10-4-070 |
JA80-20-250 |
| JA15-5-080 |
JA80-22-150 |
| JA15-6-100 |
JA100-24-300 |
| JA20-8-100 |
JA100-26-150 |
| JA20-8-125 |
JA100-27-150 |
| JA20-8-150 |
JA100-27-200 |
| JA25-10-150 |
JA125-27-200 |
| JA30-10-125 |
JA140-30-150 |
| JA32-10-100 |
JA160-30-200 |
| JA40-12-125 |
JA160-33- 200 |
| JA40-12-150 |
JA160-36-150 |
| JA40-12-175 |
JA160-36-200 |
| JA40-14-125 |
JA180-40-150 |
| JA40-14-150 |
JA180-40-200 |
| JA63-16-150 |
JA180-42-150 |
| JA63-16-200 |
JA180-42-200 |
| JA63-18-150 |
|
Applications:
Pneumatic and Hydraulic Systems
The SMC JA series floating joints are suitable for connection of cylinders and hydraulic cylinders, especially in situations where eccentricity and parallelism need to be absorbed. This ensures stable operation of the system.
Automated Machinery
In automated machinery, the SMC JA series floating joints are used to connect cylinders and driven bodies, ensuring stable operation of the system for improved efficiency.
Handling System
For cylinders in the handling system, the SMC JA series floating joints ensure stable operation for improved handling efficiency.
Market Positioning and User Evaluation:
Market Positioning
The SMC JA series floating joints are an efficient and flexible solution for pneumatic systems with their excellent design and performance. They are widely used in the field of industrial automation.
User Evaluation
Users have given high praise to the SMC JA series floating joints for its ability to absorb eccentricity and insufficient parallelism, high temperature tolerance, and high load response ability. It provides users with a stable and reliable pneumatic connection solution.
Summary
In summary, the SMC JA series floating joints provide an efficient and reliable solution for connecting pneumatic and hydraulic systems with their excellent design and performance. They are widely used in the field of industrial automation.
Packing and Shipping:
Product Packaging:
- Each solenoid valve is individually packed in a cardboard box for protection.
- The boxes are then packed in a larger outer box for shipping.
- The outer box is labeled with the product name, quantity, and other necessary information.
Shipping:
- Shipping is done through trusted carriers to ensure safe and timely delivery.
- The shipping cost is calculated based on the weight and destination of the order.
- Customers can track their shipment online using the provided tracking number.
- In case of any damage or defects during shipping, customers can contact us for a replacement or refund.
