Product Description:
Design Features:

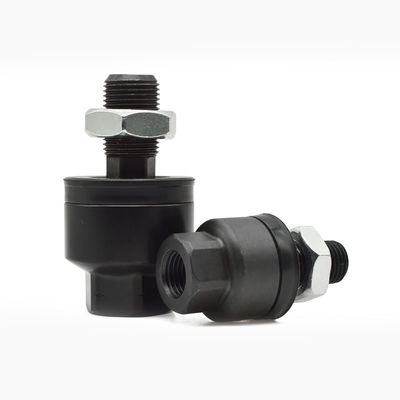

The floating joint design is capable of absorbing eccentricity and parallelism between the passive body and cylinder, which eliminates the need for axis alignment and simplifies the installation process. This design also provides connection stability under extreme temperatures ranging from -5 ℃ to 60 ℃.
Furthermore, this joint design can handle highloads with a maximum applied tensile force of 28000 N, on both the compression and tension sides, demonstrating excellent load bearing capacity.
Technical specifications:
- Installation form: Basic type providing a stable connection method 2.
- Suitable cylinder diameter: 100mm, suitable for cylinder 1 with a diameter of 100mm.
- Thread specification: M26X1.5, standard thread specification that's easy to connect with cylinders and other pneumatic components.
- Swing angle: ± 5 °, allowing a certain eccentricity of 0.5mm, providing greater flexibility and adaptability.
- Pressure range: 0.05-1 MPa, suitable for various working pressures.
- Environmental temperature and fluid temperature: -5~60 ℃, suitable for various working environments.
Technical Parameters:
| Attribute |
Value |
| Type |
Fittings |
| Cylinder Used |
Air Cylinder / Hydraulic Cylinders |
| Series |
JA Series |
| Connection Type Cylinder Side |
Tapped |
| Connection |
Flange |
| Color |
Black |
| JA6-3-050 |
JA80-20-150 |
| JA10-4-070 |
JA80-20-250 |
| JA15-5-080 |
JA80-22-150 |
| JA15-6-100 |
JA100-24-300 |
| JA20-8-100 |
JA100-26-150 |
| JA20-8-125 |
JA100-27-150 |
| JA20-8-150 |
JA100-27-200 |
| JA25-10-150 |
JA125-27-200 |
| JA30-10-125 |
JA140-30-150 |

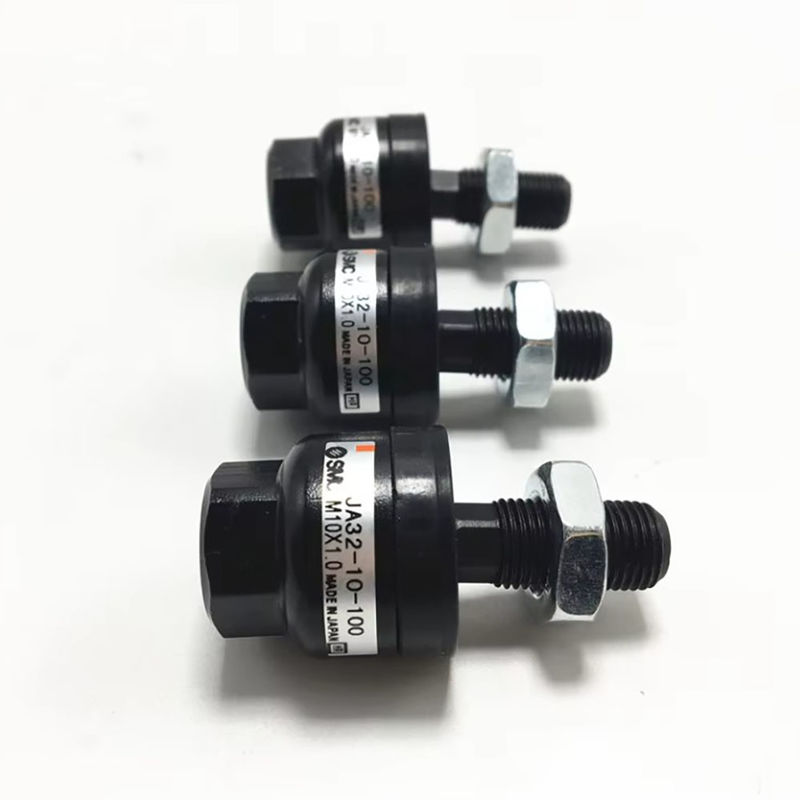

| JA32-10-100 |
JA160-30-200 |
| JA40-12-125 |
JA160-33- 200 |
| JA40-12-150 |
JA160-36-150 |
| JA40-12-175 |
JA160-36-200 |
| JA40-14-125 |
JA180-40-150 |
| JA40-14-150 |
JA180-40-200 |
| JA63-16-150 |
JA180-42-150 |
| JA63-16-200 |
JA180-42-200 |
| JA63-18-150 |
|
Applications:
Pneumatic and hydraulic systems are commonly used in the industry as they are suitable for connecting cylinders and hydraulic cylinders, especially in situations where eccentricity and parallelism need to be absorbed. These systems ensure the stable and efficient operation of the machinery.
In automated machinery, it is essential to connect cylinders and driven bodies to ensure the stability of the system. This will help prevent any accidents and ensure that the machinery runs smoothly.
The handling system also needs to be stable for its cylinders to operate efficiently. When the cylinders are stable, it improves the handling system's efficiency, making the process faster and more effective.
SMC's JA series floating joints are a popular solution in the market for their efficiency and flexibility when it comes to connecting pneumatic systems. Their excellent design and performance have made them a favorite in the field of industrial automation.
Users highly recommend SMC's JA series floating joints because they perform well in absorbing eccentricity and insufficient parallelism. They also have high temperature tolerance, high load response ability, and provide a stable and reliable pneumatic connection solution.
Overall, SMC's JA series floating joints offer an efficient and reliable solution for connecting pneumatic and hydraulic systems, guaranteeing stable and efficient machinery operations in the field of industrial automation.
Packing and Shipping:
Product Packaging:
- The SMC Solenoid Valves are packed in a sturdy cardboard box to ensure safe delivery.
- Each valve is individually wrapped and protected with foam inserts to prevent damage during transit.
- The box contains a user manual and installation guide for easy setup and operation.
Shipping:
- We offer free shipping for all orders of SMC Solenoid Valves.
- The valves are shipped via standard ground shipping and usually take 5-7 business days for delivery.
- For urgent orders, we offer express shipping options at an additional cost.
- Customers will receive a tracking number once the order has been shipped to track the delivery status.
