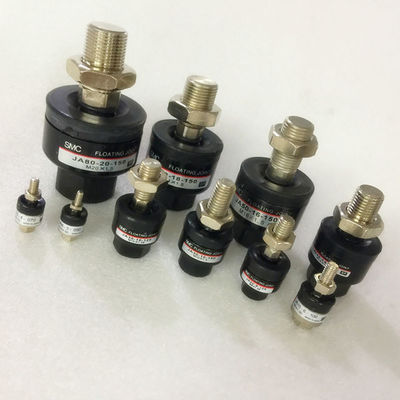

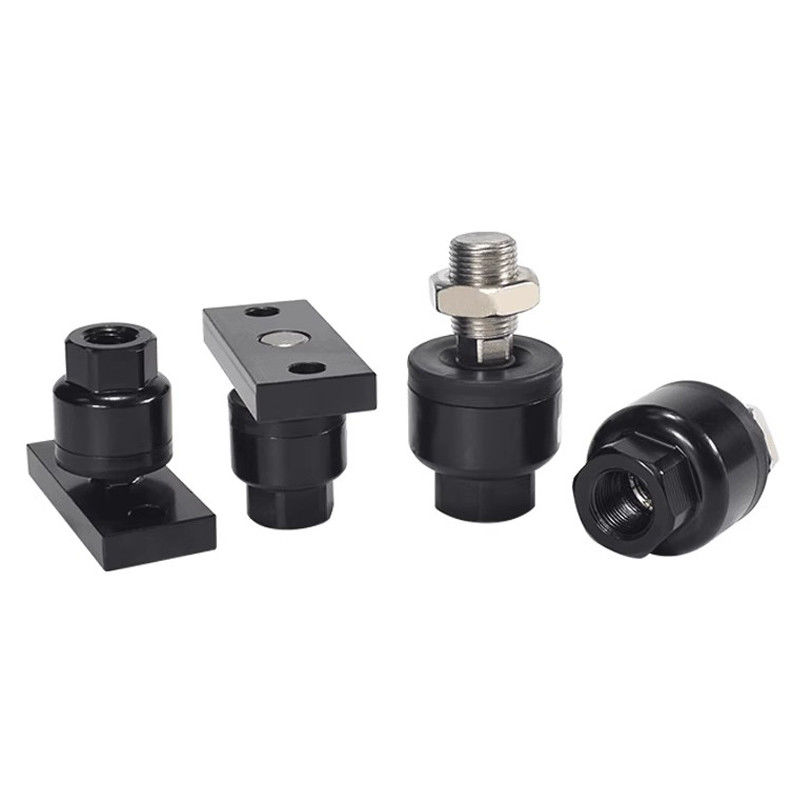

SMC Flange Solenoid Valves for Hydraulic Cylinders JA160-33- 200

Product Description:

The joint design has been improved to absorb eccentricity and parallelism. The floating joint design can absorb the eccentricity between the passive body and the cylinder as well as the limited accuracy of parallelism without requiring axis alignment. This removes the need for complex and difficult installation.
The joint can operate effectively in a range of temperatures between -5 ℃ to 60 ℃, making this joint a perfect choice for extremely hot environments while maintaining its stability.
The maximum applied tensile force on both the compression and tension sides is 28000N. This demonstrates excellent load bearing capacity.

The joint has a basic type installation, providing stable connection method 2 for ease of use.
The joint is suitable for cylinders with a diameter of 100mm, making it compatible with cylinder 1.
The joint follows the M26X1.5 standard thread specification, making it easy to connect with cylinders and other pneumatic components.
The joint allows a certain eccentricity of 0.5mm, with a swing angle of ± 5 °, providing greater flexibility and adaptability.
The range of pressure for the joint is 0.05-1 MPa, making it suitable for a diverse range of working pressures.
Environmental temperatures and fluid temperatures ranging from -5 ~60 ℃ are no match for this joint, providing a robust and durable solution for a variety of working environments.

Technical Parameters:

Applications:

SMC's JA series floating joints are well-suited for connecting hydraulic and pneumatic cylinders in situations where eccentricity and parallelism need to be absorbed. These connections provide a flexible solution for ensuring stable operation of the system.

In automated machinery, JA series floating joints are crucial for the stable connection of the cylinders and driven bodies. This enhances the machine's overall performance by preventing any disruptions to the system's operation.

Efficient operation of cylinders within handling systems can significantly improve handling efficiency. By using JA series floating joints, the handling system maintains stability, eliminating errors and increasing the productivity of the entire system.

SMC's JA series floating joints are designed with excellent performance in mind, and provide an efficient and flexible connection solution for pneumatic systems. These innovative systems have played a significant role in increasing productivity and are widely used in the field of industrial automation.

The JA series floating joint has received high praise from users for its superior performance, including tolerating high temperatures and loads. Moreover, it absorbs eccentricity and ensures the parallelism of the cylinders. The joint provides a reliable and stable pneumatic connection solution, which is a significant advantage in the current industrial market.
Overall, by using SMC's JA series floating joints, businesses can achieve reliable and efficient operation for their pneumatic and hydraulic systems in various industrial settings. They are among the most viable solutions in the current market.

Packing and Shipping:

Product Packaging:

• The solenoid valves will be packed in a sturdy cardboard box to ensure safe transportation.
• Each valve will be wrapped in bubble wrap to prevent any damage during shipping.
• The box will be labeled with the product name and quantity for easy identification.

Shipping:

• We offer worldwide shipping for our SMC solenoid valves.
• Orders will be processed within 24 hours and shipped out within 2-3 business days.
• We use reliable shipping carriers to ensure timely and secure delivery.
• Customers will receive a tracking number to monitor the shipment status.
