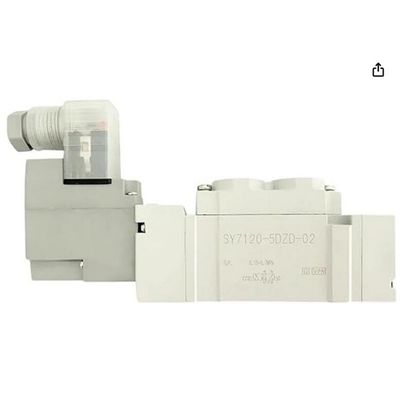

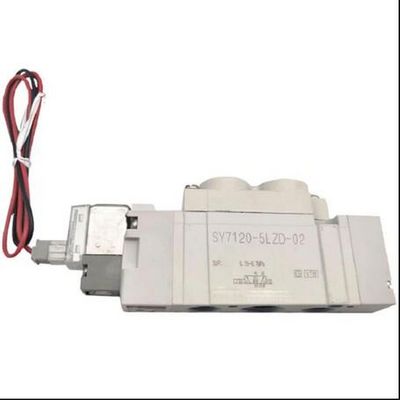

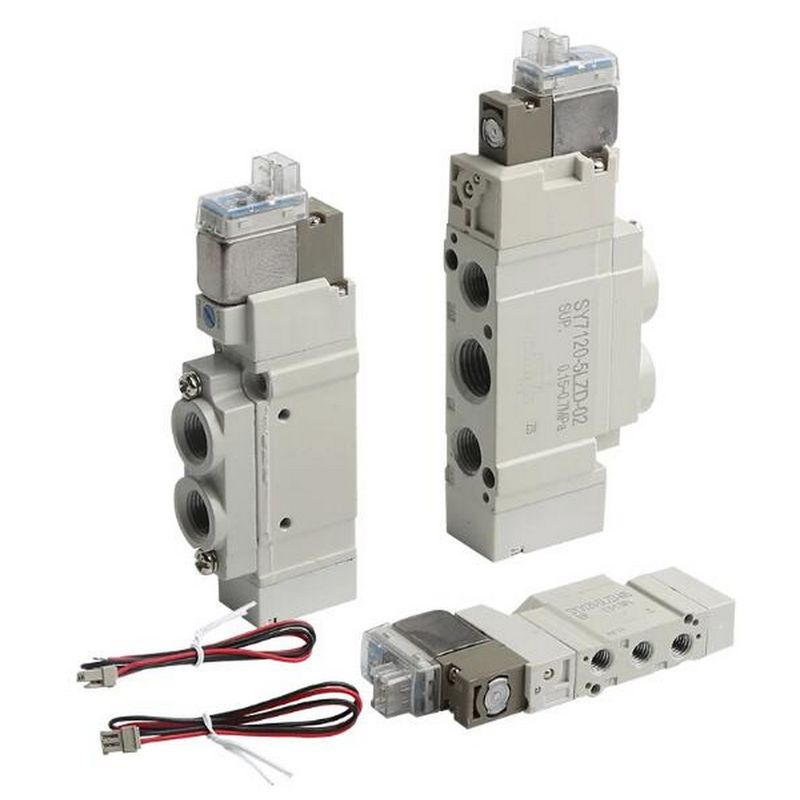

SY7220-5LZD-C6 SMC Solenoid Valve 2 position double Port Size ø6 DC24V

Product Description:

The Series SY is an exceptional solution for meeting your requirements at a cost-effective price point. The valve performance in this series represents major advancements that are sure to meet your expectations. Featuring high flow and low power consumption, the SY model is designed in a compact style that adds even more value.

You can choose between two available styles - the body ported or the base mounted. Additionally, the SY valve can be used individually or mounted in manifold form, providing you with the flexibility you need.

Valve model	Type of actuation		Port size			Flow rate characteristics						Weight (g)
			1, 5, 3 (P, EA, EB)	4, 2 (A, B)		1→4/2 (P→A/B)			4/2→5/3 (A/B→EA/EB)			Gro- mmet	L/M plug connector	DIN terminal	W M8 connector
						C (dm3/ (s·bar) )	b	Cv	C (dm3/ (s·bar) )	b	Cv
SY7□20 -□-02	2 position	Single	1 (P) Port 5, 3 (EA, EB) port	14		4.1	0.23	0.93	3.3	0.33	0.81	101	104	125	108
		Double										120	125	167	133
	3 position	Closed center				2.9	0.31	0.70	2.4	0.38	0.63	128	133	175	141
		Exhaust center				2.5	0.39	0.65	3.4 (2.1)	0.35 (0.38)	0.82 (0.54)
		Pressure center				4.3 (2.4)	0.23 (0.32)	0.97 (0.61)	2.2	0.39	0.58
SY7□20 -□-C8	2 position	Single		C8 One- touch fitting for ø8		3.2	0.26	0.77	3.2	0.37	0.82	107	110	131	114
		Double										126	132	174	140
	3 position	Closed center				2.6	0.24	0.63	2.4	0.31	0.62	134	140	182	148
		Exhaust center				2.4	0.25	0.57	2.6 (1.9)	0.42 (0.46)	0.70 (0.56)
		Pressure center				3.3 (2.4)	0.28 (0.22)	0.78 (0.57)	2.2	0.34	0.60
SY7□20 -□-C10	2 position	Single		C10 One- touch fitting for ø10		3.8	0.26	0.86	3.2	0.34	0.82	103	105	126	109
		Double										122	127	169	135
	3 position	Closed center				2.8	0.27	0.67	2.4	0.21	0.59	130	135	177	143
		Exhaust center				2.5	0.25	0.59	2.7 (2.0)	0.38 (0.38)	0.70 (0.56)
		Pressure center				3.8 (2.4)	0.25 (0.31)	0.89 (0.61)	2.3	0.38	0.61

Applications:

The SMC Solenoid Valves have an LED indicator light that makes it easy to monitor the valve's operation. The mounting orientation of the valve is unrestricted, which makes it easy to install in any direction. These valves do not require lubrication, which reduces maintenance costs. They have a high impact and vibration resistance of 150/30 m/s2, which makes them suitable for use in harsh industrial environments. The allowable voltage fluctuation for the valve is ±10% of the rated voltage.

The SMC Solenoid Valves have various product application occasions and scenarios, including:

• Industrial automation
• Food and beverage industry
• Pharmaceutical industry
• Petrochemical industry
• Water treatment industry
• Automobile industry
• Textile industry

These valves can be used in various scenarios, such as:

• Controlling the flow of liquid or gas
• Controlling the pressure of liquid or gas
• Controlling the direction of liquid or gas flow
• Controlling the level of a liquid in a tank
• Controlling the temperature of a liquid or gas

Overall, the SMC Solenoid Valves are high-quality products that can be used in various industrial applications. Their LED indicator light, unrestricted mounting orientation, and high impact and vibration resistance make them suitable for use in harsh industrial environments. The product application occasions and scenarios for these valves are vast, making them a versatile product that can be used in various industries.

Support and Services:

Our technical support team is available to assist you with any questions or issues you may encounter with your SMC solenoid valve product.

We offer a range of services including:

• Installation support
• Troubleshooting assistance
• Repair and maintenance services
• Product documentation and resources
• Training and education

Our goal is to ensure that your SMC solenoid valve product functions optimally and reliably, and that you are satisfied with your purchase.

Packing and Shipping:

Product Name: SMC Solenoid Valves

Product Description: These solenoid valves are suitable for a variety of applications including air, water, and oil. They are made of high-quality materials and are designed to be durable and long-lasting.

Packaging: The solenoid valves are packaged in individual boxes with protective foam inserts to prevent any damage during shipping.

Shipping: We offer standard shipping options for our customers. Shipping costs will vary depending on the destination and the quantity ordered. Orders are typically shipped within 1-2 business days.
