Place of Origin: | China |
Brand Name: | SMC |
Certification: | CE |
Model Number: | SY7220-5LZD-C8 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiation |
Packaging Details: | Carton /As The Clients Require |
Delivery Time: | 1-7Work Days After Payment |
Payment Terms: | T/T, Western Union,Paypal |
Supply Ability: | 5000 pieces/1Month |
Mounting Orientation: | Unrestricted | Indicator Light: | LED |
---|---|---|---|
Enclosure: | Dust Proof | Impact/Vibration Resistance (m/s2 ): | 150/30 |
Allowable Voltage Fluctuation: | ±10% Of Rated Voltage | Lubrication: | Not Required |
Highlight: | DC24V Pneumatic Solenoid Valve,SMC SY7220-5LZD-C8,2 Position Pneumatic Solenoid Valve |
The Series SY presents significant improvements in valve performance, providing a cost-effective solution to meet your requirements. With high flow characteristics and low power consumption, this series is engineered to perform well in a compact design.

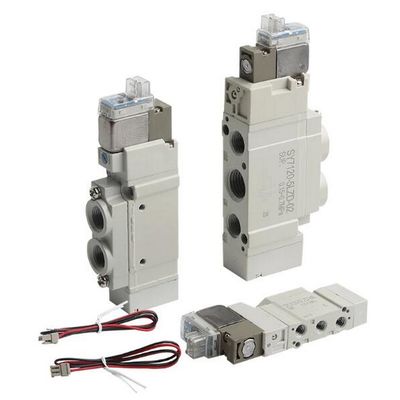

The SY valve comes in two different styles - body ported or base mounted - and can be utilized as a single unit or in a manifold mounted configuration. This makes it a highly versatile option, capable of meeting the needs of a variety of applications in a number of different industries.
Series | SY3000 | SY5000 | SY7000 | SY9000 | ||||||||||||||||
Fluid | Air | |||||||||||||||||||
Internal pilot Operating pressure range (MPa) |
2 position single | 0.15 to 0.7 | ||||||||||||||||||
2 position double | 0.1 to 0.7 | |||||||||||||||||||
3 position | 0.2 to 0.7 | |||||||||||||||||||
Ambient and fluid temperature (°C) | –10 to 50 (No freezing) | |||||||||||||||||||
Max. operating frequency (Hz) |
2 position single, double | 10 | 5 | 5 | 5 | |||||||||||||||
3 position | 3 | 3 | 3 | 3 | ||||||||||||||||
Manual override (Manual operation) | Non-locking push type, Push-turn locking slotted type, Push-turn locking lever type |
|||||||||||||||||||
Pilot exhaust method | Common exhaust type for main and pilot valve | |||||||||||||||||||
Lubrication | Not required | |||||||||||||||||||
Mounting orientation | Unrestricted | |||||||||||||||||||
Impact/Vibration resistance (m/s2) Note) | 150/30 | |||||||||||||||||||
Enclosure | Dust proof (* DIN terminal and M8 connector: IP65) |
Valve model |
Type of actuation |
Port size | Flow rate characteristics | Weight (g) | |||||||||||
1, 5, 3 (P, EA, EB) |
4, 2 (A, B) |
1→4/2 (P→A/B) | 4/2→5/3 (A/B→EA/EB) | Gro- mmet |
L/M plug connector |
DIN terminal |
W M8 connector |
||||||||
C (dm3/ (s·bar) ) |
b | Cv | C (dm3/ (s·bar) ) |
b | Cv | ||||||||||
SY7□20 -□-02 |
2 position |
Single | ![]() ![]() ![]() ![]() Port 5, 3 (EA, EB) port |
14 | 4.1 | 0.23 | 0.93 | 3.3 | 0.33 | 0.81 | 101 | 104 | 125 | 108 | |
Double | 120 | 125 | 167 | 133 | |||||||||||
3 position |
Closed center |
2.9 | 0.31 | 0.70 | 2.4 | 0.38 | 0.63 | 128 | 133 | 175 | 141 | ||||
Exhaust center |
2.5 | 0.39 | 0.65 | 3.4 (2.1) |
0.35 (0.38) |
0.82 (0.54) |
|||||||||
Pressure center |
4.3 (2.4) |
0.23 (0.32) |
0.97 (0.61) |
2.2 | 0.39 | 0.58 | |||||||||
SY7□20 -□-C8 |
2 position |
Single | ![]() One- touch fitting for ø8 |
3.2 | 0.26 | 0.77 | 3.2 | 0.37 | 0.82 | 107 | 110 | 131 | 114 | ||
Double | 126 | 132 | 174 | 140 | |||||||||||
3 position |
Closed center |
2.6 | 0.24 | 0.63 | 2.4 | 0.31 | 0.62 | 134 | 140 | 182 | 148 | ||||
Exhaust center |
2.4 | 0.25 | 0.57 | 2.6 (1.9) |
0.42 (0.46) |
0.70 (0.56) |
|||||||||
Pressure center |
3.3 (2.4) |
0.28 (0.22) |
0.78 (0.57) |
2.2 | 0.34 | 0.60 | |||||||||
SY7□20 -□-C10 |
2 position |
Single | ![]() One- touch fitting for ø10 |
3.8 | 0.26 | 0.86 | 3.2 | 0.34 | 0.82 | 103 | 105 | 126 | 109 | ||
Double | 122 | 127 | 169 | 135 | |||||||||||
3 position |
Closed center |
2.8 | 0.27 | 0.67 | 2.4 | 0.21 | 0.59 | 130 | 135 | 177 | 143 | ||||
Exhaust center |
2.5 | 0.25 | 0.59 | 2.7 (2.0) |
0.38 (0.38) |
0.70 (0.56) |
|||||||||
Pressure center |
3.8 (2.4) |
0.25 (0.31) |
0.89 (0.61) |
2.3 | 0.38 | 0.61 |
The SMC Solenoid Valves can be used in a variety of applications, including industrial automation, food processing, and medical equipment. These valves are suitable for controlling the flow of liquids and gases in various systems. They are easy to install and come with an LED indicator light, making it easy to monitor their status.
The SMC Solenoid Valves are dust-proof and do not require lubrication, making them ideal for use in harsh environments. They can be mounted in any orientation, and the allowable voltage fluctuation is ±10% of the rated voltage. These valves are highly reliable and have a long service life, making them an excellent choice for many applications.
The supply ability for SMC Solenoid Valves is 5000 pieces per month, ensuring that customers can get their orders on time. The delivery time for these valves is 1-7 work days after payment, and the payment terms include T/T, Western Union, and Paypal.
In conclusion, the SMC Solenoid Valves are a high-quality product that can be used in a variety of applications. They are manufactured by SMC, a well-known brand in the industry, and come with a CE certification. These valves are easy to install, reliable, and have a long service life. The supply ability is high, and the delivery time is fast, making them an excellent choice for customers who need high-quality solenoid valves.
SMC Solenoid Valves offer reliable and efficient control for various fluid and air flow applications. Our team of technical support experts are available to provide assistance in selecting the right valve for your specific needs, as well as troubleshooting any issues that may arise. In addition, we offer maintenance and repair services to ensure optimal performance and longevity of our products.
Product Packaging:
Shipping:
