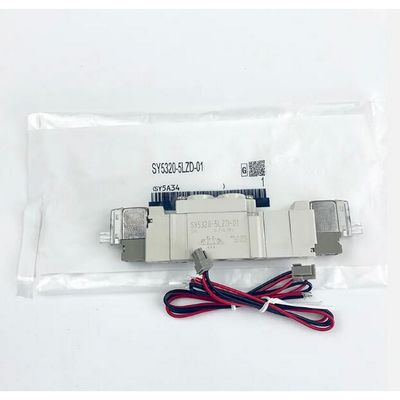

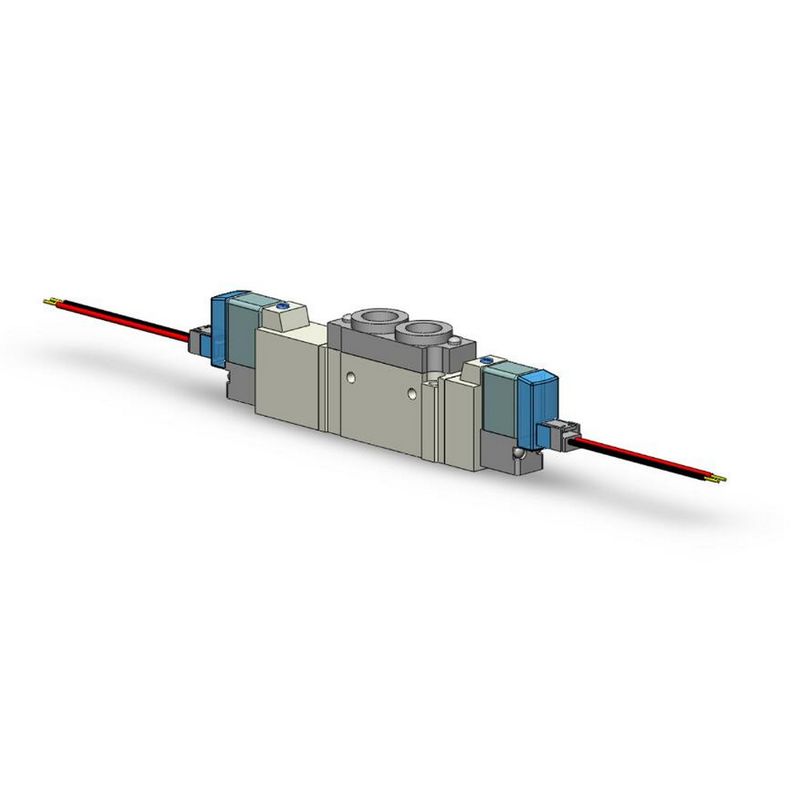

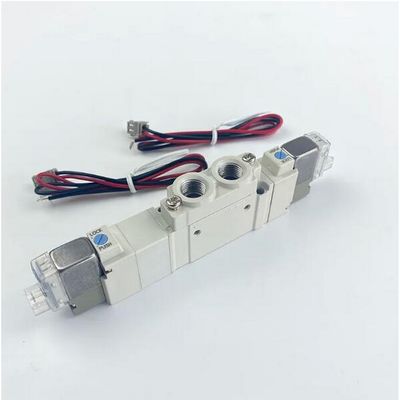

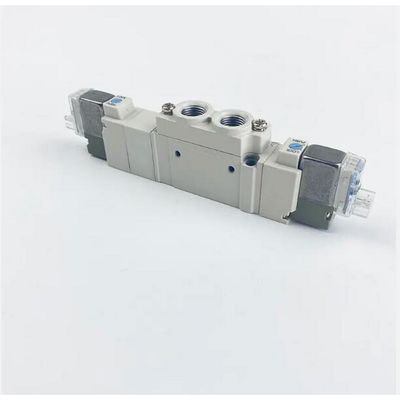

SMC SY5320-5LZD-C8 DC24V Solenoid Valve One-Touch Fitting 3 Position Closed Center Port Size ø8

Product Description:

The Series SY presents significant advancements in valve performance, providing cost-effective solutions that cater to your specific needs and requirements. With a compact design, the series boasts a high flow capacity capacity while consuming low amounts of power.

The SY series is suitable for a variety of applications and is available in two different styles- body ported and base mounted. You have the flexibility to use it individually or mount it into a manifold arrangement to suit your requirements.

Whether you're a commercial, manufacturing, or industrial operation, the Series SY offers the perfect valve solution to suit your needs while ensuring low power consumption and high flow rate.

Valve model	Type of actuation		Port size		Flow rate characteristics						Weight (g)
			1, 5, 3 (P, EA, EB)	4, 2 (A, B)	1→4/2 (P→A/B)			4/2→5/3 (A/B→EA/EB)			Gro- mmet	L/M plug connector	DIN terminal	W M8 connector
					C (dm3/ (s·bar) )	b	Cv	C (dm3/ (s·bar) )	b	Cv
SY5□20 -□-01	2 position	Single	18	18	1.9	0.35	0.49	2.4	0.39	0.61	70	72	93	76
		Double									88	93	135	101
	3 position	Closed center			1.7	0.43	0.45	1.8	0.35	0.46	93	98	140	106
		Exhaust center			1.5	0.44	0.41	2.5 (1.5)	0.32 (0.43)	0.59 (0.40)
		Pressure center			2.2 (0.91)	0.46 (0.58)	0.61 (0.28)	1.8	0.38	0.46
SY5□20 -□-C4	2 position	Single		C4 touch fitting	0.75	0.43	0.20	0.85	0.64	0.30	94	96	117	100
		Double									111	117	159	125
	3 position	Closed center			0.74	0.40	0.19	0.84	0.57	0.28	117	122	164	130
		Exhaust center			0.75	0.36	0.19	0.84 (0.84)	0.64 (0.53)	0.30 (0.27)
		Pressure center			0.78 (0.71)	0.44 (0.37)	0.21 (0.18)	0.84	0.57	0.27
SY5□20 -□-C6	2 position	Single		C6 One- touch fitting for ø6	1.5	0.33	0.33	2.0	0.37	0.52	88	91	112	95
		Double									106	111	153	119
	3 position	Closed center			1.3	0.31	0.33	1.6	0.32	0.39	111	116	158	124
		Exhaust center			1.3	0.33	0.33	1.8 (1.4)	0.35 (0.37)	0.44 (0.35)
		Pressure center			1.7 (0.80)	0.31 (0.47)	0.42 (0.23)	1.7	0.33	0.44
SY5□20 -□-C8	2 position	Single		C8 One- touch fitting for ø8	1.9	0.21	0.45	2.3	0.29	0.57	80	82	103	86
		Double									98	103	145	111
	3 position	Closed center			1.6	0.29	0.39	1.7	0.38	0.46	103	108	150	116
		Exhaust center			1.4	0.38	0.39	2.0 (1.5)	0.37 (0.41)	0.52 (0.43)
		Pressure center			2.2 (1.6)	0.32 (0.44)	0.56 (0.44)	1.8	0.41	0.50

Applications:

SMC Solenoid Valves are ideal for a variety of applications and scenarios. They are commonly used in factories, manufacturing plants, and other industrial settings. They are suitable for controlling the flow of air, water, and other fluids. The SMC 5 Port Solenoid Valve is specifically designed for use in compressed air systems. It can be used to control the flow of compressed air, which is essential for many industrial processes.

SMC Solenoid Valves are also used in the automotive industry. They are used to control the flow of fuel and other fluids in engines. They are also used in braking systems and other critical components of vehicles. These valves are designed to withstand the harsh conditions of the automotive industry and are built to last.

SMC Solenoid Valves are also used in the medical industry. They are used to control the flow of gases and fluids in medical equipment. They are often used in ventilators, anesthesia machines, and other critical medical equipment. Their reliability and durability make them a popular choice in the medical industry.

The SMC Solenoid Valves come with an LED indicator light that makes it easy to monitor their operation. They do not require lubrication and have an unrestricted mounting orientation. They can tolerate voltage fluctuations within ±10% of the rated voltage and have an impact/vibration resistance of 150/30 m/s2.

SMC Solenoid Valves have a supply ability of 5000 pieces per month. They are available for purchase through various payment methods, including T/T, Western Union, and Paypal. They are a reliable and cost-effective solution for controlling the flow of fluids in a variety of applications.

Support and Services:

SMC Solenoid Valves are designed to control the flow of air, gas, water, and other liquids in industrial applications. Our solenoid valves are compact, reliable, and provide high flow rates for efficient operation. We offer a variety of valve types including direct acting, pilot operated, and servo assisted for different applications and environments.

Our technical support team is available to assist with any questions or issues related to SMC Solenoid Valves. We provide product selection assistance, troubleshooting guidance, and repair services to ensure our customers get the most out of their valves. In addition, we offer training and educational resources to help customers better understand our products and their capabilities.

SMC also offers a range of value-added services to support our customers, including custom engineering and design, installation and commissioning, and ongoing maintenance and support. Our goal is to provide comprehensive solutions that meet the unique needs of each customer and help them achieve their business objectives.

Packing and Shipping:

Product Packaging:

• SMC Solenoid Valve
• User Manual
• Product Warranty Card

Shipping:

• Shipping Method: Standard
• Estimated Delivery Time: 5-7 business days
• Shipping Cost: Free
