Product Description:

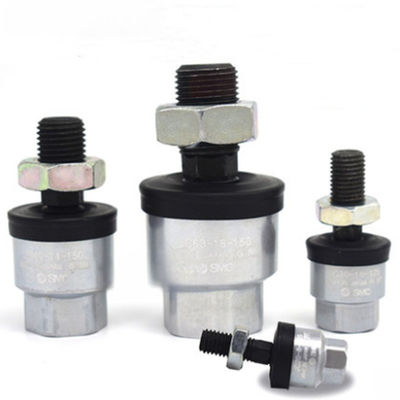

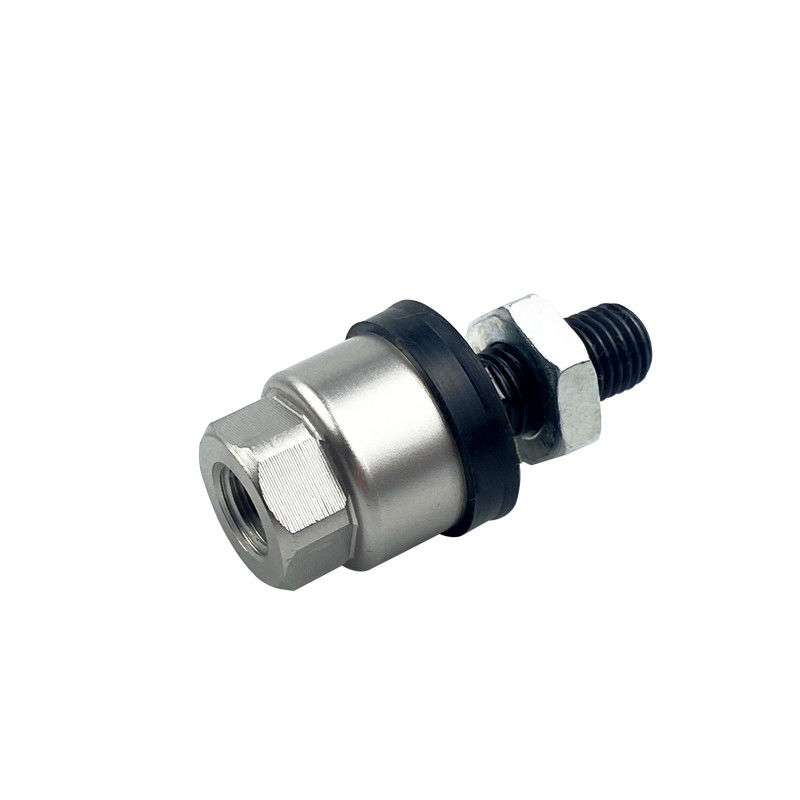

The main attributes of JC aluminum floating joints include their lightweight design, applicable cylinder size range, easy installation, and performance under different working conditions.
The JC aluminum floating joint is a product with a lightweight design that is mainly intended to reduce the lateral load of pneumatic cylinders. It is meant for cylinders of 20, 25, 32, 40, 50, and 63mm and can absorb the eccentricity of passive bodies and cylinders, as well as the insufficient accuracy of parallelism, in the process of installation. This makes installation much simpler and there is no need for axis consistency.
Additionally, the design can absorb the "center offset" of connected workpieces and play a role in buffering, reducing vibration, and improving the dynamic performance of the shaft system in high-speed heavy-duty power transmission.
Regarding the installation process, the installation dimensions of JC aluminum floating joints are interchangeable with existing products such as the JA series, making them effortless to install and use in various application scenarios. The construction and external dimension diagrams provide detailed installation guidance to ensure that users can correctly install and use the product.
Lastly, JC aluminum floating joints are suitable for extreme temperature environments, with a working temperature range of -5 ℃ to 100 ℃, making them ideal for industrial applications with special working condition requirements.
Technical Parameters:
| Cylinder Used |
Air Cylinder |
| Specifications |
M12x 1.75 Nominal Size |
| Brand |
SMC® |
| Product Type |
Simple |
| Type 1 |
Floating Joints |
| Series |
JA |
Applications:
The SMC Solenoid Valves series, JA, are simple in design and have a nominal size of M10 X 1.5. These valves are used in conjunction with air cylinders to control the flow of air, making them ideal for a variety of applications. Here are some of the product application occasions and scenarios for the SMC Solenoid Valves:
- Machine tools
- Pneumatic systems
- Automotive industry
- Food processing
- Pharmaceutical industry
- Packaging industry
The SMC Solenoid Valves are perfect for use in machine tools, where precise control of air flow is essential. They are also ideal for use in pneumatic systems, where they can be used to control the flow of air in a variety of different applications. In the automotive industry, these valves can be used in a range of different applications, including fuel injection systems and air conditioning systems. In the food processing industry, the SMC Solenoid Valves are ideal for controlling the flow of air in food processing and packaging equipment. They are also a great choice for use in the pharmaceutical industry, where precision control of air flow is essential. Finally, these valves are widely used in the packaging industry, where they can be used to control the flow of air in a variety of different packaging machines.
One of the unique features of the SMC Solenoid Valves is the SMC aluminum floating joint. This floating joint allows for smooth and precise movement of the valve, ensuring that it functions correctly every time. The floating joint also helps to reduce wear and tear on the valve, ensuring that it lasts for years to come. When it comes to Floating Joints, SMC Floating Joints are the best in the market.
Packing and Shipping:
Product Packaging:
- Each SMC Solenoid Valve will be individually packed in a sturdy cardboard box with bubble wrap for protection.
- The box will have the product name, model number, and quantity clearly printed on it.
Shipping:
- Shipping will be done through a reliable courier service.
- The package will be shipped within 2 business days after the order is confirmed.
- The shipping cost will be calculated based on the weight and destination of the package.
- The customer will receive a tracking number to track the shipment online.
