Product Description:

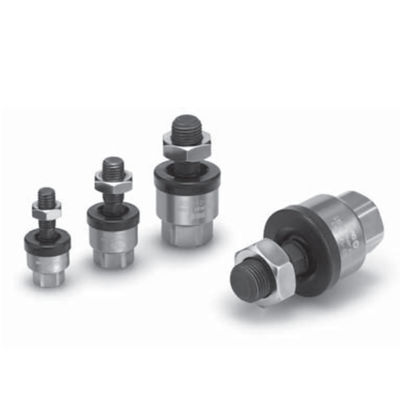

The key features of JC aluminum floating joints include their lightweight design, applicable cylinder size range, easy installation, and reliable performance under different working conditions.

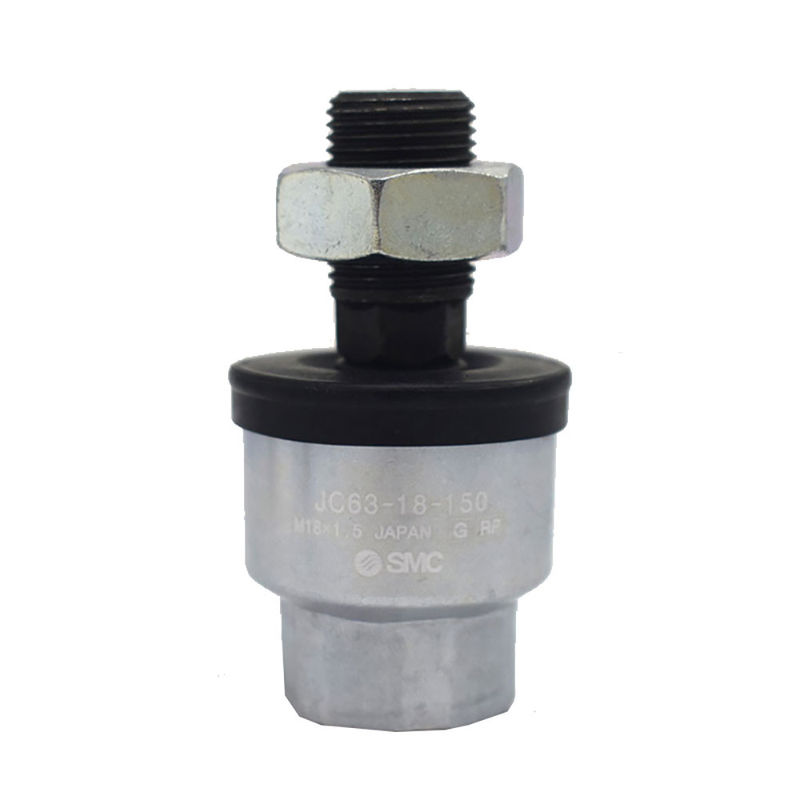

The JC aluminum floating joint is a lightweight product designed to reduce the lateral load of pneumatic cylinders. It can be used with cylinders of different sizes, including 20, 25, 32, 40, 50, and 63mm. With its ability to absorb the eccentricity of passive bodies and cylinders, as well as the insufficient parallelism, this product simplifies the installation process without the need for axis consistency.
Additionally, JC aluminum floating joints can also absorb the "center offset" connected to the workpiece, providing buffering and reducing vibration. This improves the dynamic performance of the shaft system for high-speed heavy-duty power transmission.
The installation dimensions of JC aluminum floating joints are interchangeable with existing products, such as the JA series, making them easy to install and use in various application scenarios. Detailed construction and external dimension diagrams are provided to ensure users can correctly install and use the product.
Lastly, JC aluminum floating joints can perform well in high-temperature environments, with a working temperature range of -5 ℃ to 100 ℃. This makes them ideal for use in extreme temperature environments and meets special working condition requirements. These characteristics make JC aluminum floating joints applicable in a wide range of industrial applications.
Technical Parameters:
| Product Type |
Simple |
| Specifications |
M16x2 Nominal Size |
| Series |
JA |
| Brand |
SMC® |
| Cylinder Used |
Air Cylinder |
| Type 1 |
Floating Joints |
For this product, SMC offers the JC series aluminum floating joint.
Applications:
The SMC Solenoid Valves have a nominal size of M10 X 1.5 and are typically used with air cylinders. They are simple in design and come in different types for different applications. One popular type of SMC Solenoid Valve is the Floating Joint, which is part of the JC series of aluminum floating joints. These joints are designed to allow the piston rod of the cylinder to float, which helps to prevent damage to the cylinder and extends its lifespan.
The SMC aluminum floating joint can be used in a wide variety of applications. They are often used in automation systems to help prevent damage to the cylinder due to misalignment or other issues. They can also be used in pneumatic systems to allow for smooth operation and prevent damage to the system. The SMC JC series aluminum floating joint is a popular choice for many different applications and scenarios due to its reliability and versatility.
If you are looking for a reliable and high-quality solenoid valve for your application, the SMC Solenoid Valve is an excellent choice. With its CE certification, high supply ability, and different types to choose from, you can be sure that you are getting a product that will meet your needs. Contact SMC today to learn more about their solenoid valve products and to place an order.
Packing and Shipping:
Product Packaging:
- Each solenoid valve is individually packed in a protective plastic bag.
- All solenoid valves are then placed in a sturdy cardboard box.
- The box is sealed with strong packaging tape to prevent damage during transit.
Shipping:
- We ship our products worldwide using reliable and trusted courier services.
- All orders are processed and shipped within 1-2 business days.
- Shipping costs are calculated based on the weight and destination of the package.
- Customers can track their package using the provided tracking number.
- In case of any damage during shipping, please contact our customer service team for assistance.
