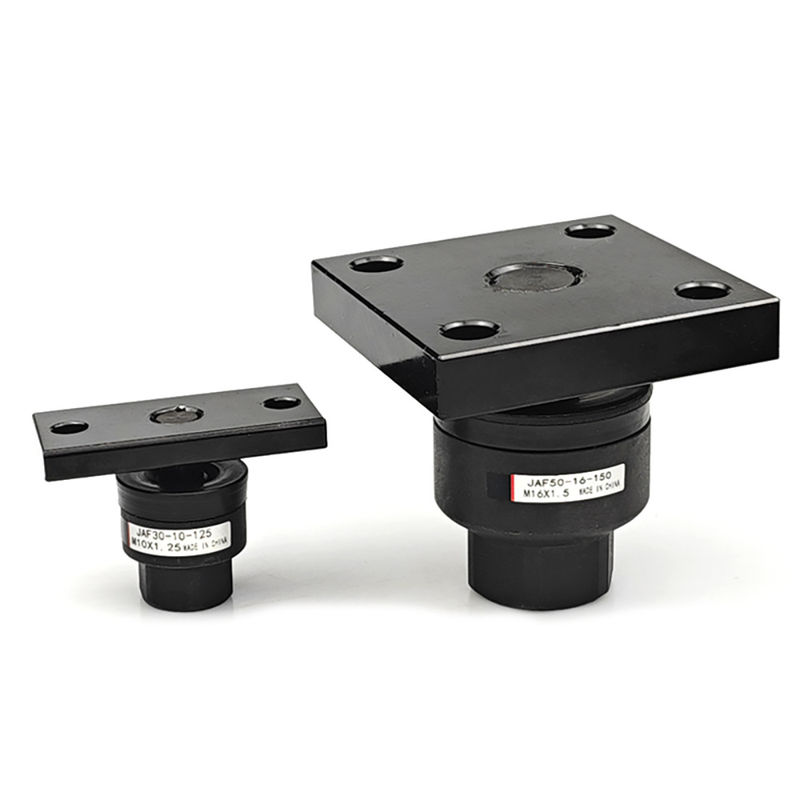

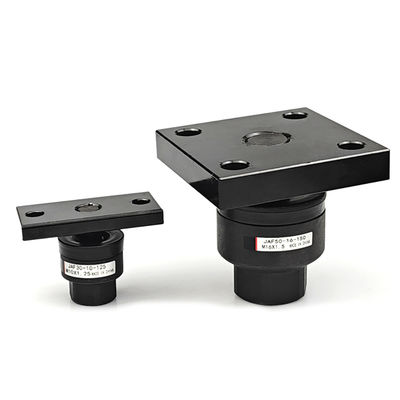

JAF100-24-300 SMC Floating Joints Type 1 For Industrial Applications

Product Description:

The JAF series floating joints are designed with various features to serve different purposes. The main properties of these joints are as follows:

Design Features

• Insufficient Absorption of Eccentricity and Parallelism: Unlike other joints, JAF series floating joints can absorb the eccentricity and insufficient parallelism accuracy between the cylinder and the passive body without axis alignment. Thus, they help reduce the demand for high-precision machining.
• Flange Type Installation: These joints have a flange type installation form that is designed to make them suitable for cylinders with different diameters. They provide stable connection and convenient installation.
• High Pressure Resistance Performance: They are suitable for use with cylinders and hydraulic cylinders that have a cylinder pressure up to 1MPa and hydraulic cylinder pressure up to 3.5MPa.
• Excellent Sealing Material: These joints use resin as the main material, which has good chemical and heat resistance.
• Large Swing Angle: These joints allow for a certain amount of eccentricity and swing angle, which provides greater flexibility and adaptability.

Technical Specifications

• Connection Diameter: Rc1/4 or M27X1.5, etc. They are designed to suit various pipe diameter requirements.
• Using Fluids: They are designed to work with compressed air and water to meet various fluid control needs.
• Pressure Range: They have a pressure range of 0.05-1 MPa, which makes them suitable for various working pressures.
• Environmental Temperature and Fluid Temperature Range: These joints are designed to work in environments with temperatures ranging from -5 to 60 ℃.
• Maximum Tensile Strength: For example, the maximum tensile strength of JAF100-27-150 is 28000 N².
• Allowable Eccentricity and Swing Angle: In general, these joints have a swing angle of ± 5 °, with a certain installation error of 12.
• Dust Cover Material: They have synthetic rubber dust cover, which provides good sealing and dust-proof performance.

Technical Parameters:

SMC aluminum floating joint, SMC aluminum floating joint, SMC JAF series aluminum floating joint

Applications:

Application Scenarios:

The couplings are designed to connect cylinders and hydraulic cylinders in situations where eccentricity and parallelism cannot be absorbed by other means. They are especially suitable for applications that require a high level of precision and care.

The connectors are widely used in various fields such as automated machinery, connection of robotic arms, material handling systems, precision positioning equipment, and assembly line automation. Their versatility makes them ideal for many different applications.

Their robust construction and ability to handle large amounts of force make them a popular choice for many industries. They are also equipped with precision manufacturing techniques that help ensure optimal performance, even in challenging environments.
