Product Description:
The JAF series floating joints are designed with several key features:
Design Features:
- Ability to absorb eccentricity and insufficient parallelism, eliminating the need for axis alignment and reducing machining demands.
- Flange type installation offers stable connection and easy installation on cylinders of various diameters.
- High performance under pressure, suited for hydraulic cylinders with up to 3.5MPa pressure and cylinders with up to 1MPa pressure.
- Excellent sealing material made of resin, providing good chemical and heat resistance.
- Large swing angle for increased adaptability and flexibility.
Technical Specifications:
- Connection diameter: Rc1/4 or M27X1.5, adaptable for various pipe diameters.
- Fluid compatibility: compressed air and water for various fluid control needs.
- Pressure range: 0.05-1 MPa, suitable for various working pressures.
- Temperature range: -5 to 60 ℃, adaptable for various working environments.
- Maximum tensile strength: For example, the maximum tensile strength of JAF100-27-150 is 28000 N2.
- Allowable eccentricity and swing angle: generally up to ± 5 °, with a possible installation error of 12.
- Dust cover material: synthetic rubber for good sealing and dust-proof performance.
Technical Parameters:
| Attribute |
Value |
| Cylinder Used |
Air Cylinder |
| Product Type |
Simple |

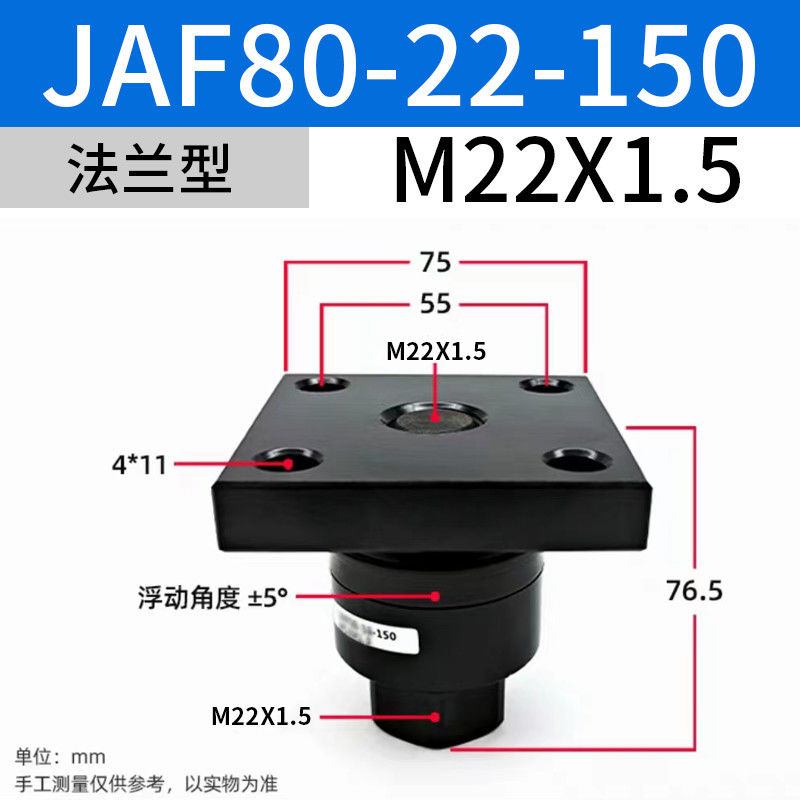

| Specifications |
M22x1.5 Nominal Size |
| Series |
JAF |
| Brand |
SMC® |
| Type 1 |
Floating Joints |
SMC JAF series aluminum floating joint is a type of SMC aluminum floating joint. It is used for air cylinder applications and comes in a simple design with M10 X 1.5 nominal size. It belongs to the JAF series by SMC® and has a type 1 floating joint.
Applications:
These days, there are many application scenarios that require connections between cylinders and hydraulic cylinders. In particular, these connections are needed when eccentricity and parallelism cannot be effectively absorbed. Luckily, there is a solution for this common problem.
The use of custom connectors has become incredibly popular in this field, especially in areas that require precision and accuracy. These connectors are widely used in automated machinery, robotic arm connections, material handling systems, precision positioning equipment, and assembly line automation. Thanks to their versatility and reliability, custom connectors are an essential part of many industries today.
Whether you are building a new system from scratch or considering an upgrade to an existing one, custom connectors can provide you with the support and connectivity you need for a wide variety of applications. From simple connections to complex systems, these connectors are designed with the needs of your particular industry in mind, and can be customized to meet your specific requirements.
Packing and Shipping:
Product Packaging:
- Each SMC Solenoid Valve is securely packaged in a protective foam-lined box.
- The box is then placed in a sturdy outer cardboard box for added protection during shipping.
Shipping:
- Orders are processed within 1-2 business days.
- Shipping is available to most countries worldwide.
- Standard shipping usually takes 5-7 business days.
- Expedited shipping options are available at an additional cost.
