Product Description:
The Main Properties of JAF Series Floating Joints
The JAF series floating joint is a type of connector designed to absorb eccentricity and insufficient parallelism accuracy between the cylinder and the passive body. This reduces the need for axis alignment and high-precision machining. The main properties of JAF series floating joints include the following aspects:
Design Features
- Insufficient Absorption of Eccentricity and Parallelism: The JAF series floating joint can efficiently absorb eccentricity and insufficient parallelism accuracy without the need for axis alignment, reducing the demand for high-precision machining.
- Flange Type Installation: JAF series floating joint adopts a flange type installation form, suitable for cylinders with different diameters, providing stable connection and convenient installation.
- High Pressure Resistance Performance: JAF series floating joint is suitable for cylinders and hydraulic cylinders, with cylinder pressure up to 1 MPa and hydraulic cylinder pressure up to 3.5 MPa.
- Excellent Sealing Material: The main material used for JAF series floating joint is resin, which has good chemical and heat resistance.
- Large Swing Angle: JAF series floating joint allows for a certain amount of eccentricity and swing angle, providing greater flexibility and adaptability.
Technical Specifications
- Connection Diameter: JAF series floating joint connection diameter varies between Rc1/4 or M27X1.5, making it suitable for various pipe diameter requirements.
- Using Fluids: JAF series floating joint is suitable for compressed air and water to meet various fluid control needs.
- Pressure Range: JAF series floating joint is suitable for various working pressures, ranging from 0.05 to 1 MPa.
- Environmental Temperature and Fluid Temperature Range: JAF series floating joint is suitable for various working environments, with a temperature range of -5 to 60 ℃.
- Maximum Tensile Strength: For example, the maximum tensile strength of JAF100-27-150 is 28000 N ².
- Allowable Eccentricity and Swing Angle: JAF series floating joint typically allows for a swing angle of ± 5 °, with a certain installation error of 12.
- Dust Cover Material: The dust cover material for JAF series floating joint is synthetic rubber, providing good sealing and dust-proof performance.
Technical Parameters:
| Brand: |
SMC® |
| Specifications: |

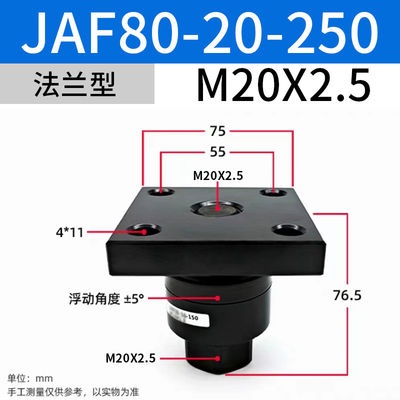

M20x2.5 Nominal Size |
| Product Type: |
Simple |
| Cylinder Used: |
Air Cylinder |
| Type 1: |
Floating Joints |
| Series: |
JAF |
SMC aluminum floating joint is a part of the SMC JAF series aluminum floating joint.
Applications:
Application Scenarios:
The Flexible Shaft Coupling is an ideal solution for connecting cylinders and hydraulic cylinders. It is especially useful in situations where eccentricity and parallelism are insufficient and need to be absorbed. The coupling is designed to provide flexibility in different directions, which facilitates smooth and reliable drives.
The Flexible Shaft Coupling is widely used in various industries, such as automated machinery, connection of robotic arms, material handling systems, precision positioning equipment, and assembly line automation. The coupling is versatile and can be applied to a range of applications that require precision and accuracy.
This coupling provides a high degree of flexibility, which allows it to operate successfully even under harsh conditions. This makes it ideal for use in applications where vibration and shock absorption are critical. The ability to handle torque and accommodate misalignment enhances the performance of the Flexible Shaft Coupling, ensuring smooth operation and a longer lifespan.
Packing and Shipping:
Product Packaging:
- All SMC Solenoid Valves are packaged securely in a cardboard box with foam inserts to protect the product during transportation.
- The package also includes an instruction manual and a warranty card for the product.
Shipping:
- Orders for SMC Solenoid Valves are processed within 24 hours of receipt.
- All orders are shipped via UPS or FedEx ground delivery, unless expedited shipping is requested.
- Shipping costs are calculated based on the weight and destination of the package.
- Customers will receive a tracking number via email once their order has been shipped.
