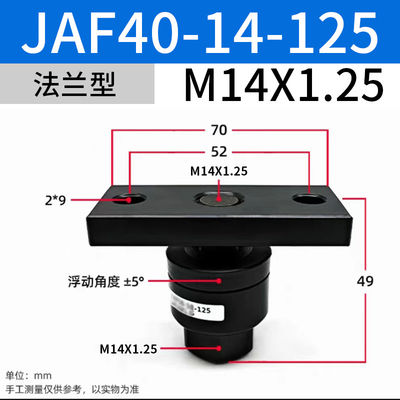

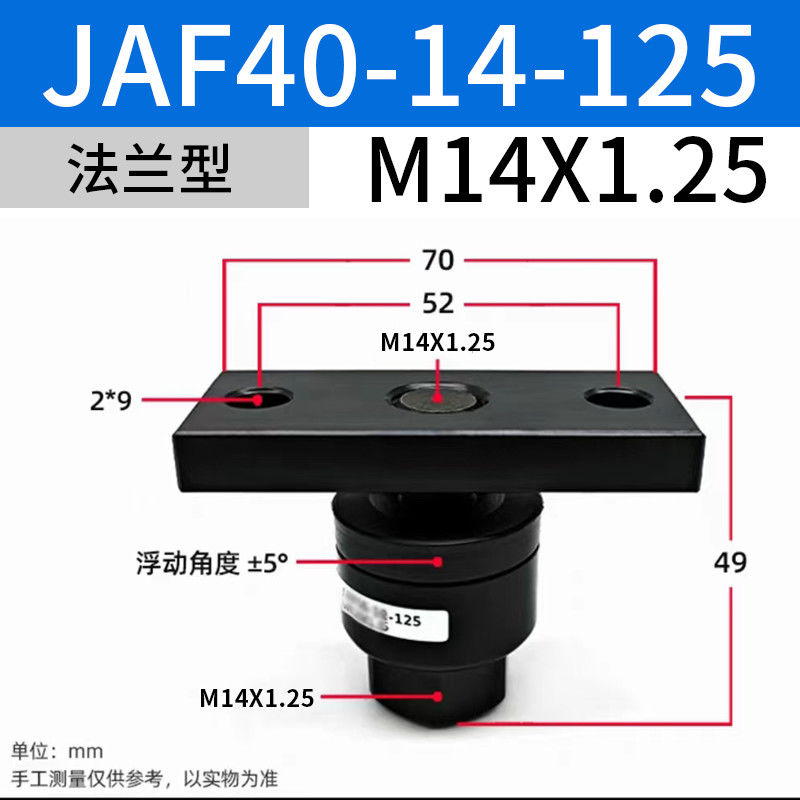

Name: JAF40-14-125 With Flange Simple And Long-Lasting Air Cylinder Component
Brand: YW DKE TRADING COMPANY
SKU: JAF40-14-125
Availability: InStock

Home Products SMC Solenoid Valves

JAF40-14-125 With Flange Simple And Long-Lasting Air Cylinder Component

Product Details:

Place of Origin:	China
Brand Name:	SMC
Certification:	CE
Model Number:	JAF40-14-125

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton /As The Clients Require
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000 pieces/1Month

Contact Now

Detailed Product Description

Product Type:	Simple	Brand:	SMC®
Cylinder Used:	Air Cylinder	Type 1:	Floating Joints
Series:	JAF	Specifications:	M10 X 1.5 Nominal Size
Highlight:	JAF40-14-125 , Long-Lasting Air Cylinder Component , Simple Air Cylinder Component

Product Description:

Design Features:

The JAF series floating joint is designed to absorb eccentricity and parallelism errors, reducing the need for high-precision machining.
A flange type installation provides a stable connection and convenience for cylinders of different diameters.
The JAF series is suitable for use with cylinders and hydraulic cylinders with a maximum pressure of 1MPa and 3.5MPa, respectively.
Main material is resin, offering excellent chemical and heat resistance.
The JAF series allows for a large swing angle, providing greater flexibility.

Technical Specifications:

Connection diameter options include Rc1/4 or M27X1.5 to meet various pipe diameter requirements.
Can be used with compressed air and water to meet fluid control needs.
Pressure range of 0.05-1 MPa makes it suitable for various working pressures.
Suitable for working environments that range from -5 to 60℃ in temperature.
Maximum tensile strength, for example, JAF100-27-150 has a strength of 28000 N ².
The JAF series allows for a certain amount of eccentricity and swing angle with an installation error of 12. Generally, the allowable range for eccentricity and swing angle is ± 5 °.
The dust cover material is synthetic rubber, providing good sealing and dust-proof performance.

Technical Parameters:

Series	JAF
Specifications	M10 X 1.5 Nominal Size
Brand	SMC®
Cylinder Used	Air Cylinder
Type 1	Floating Joints
Product Type	Simple

Applications:

Application Scenarios:

These flexible couplings are designed to connect cylinders and hydraulic cylinders, especially in situations where eccentricity and parallelism are insufficient to be absorbed. Couplings like these are perfect to be used in automated machinery, material handling systems, and in the connection of robotic arms. They are ideal for precision positioning equipment and assembly line automation where accuracy and smooth operation are required.

Packing and Shipping:

Product Packaging: Each SMC Solenoid Valve is carefully packed in a sturdy cardboard box with ample cushioning material to prevent damage during transportation. The product is labeled with its specifications and model number for easy identification. Shipping: We offer both domestic and international shipping for the SMC Solenoid Valves. Our shipping partners ensure timely delivery and safe handling of the product. Shipping costs may vary depending on the destination and quantity ordered. Please contact us for more details on shipping options and rates.
