Product Description:
Design Features:
The JAF series floating joint solves the problem of insufficient absorption of eccentricity and parallelism accuracy between the cylinder and passive body. It can absorb eccentricity and insufficient parallelism without the need for axis alignment, which reduces the demand for high-precision machining.
It has a flange type installation form that is suitable for cylinders with different diameters and provides stable connection and convenient installation
This floating joint has high pressure resistance performance, making it suitable for cylinders and hydraulic cylinders with a maximum cylinder pressure of 1MPa and 3.5MPa respectively.
The main material of this product is resin, which has excellent chemical and heat resistance property, ensuring durability and longevity.
With a large swing angle and the ability to handle a certain amount of eccentricity and swing angle, providing greater flexibility and adaptability.
Technical Specifications:
- Connection Diameter: Rc1/4 or M27X1.5, etc., suitable for various pipe diameter requirements.
- Using fluids: compressed air and water to meet various fluid control needs.
- Pressure Range: 0.05-1 MPa, suitable for various working pressures.
- Environmental Temperature and Fluid Temperature Range: -5 to 60 ℃, suitable for various working environments.

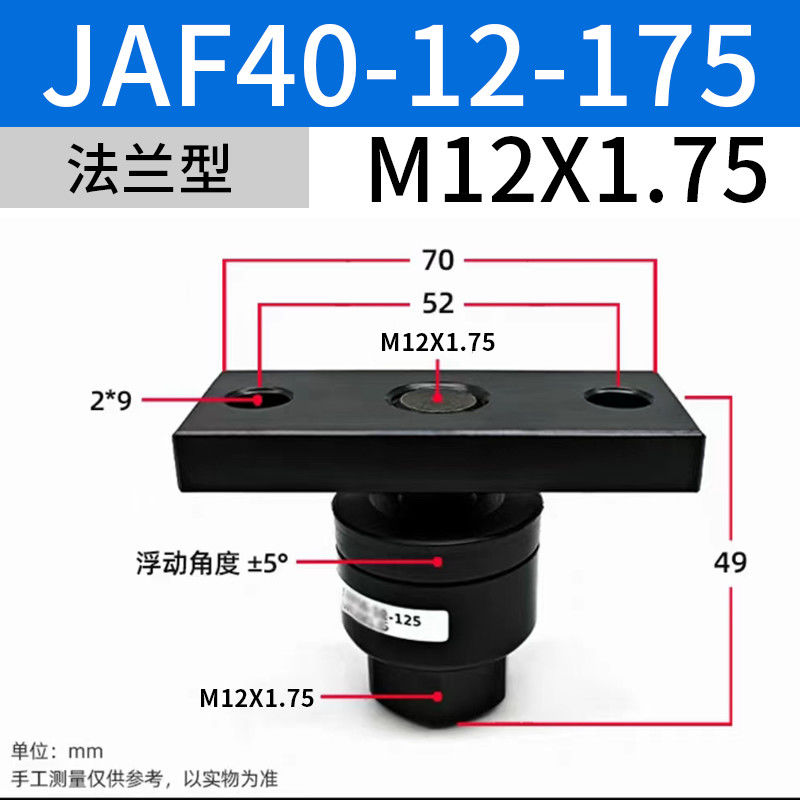

- Maximum Tensile Strength: For example, the maximum tensile strength of JAF100-27-150 is 28000 N ².
- Allowable Eccentricity and Swing Angle: Generally ± 5 °, with a certain installation error of 12.
- Dust Cover Material: synthetic rubber, providing good sealing and dust-proof performance.
Technical Parameters:
| Series |
JAF |
| Type 1 |
Floating Joints |
| Product Type |
Simple |
| Cylinder Used |
Air Cylinder |
| Specifications |
M12x 1.75 Nominal Size |
| Brand |
SMC® |
Applications:
Application Scenarios:
This product is designed for connecting cylinders and hydraulic cylinders. It is especially useful in situations where eccentricity and parallelism can't be absorbed. It offers a reliable connection that can withstand harsh operating conditions.
This product is commonly used in the fields of automated machinery, robotic arm connections, material handling systems, precision positioning equipment, and assembly line automation. Its high precision and durability make it an essential component in these demanding applications.
Suitable Applications:
The reliable connectivity offered by this product makes it suitable for use in various hydraulic and pneumatic applications. It is particularly useful in connecting cylinders and hydraulic cylinders where eccentricity and parallelism could pose a problem.
Wide Range of Uses:
This product is widely used in the following fields:
- Automated machinery
- Robotic arm connections
- Material handling systems
- Precision positioning equipment
- Assembly line automation
Due to its high precision, durability, and dependability, this product is an essential component in these industries that demand long-lasting, high-performance connections.
Packing and Shipping:
Product Packaging:
- The SMC solenoid valves are securely packaged in a cardboard box.
- The valves are protected by foam padding to prevent damage during transit.
- The product packaging includes a user manual and installation guide.
Shipping:
- Our standard shipping method is through trusted courier services.
- We ensure that the products are shipped within 24-48 hours of order confirmation.
- The shipping cost will be calculated based on the delivery location and weight of the package.
- Customers will receive a tracking number to monitor the progress of their shipment.
