Product Description:
Design Features
The JAF series floating joint has unique design features, including:
- Absorption of eccentricity and parallelism: The joint can absorb eccentricity and insufficient parallelism accuracy between the cylinder and the passive body, reducing the demand for high-precision machining.
- Flange type installation: It is suitable for cylinders with different diameters and provides stable connection and convenient installation.
- High pressure resistance performance: It works well with cylinders and hydraulic cylinders, able to withstand cylinder pressure of up to 1MPa and hydraulic cylinder pressure of up to 3.5MPa.
- Excellent sealing material: The main material is resin, which has good chemical and heat resistance.
- Large swing angle: It allows for a certain amount of eccentricity and swing angle, providing greater flexibility and adaptability.
Technical specifications
The JAF series floating joint has the following technical specifications:
- Connection diameter: Rc1/4 or M27X1.5, etc., suitable for various pipe diameter requirements.
- Using fluids: compressed air and water to meet various fluid control needs.
- Pressure range: 0.05-1 MPa, suitable for various working pressures.
- Environmental temperature and fluid temperature range: -5 to 60 ℃, suitable for various working environments.
- Maximum tensile strength: For example, the maximum tensile strength of JAF100-27-150 is 28000 N ².
- Allowable eccentricity and swing angle: generally ± 5 °, with a certain installation error of 12.
- Dust cover material: synthetic rubber, providing good sealing and dust-proof performance.
Technical Parameters:
| Product Type |
Simple |
| Series |
JAF |
| Type 1 |
Floating Joints |
| Specifications |

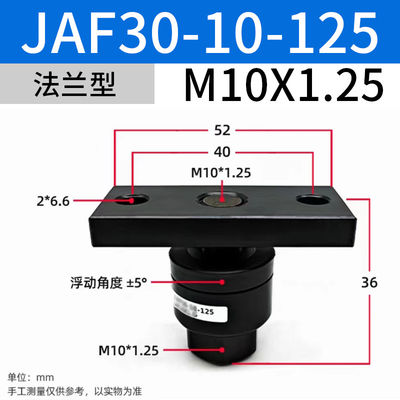

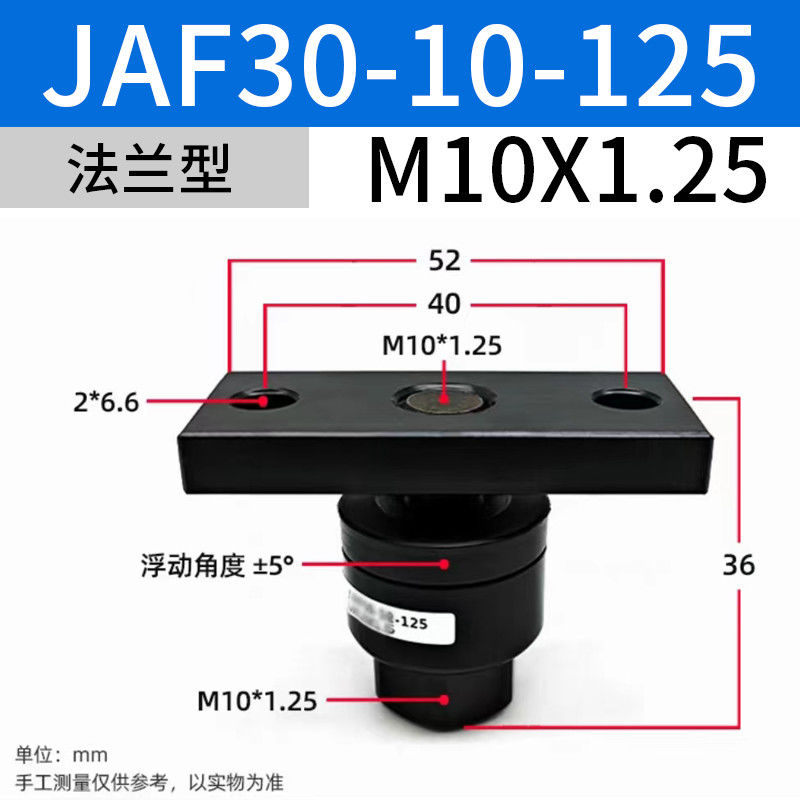

M10x 1.25 Nominal Size |
| Brand |
SMC® |
| Cylinder Used |
Air Cylinder |
Applications:
Application Scenarios:
The product is designed to be suitable for connecting cylinders and hydraulic cylinders in various industrial applications. It is an ideal solution for situations where eccentricity and parallelism are not sufficient for absorption. The product effectively compensates for any discrepancies, resulting in a reliable and secure connection.
The product has found wide acceptance in the industry and has been widely used in fields such as automated machinery, connection of robotic arms, material handling systems, precision positioning equipment, and assembly line automation. Its versatility, coupled with its rugged design, makes it suitable for use in different industrial applications.
The product is designed to provide a reliable and secure connection between cylinders and hydraulic cylinders in industrial settings. Its unique design allows it to cater to situations where eccentricity and parallelism issues occur, making it a perfect fit for industries where precision is critical.
The product's flexibility has led to its widespread acceptance in different industries that require automation machinery, robotic arm connections, material handling systems, precision positioning equipment, and assembly line automation. Its reliability and durability make it a wise investment for any business that values efficiency and productivity.
Packing and Shipping:
Product Packaging:
- Each SMC Solenoid Valve will be individually wrapped in plastic.
- All valves will be placed in a sturdy cardboard box.
- The box will be sealed with tape to prevent any damage during shipping.
- The box will also be labeled with the product name and quantity.
Shipping:
- We offer worldwide shipping for our SMC Solenoid Valves.
- All orders will be processed and shipped within 2 business days.
- We use trusted shipping carriers to ensure timely and safe delivery.
- Customers will receive a tracking number via email once their order has shipped.
