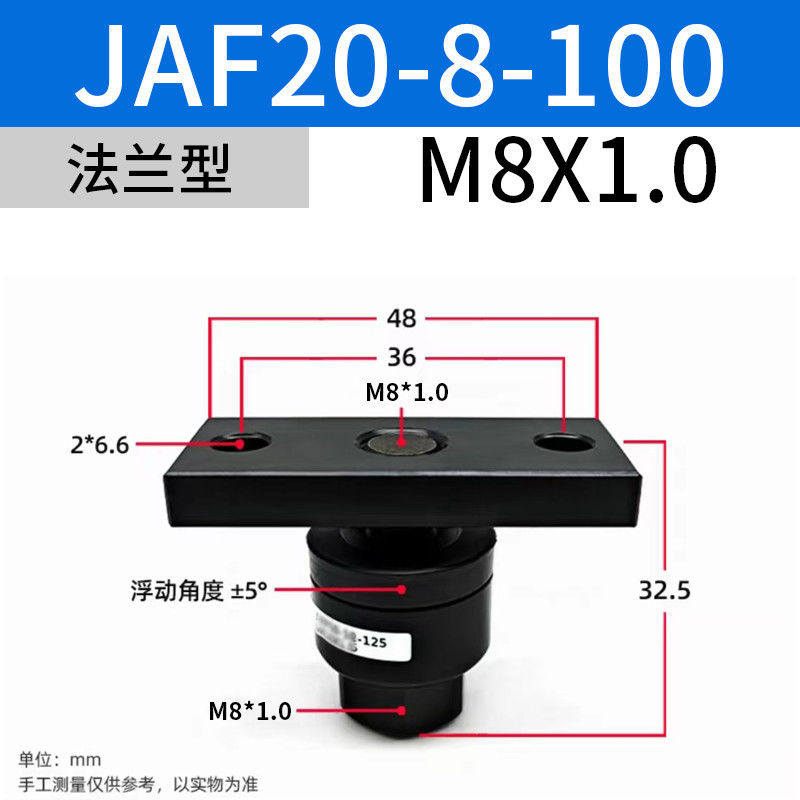

JAF20- 8-100 SMC JAF Series Aluminum Floating Joint For Seamless Integration In Machinery

JAF20- 8-100 SMC JAF Series Aluminum Floating Joint For Seamless Integration In Machinery

  • JAF20- 8-100 SMC JAF Series Aluminum Floating Joint For Seamless Integration In Machinery
JAF20- 8-100 SMC JAF Series Aluminum Floating Joint For Seamless Integration In Machinery
Product Details:
Place of Origin: China
Brand Name: SMC
Certification: CE
Model Number: JAF20- 8-100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton /As The Clients Require
Delivery Time: 1-7Work Days After Payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000 pieces/1Month
Contact Now
Detailed Product Description
Brand: SMC® Cylinder Used: Air Cylinder
Series: JAF Specifications: M8x 1 Nominal Size
Type 1: Floating Joints Product Type: Simple
Highlight:

Seamless Integration Aluminum Floating Joint

,

Machinery Aluminum Floating Joint

,

SMC JAF Series Aluminum Floating Joint

Product Description:

Design Features:

The JAF series floating joint boasts excellent design features including:

  • Absorption of eccentricity and insufficient parallelism
  • Flange type installation
  • High pressure resistance
  • Excellent sealing material
  • Large swing angle

The JAF series floating joint is specifically designed to absorb eccentricity and insufficient parallelism accuracy between the cylinder and the passive body. No axis alignment is needed, and it reduces the demand for high-precision machining. Additionally, the flange type installation provides a stable connection and convenient installation that is suitable for cylinders with different diameters. Moreover, this floating joint is highly pressure resistant, up to 1MPa for cylinders and 3.5MPa for hydraulic cylinders, making it ideal for various applications.

The JAF series also boasts excellent sealing properties made possible by its use of resin as the main material. Resin has good chemical and heat resistance, making the floating joint suitable for use with compressed air and water to meet various fluid control requirements. The large swing angle allows for a certain amount of eccentricity and swing angle, providing greater flexibility and adaptability during use.

Technical Specifications:

The JAF series floating joint has the following technical specifications:

  • Connection diameter: Rc1/4 or M27X1.5, etc., suitable for various pipe diameter requirements.
  • Using fluids: compressed air and water to meet various fluid control needs.
  • Pressure range: 0.05-1 MPa, suitable for various working pressures.
  • Environmental temperature and fluid temperature range: -5 to 60 ℃, suitable for various working environments.
  • Maximum tensile strength: For example, the maximum tensile strength of JAF100-27-150 is 28000 N ².
  • Allowable eccentricity and swing angle: generally ± 5°, with a certain installation error of 12.
  • Dust cover material: synthetic rubber, providing good sealing and dust-proof performance.


Technical Parameters:

Product Type Simple
Specifications M8x 1 Nominal Size
Type 1 Floating Joints
Brand SMC®
Cylinder Used Air Cylinder
Series JAF

SMC aluminum floating joint, SMC Floating Joints, SMC JAF series aluminum floating joint



Applications:

Application Scenarios:

This product is ideal for connecting cylinders and hydraulic cylinders in situations where there is insufficient eccentricity and parallelism to be absorbed. The product is widely used in automated machinery, connecting robotic arms, material handling systems, precision positioning equipment, and assembly line automation.

Uses:

  • Connecting cylinders and hydraulic cylinders
  • Suitable for situations where there is insufficient eccentricity and parallelism to be absorbed
  • Used in automated machinery
  • Connecting robotic arms
  • Material handling systems
  • Precision positioning equipment
  • Assembly line automation

Features:

  • Provides a secure and reliable connection between cylinders and hydraulic cylinders
  • Effectively absorbs eccentricity and parallelism
  • Protects and extends the lifespan of equipment
  • Structurally compact design, easy installation and maintenance
  • Wide range of application scenarios, suitable for various automated machinery and precision equipment applications


Packing and Shipping:

Product Packaging:

  • Each solenoid valve is individually packed in a cardboard box with foam inserts for protection during shipping.
  • The cardboard box is labeled with the SMC logo and product name for easy identification.
  • The boxes are then packed in larger cardboard boxes for shipping to customers.

Shipping:

  • Shipping will be arranged through reputable carriers such as FedEx, DHL or UPS.
  • Customers will receive a tracking number once the order has been shipped.
  • Shipping times will vary depending on the destination and shipping method chosen by the customer.
  • Customers are responsible for any additional customs fees or taxes that may apply to their order.
