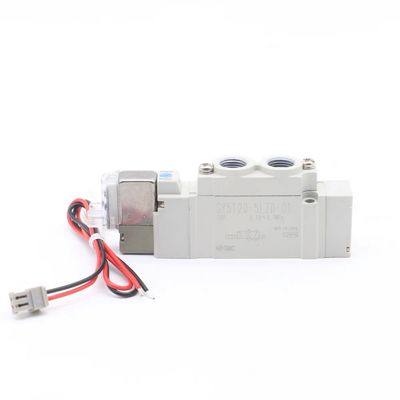

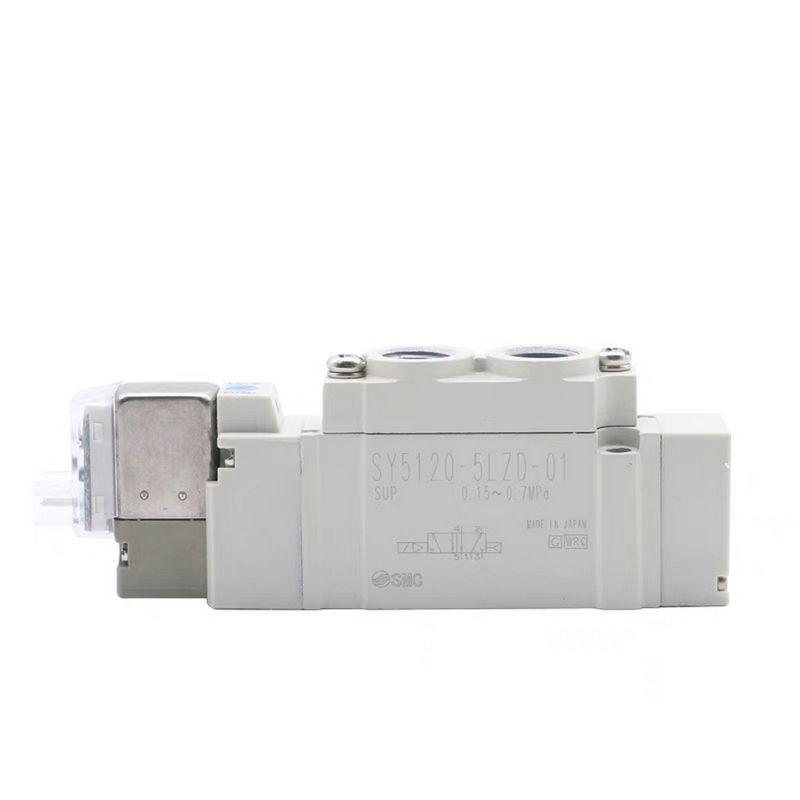

Solenoid Valve SY5120-5LZD-01 SMC2 Position Single DC24V Port Size 1/8 Thread Piping

Product Description:

The performance of valves has been significantly enhanced through the SY series, which presents economical solutions that are tailored to your specific requirements and needs. With a compact design, the series offers excellent flow capacity while consuming minimal power.

Available in two styles – body ported and base mounted – the SY series is suitable for various applications and can be used independently or mounted onto a manifold arrangement, providing greater flexibility to fit your needs.

Regardless of whether it is a commercial, manufacturing, or industrial operation, the SY series offers the ideal solution for valves, focusing on high flow rates and low power consumption.

Valve model	Type of actuation		Port size		Flow rate characteristics						Weight (g)
			1, 5, 3 (P, EA, EB)	4, 2 (A, B)	1→4/2 (P→A/B)			4/2→5/3 (A/B→EA/EB)			Gro- mmet	L/M plug connector	DIN terminal	W M8 connector
					C (dm3/ (s·bar) )	b	Cv	C (dm3/ (s·bar) )	b	Cv
SY5□20 -□-01	2 position	Single	18	18	1.9	0.35	0.49	2.4	0.39	0.61	70	72	93	76
		Double									88	93	135	101
	3 position	Closed center			1.7	0.43	0.45	1.8	0.35	0.46	93	98	140	106
		Exhaust center			1.5	0.44	0.41	2.5 (1.5)	0.32 (0.43)	0.59 (0.40)
		Pressure center			2.2 (0.91)	0.46 (0.58)	0.61 (0.28)	1.8	0.38	0.46
SY5□20 -□-C4	2 position	Single		C4 touch fitting	0.75	0.43	0.20	0.85	0.64	0.30	94	96	117	100
		Double									111	117	159	125
	3 position	Closed center			0.74	0.40	0.19	0.84	0.57	0.28	117	122	164	130
		Exhaust center			0.75	0.36	0.19	0.84 (0.84)	0.64 (0.53)	0.30 (0.27)
		Pressure center			0.78 (0.71)	0.44 (0.37)	0.21 (0.18)	0.84	0.57	0.27

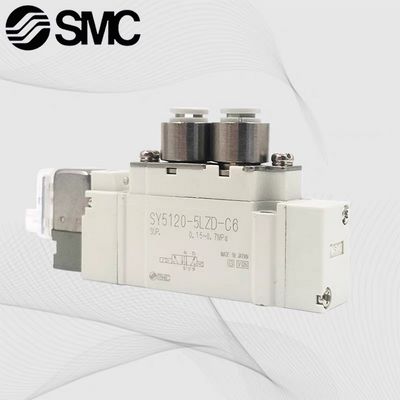

SY5□20 -□-C6	2 position	Single		C6 One- touch fitting for ø6	1.5	0.33	0.33	2.0	0.37	0.52	88	91	112	95
		Double									106	111	153	119
	3 position	Closed center			1.3	0.31	0.33	1.6	0.32	0.39	111	116	158	124
		Exhaust center			1.3	0.33	0.33	1.8 (1.4)	0.35 (0.37)	0.44 (0.35)
		Pressure center			1.7 (0.80)	0.31 (0.47)	0.42 (0.23)	1.7	0.33	0.44
SY5□20 -□-C8	2 position	Single		C8 One- touch fitting for ø8	1.9	0.21	0.45	2.3	0.29	0.57	80	82	103	86
		Double									98	103	145	111
	3 position	Closed center			1.6	0.29	0.39	1.7	0.38	0.46	103	108	150	116
		Exhaust center			1.4	0.38	0.39	2.0 (1.5)	0.37 (0.41)	0.52 (0.43)
		Pressure center			2.2 (1.6)	0.32 (0.44)	0.56 (0.44)	1.8	0.41	0.50

Applications:

SMC Solenoid Valves are suitable for a wide range of fluid control applications, especially those that require quick and precise control of air flow. They are ideal for use in pneumatic systems, HVAC systems, water treatment plants, and other industrial applications that require reliable and efficient flow control.

SMC Solenoid Valves are designed to operate under various ambient and fluid temperatures. They can operate in temperatures ranging from –10 to 50 degrees Celsius, making them suitable for use in a wide range of environments. They are also dust-proof, ensuring they remain functional even in dusty environments.

One of the key advantages of SMC Solenoid Valves is the fact that they require no lubrication. This makes them low-maintenance and easy to use, reducing the need for frequent maintenance and minimizing downtime. They are also designed to work with air as the fluid medium, making them cost-effective and efficient.

SMC Solenoid Valves are versatile and can be used in a wide range of occasions and scenarios, including:

• Industrial automation systems
• Pneumatic systems
• Water treatment plants
• Medical equipment
• HVAC systems
• Food processing equipment

SMC Solenoid Valves are available in different packaging options, including cartons and customized packaging as per the client's requirements. The delivery time for SMC Solenoid Valves ranges between 1 and 7 workdays after payment, and clients can pay using T/T, Western Union, or PayPal. The minimum order quantity for SMC Solenoid Valves is one, and the price is negotiable. SMC Solenoid Valves have a supply capacity of 5000 pieces per month, ensuring that they are readily available when needed.

Overall, SMC Solenoid Valves are a reliable and efficient solution for all your fluid control needs. From their high-quality construction to their versatility and low-maintenance design, these electromagnetic valves are the ideal choice for anyone looking for top-of-the-line electron magnetic valves.

Support and Services:

SMC Solenoid Valves are designed for high precision, durability, and reliability in various industries. Our technical support team is dedicated to providing you with the best solutions for your specific application needs. We offer installation guidance, troubleshooting assistance, and product repair services to ensure your SMC Solenoid Valves operate at optimal performance. Additionally, our online resources provide you with access to technical documentation, product specifications, and CAD drawings. Trust SMC to be your reliable partner for all your solenoid valve needs.

Packing and Shipping:

Product Packaging:

• Each solenoid valve is individually packaged in a cardboard box with foam padding to prevent damage during transit.
• The boxes are then packed in a larger cardboard box with additional foam padding to ensure safe transportation.

Shipping:

• Shipping is available worldwide.
• Orders are typically processed and shipped within 1-2 business days.
• We offer a variety of shipping options, including standard and express delivery.
• Shipping costs are calculated based on the weight and destination of the package.
• Customers will receive a tracking number once their order has shipped.
