YW DKE TRADING COMPANY
Place of Origin: | China |
Brand Name: | SMC |
Certification: | CE |

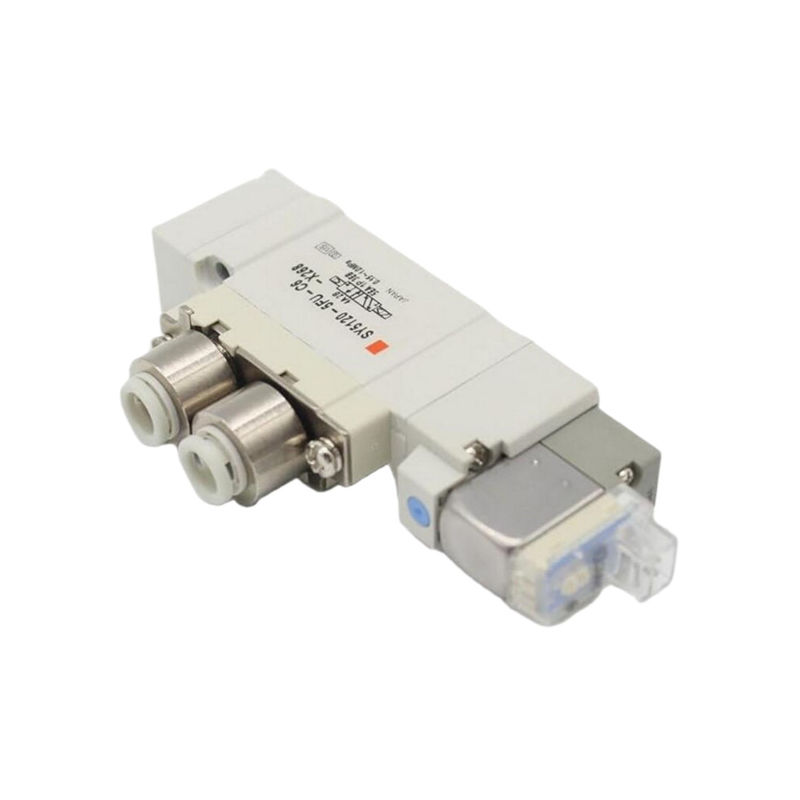

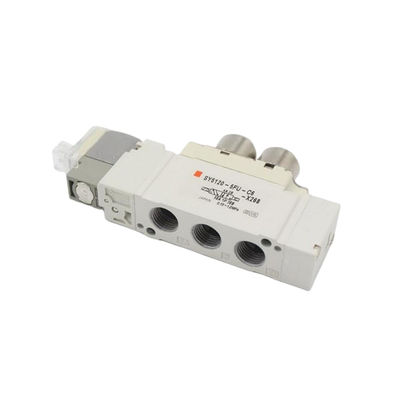

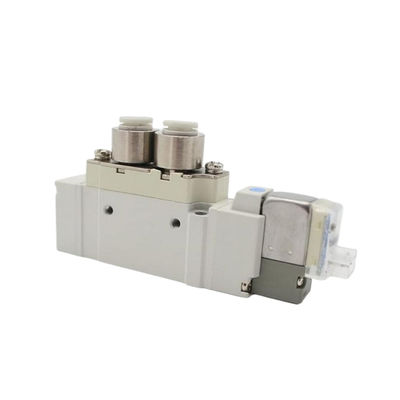

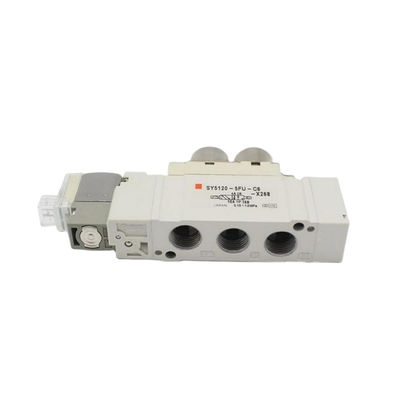

Model Number: | SY5120-5LZD-C4 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiation |
Packaging Details: | Carton /As The Clients Require |
Delivery Time: | 1-7Work Days After Payment |
Payment Terms: | T/T, Western Union,Paypal |
Supply Ability: | 5000 pieces/1Month |
Lubrication: | Not Required | Brand: | SMC |
---|---|---|---|
Enclosure: | Dust Proof | Mounting Orientation: | Unrestricted |
Ambient And Fluid Temperature (°C): | –10 To 50 (No Freezing) | Fluid: | Air |
Highlight: | 2 Position SMC Solenoid Valve,DC24V SMC Solenoid Valve,One-touch fitting SMC Solenoid Valve |
The Series SY offers cost-effective solutions that meet your unique needs and requirements by significantly improving valve performance. Its compact design provides a high flow capacity while consuming low power.
There are two styles available for the SY series – body ported and base mounted – making it suitable for various applications. You can choose to use it individually or mount it into a manifold arrangement, which provides greater flexibility to cater to your specific needs.
Whether your operation is commercial, manufacturing, or industrial, the Series SY presents the ideal valve solution. It focuses on a high flow rate and low power consumption, providing excellent performance in any scenario.
Valve model |
Type of actuation |
Port size | Flow rate characteristics | Weight (g) | ||||||||||
1, 5, 3 (P, EA, EB) |
4, 2 (A, B) |
1→4/2 (P→A/B) | 4/2→5/3 (A/B→EA/EB) | Gro- mmet |
L/M plug connector |
DIN terminal |
W M8 connector |
|||||||
C (dm3/ (s·bar) ) |
b | Cv | C (dm3/ (s·bar) ) |
b | Cv | |||||||||
SY5□20 -□-01 |
2 position |
Single | ![]() ![]() |
18 | 1.9 | 0.35 | 0.49 | 2.4 | 0.39 | 0.61 | 70 | 72 | 93 | 76 |
Double | 88 | 93 | 135 | 101 | ||||||||||
3 position |
Closed center |
1.7 | 0.43 | 0.45 | 1.8 | 0.35 | 0.46 | 93 | 98 | 140 | 106 | |||
Exhaust center |
1.5 | 0.44 | 0.41 | 2.5 (1.5) |
0.32 (0.43) |
0.59 (0.40) |
||||||||
Pressure center |
2.2 (0.91) |
0.46 (0.58) |
0.61 (0.28) |
1.8 | 0.38 | 0.46 | ||||||||
SY5□20 -□-C4 |
2 position |
Single | ![]() ![]() ![]() touch fitting |
0.75 | 0.43 | 0.20 | 0.85 | 0.64 | 0.30 | 94 | 96 | 117 | 100 | |
Double | 111 | 117 | 159 | 125 | ||||||||||
3 position |
Closed center |
0.74 | 0.40 | 0.19 | 0.84 | 0.57 | 0.28 | 117 | 122 | 164 | 130 | |||
Exhaust center |
0.75 | 0.36 | 0.19 | 0.84 (0.84) |
0.64 (0.53) |
0.30 (0.27) |
||||||||
Pressure center |
0.78 (0.71) |
0.44 (0.37) |
0.21 (0.18) |
0.84 | 0.57 | 0.27 | ||||||||
SY5□20 -□-C6 |
2 position |
Single | C6 One- touch fitting for ø6 |
1.5 | 0.33 | 0.33 | 2.0 | 0.37 | 0.52 | 88 | 91 | 112 | 95 | |
Double | 106 | 111 | 153 | 119 | ||||||||||
3 position |
Closed center |
1.3 | 0.31 | 0.33 | 1.6 | 0.32 | 0.39 | 111 | 116 | 158 | 124 | |||
Exhaust center |
1.3 | 0.33 | 0.33 | 1.8 (1.4) |
0.35 (0.37) |
0.44 (0.35) |
||||||||
Pressure center |
1.7 (0.80) |
0.31 (0.47) |
0.42 (0.23) |
1.7 | 0.33 | 0.44 | ||||||||
SY5□20 -□-C8 |
2 position |
Single | ![]() One- touch fitting for ø8 |
1.9 | 0.21 | 0.45 | 2.3 | 0.29 | 0.57 | 80 | 82 | 103 | 86 | |
Double | 98 | 103 | 145 | 111 | ||||||||||
3 position |
Closed center |
1.6 | 0.29 | 0.39 | 1.7 | 0.38 | 0.46 | 103 | 108 | 150 | 116 | |||
Exhaust center |
1.4 | 0.38 | 0.39 | 2.0 (1.5) |
0.37 (0.41) |
0.52 (0.43) |
||||||||
Pressure center |
2.2 (1.6) |
0.32 (0.44) |
0.56 (0.44) |
1.8 | 0.41 | 0.50 |
The SMC Solenoid Valves product is a 5 port solenoid valve that can be used in a variety of occasions and scenarios. It is suitable for controlling air in pneumatic systems, such as in industrial automation, robotics, and packaging equipment. This valve is ideal for fluid control applications that require high flow rates, fast response times, and accurate control of fluid flow.
The SMC Solenoid Valves product can be used in environments with ambient and fluid temperatures ranging from -10 to 50 degrees Celsius, with no risk of freezing. The enclosure is dust-proof, making it suitable for use in harsh environments. The mounting orientation of this valve is unrestricted, which means it can be mounted in any position. Lubrication is not required for this product, which makes it easy to maintain and operate.
Overall, the SMC Solenoid Valves product is a reliable and efficient electromagnetic valve that is ideal for controlling air in a wide range of fluid control applications. Whether you are working in industrial automation, robotics, or packaging equipment, this 5 port solenoid valve can help you to achieve accurate control of fluid flow and achieve optimal system performance.
SMC Solenoid Valves are designed to control the flow of air, water, oil, and other media in a wide range of applications. Our technical support team is available to assist customers with any questions regarding the selection, installation, and operation of our solenoid valves. We offer a variety of services to ensure that our customers receive the best possible performance from their valves, including:
Our team of experts is dedicated to providing exceptional customer service and support. We are committed to ensuring that our customers have access to the information and resources they need to keep their operations running smoothly. Contact us today to learn more about our solenoid valves and the services we offer.
Product Packaging:
Shipping:
