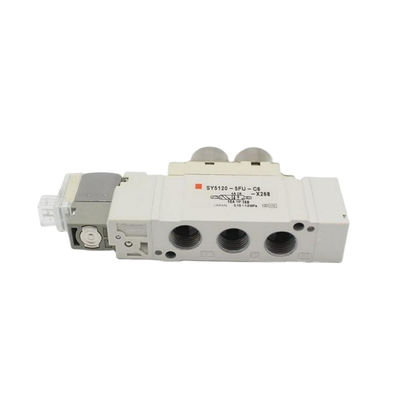

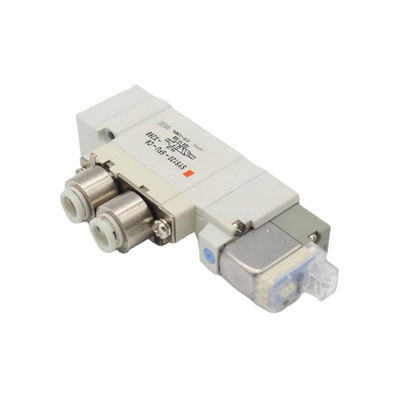

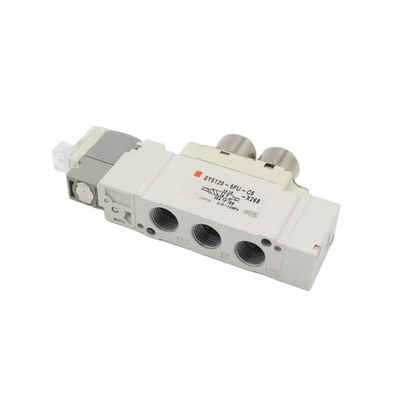

SMC SY5120-5LZD-C6 Pneumatic Solenoid Valve Port Size Ø6 2 Position Single DC24V

Product Description:

The Series SY offers significant improvements in valve performance, providing cost-effective solutions for your specific needs and requirements. With its compact design, the series delivers high flow capacity while consuming low power.

The SY series is suitable for various applications, and it's available in two styles: body ported and base mounted. You can use it individually or mount it into a manifold arrangement, offering greater flexibility, versatility, and space optimization for your needs.

Perfect Valve Solution for Various Operations

The Series SY is the ideal valve solution for commercial, manufacturing, and industrial operations. With a focus on low power consumption and high flow rate, this series delivers optimal performance, reliability, and longevity, ensuring your needs are met efficiently and effectively.

Valve model	Type of actuation		Port size		Flow rate characteristics						Weight (g)
			1, 5, 3 (P, EA, EB)	4, 2 (A, B)	1→4/2 (P→A/B)			4/2→5/3 (A/B→EA/EB)			Gro- mmet	L/M plug connector	DIN terminal	W M8 connector
					C (dm3/ (s·bar) )	b	Cv	C (dm3/ (s·bar) )	b	Cv
SY5□20 -□-01	2 position	Single	18	18	1.9	0.35	0.49	2.4	0.39	0.61	70	72	93	76
		Double									88	93	135	101
	3 position	Closed center			1.7	0.43	0.45	1.8	0.35	0.46	93	98	140	106
		Exhaust center			1.5	0.44	0.41	2.5 (1.5)	0.32 (0.43)	0.59 (0.40)
		Pressure center			2.2 (0.91)	0.46 (0.58)	0.61 (0.28)	1.8	0.38	0.46
SY5□20 -□-C4	2 position	Single		C4 touch fitting	0.75	0.43	0.20	0.85	0.64	0.30	94	96	117	100
		Double									111	117	159	125
	3 position	Closed center			0.74	0.40	0.19	0.84	0.57	0.28	117	122	164	130
		Exhaust center			0.75	0.36	0.19	0.84 (0.84)	0.64 (0.53)	0.30 (0.27)
		Pressure center			0.78 (0.71)	0.44 (0.37)	0.21 (0.18)	0.84	0.57	0.27
SY5□20 -□-C6	2 position	Single		C6 One- touch fitting for ø6	1.5	0.33	0.33	2.0	0.37	0.52	88	91	112	95
		Double									106	111	153	119
	3 position	Closed center			1.3	0.31	0.33	1.6	0.32	0.39	111	116	158	124
		Exhaust center			1.3	0.33	0.33	1.8 (1.4)	0.35 (0.37)	0.44 (0.35)
		Pressure center			1.7 (0.80)	0.31 (0.47)	0.42 (0.23)	1.7	0.33	0.44
SY5□20 -□-C8	2 position	Single		C8 One- touch fitting for ø8	1.9	0.21	0.45	2.3	0.29	0.57	80	82	103	86
		Double									98	103	145	111
	3 position	Closed center			1.6	0.29	0.39	1.7	0.38	0.46	103	108	150	116
		Exhaust center			1.4	0.38	0.39	2.0 (1.5)	0.37 (0.41)	0.52 (0.43)
		Pressure center			2.2 (1.6)	0.32 (0.44)	0.56 (0.44)	1.8	0.41	0.50

Applications:

These solenoid valves are enclosed and dustproof, which makes them suitable for use in harsh environments. They do not require any lubrication, which reduces maintenance costs and increases their lifespan. The ambient and fluid temperature range of these valves is –10 to 50 degrees Celsius, ensuring that they can function effectively in most industrial settings. The mounting orientation is unrestricted, which makes installation easy and flexible.

These 5 Port Solenoid Valves are specifically designed to be used with air. They are ideal for controlling the flow of air in pneumatic systems, such as air compressors, air cylinders, and air tools. They can also be used in other industrial applications that require the precise control of air flow.

The versatility of these solenoid valves makes them suitable for a wide range of applications, including automotive manufacturing, food processing, packaging, and medical equipment. They can also be used in robotics, automation, and other high-tech applications that require precise control of air flow.

Support and Services:

Our SMC Solenoid Valves product technical support and services include:

• Product literature and documentation
• Installation and maintenance instructions
• Technical specifications and data sheets
• Product selection and customization assistance
• Training and education on product operation and application
• Repair and replacement services
• Technical support for troubleshooting and issue resolution

Packing and Shipping:

Our SMC Solenoid Valves are carefully packaged to ensure safe delivery to your doorstep. Each valve is wrapped in protective material to prevent damage during shipping.

We offer a variety of shipping options to meet your needs. Standard shipping typically takes 3-5 business days, while expedited shipping options are available for those who need their valves sooner. We also offer international shipping to customers outside of the United States.

Once your order is processed and shipped, you will receive a tracking number via email so you can track your package's progress. If you have any questions or concerns about your order or shipping, please don't hesitate to contact our customer service team.
