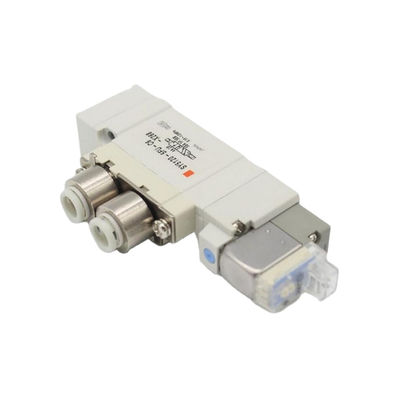

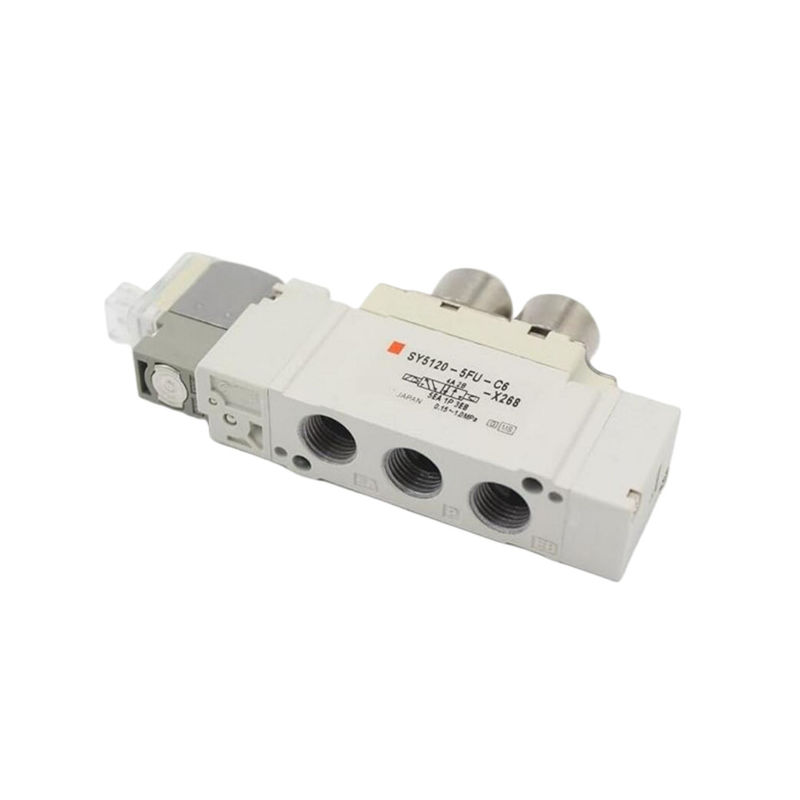

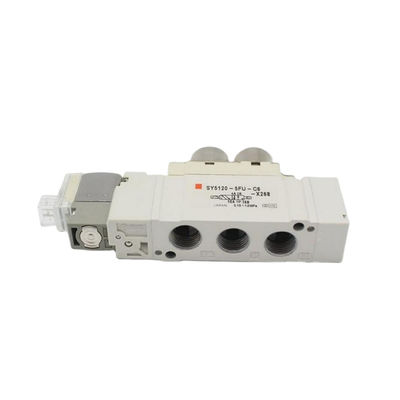

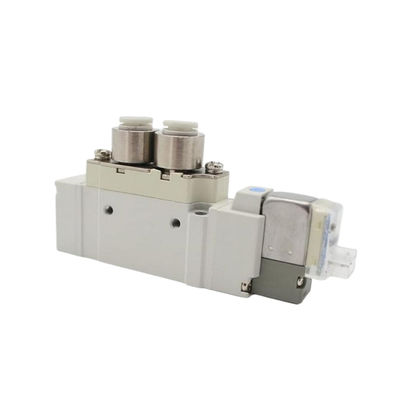

SMC SY5120-6LZD-C6 Pneumatic Solenoid Valve Port Size ø6 2 Position Single DC12V

Product Description:

The valve performance has been significantly improved through the use of the Series SY. This series offers cost-effective solutions that cater to your specific needs and requirements. The valve has a compact design, providing a high flow capacity while consuming low power, making it an excellent choice for different applications.

The SY series is available in two styles: body ported and base mounted. You can use it individually, or mount it into a manifold arrangement, adding greater flexibility to cater to your needs.

Whether you're a commercial, manufacturing, or industrial operation, the Series SY provides the perfect valve solution for you. The series is designed to provide low power consumption and high flow rate, meeting the demands of various sectors.

Electrical entry

Grommet (G), (H) L plug connector (L) M plug connector (M)

DIN terminal (D), (Y) M8 connector (W)

G, H, L, M, W

D, Y

Coil rated voltage (V)

DC

24, 12, 6, 5, 3

2,412

AC 50 60 Hz

100, 110, 200, 220

Allowable voltage fluctuation

±10% of rated voltage *

Power consumption (W)

DC

Standard

0.35 (With indicator light: 0.4 DIN terminal with indicator light: 0.45)

With power saving circuit

0.1 (With indicator light only) * [Starting 0.4, Holding 0.1]

Apparent power (VA) *

AC

100 V

0.78 (With indicator light: 0.81)

0.78 (With indicator light: 0.87)

110 V [115 V]

0.86 (With indicator light: 0.89) [0.94 (With indicator light: 0.97)]

0.86 (With indicator light: 0.97) [0.94 (With indicator light: 1.07)]

200 V

1.18 (With indicator light: 1.22)

1.15 (With indicator light: 1.30)

220 V [230 V]

1.30 (With indicator light: 1.34) [1.42 (With indicator light: 1.46)]

1.27 (With indicator light: 1.46) [1.39 (With indicator light: 1.60)]

Surge voltage suppressor

Diode (Varistor is for DIN terminal and Non-polar type.)

Indicator light

LED (AC of DIN connector is neon light.)

* In common between 110 VAC and 115 VAC, and between 220 VAC and 230 VAC. * For 115 VAC and 230 VAC,the allowable voltage is –15% to +5% of rated voltage. * DIN terminal and M8 connector with power saving circuit are not available. * For details, refer to page 636.

Applications:

The SMC solenoid valve is a 5 port solenoid valve that is designed to work in a variety of environments. Its ambient and fluid temperature range is between –10 to 50°C, making it suitable for use in environments where freezing is not a risk. Furthermore, the valve is dust proof and does not require lubrication. This means that it can be used in a variety of settings without the need for additional maintenance.
The SMC solenoid valve is ideal for use in a variety of applications. One application is in the automotive industry, where it can be used in air conditioning systems. The valve can also be used in the food and beverage industry, where it is often used to control the flow of air in pneumatic conveying systems. Additionally, the valve can be used in the chemical industry, where it is used to control the flow of air in chemical processing systems.
The SMC solenoid valve is available for purchase with a minimum order quantity of 1. The price of the valve is negotiable, and it comes packaged in a carton or as per the client's requirements. The delivery time for the valve is between 1-7 work days after payment has been received. Payment can be made via T/T, Western Union, or Paypal. The valve has a supply ability of 5000 pieces per month, making it readily available for purchase.
The SMC solenoid valve is versatile in its mounting orientation, making it easy to install in a variety of locations. Its fluid is air, making it suitable for use in a variety of applications. Overall, the SMC solenoid valve is a reliable and high-quality product that can be used in a variety of applications.

Support and Services:

Our SMC Solenoid Valves come with unmatched product technical support and services. Our team of experts can provide you with the necessary technical assistance to ensure that your solenoid valves are functioning optimally. We offer troubleshooting assistance, product selection guidance, and installation support to ensure that your valves are installed and operated correctly.
In addition, we offer preventive maintenance and repair services to keep your valves in top condition. Our maintenance services include cleaning, inspection, and replacement of worn out parts. Our repair services include diagnosis of valve problems, repair or replacement of damaged parts, and testing to ensure that your valves are functioning properly after repair.

Packing and Shipping:

Product Packaging:
The SMC Solenoid Valves are packaged securely in a sturdy cardboard box with foam inserts to prevent any damage during transportation. Each valve is individually wrapped with protective material to ensure it arrives in perfect condition.
Shipping:
We offer shipping worldwide through reliable carriers. Orders are processed and shipped within 2 business days. Delivery times may vary depending on the destination. Customers will receive a tracking number to monitor the status of their shipment.
