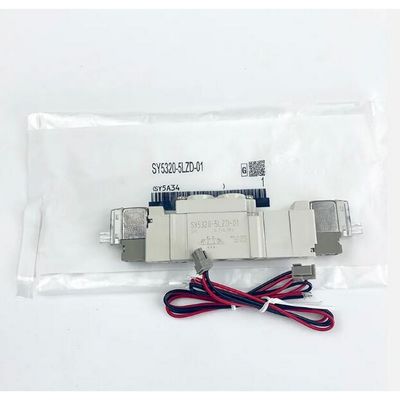

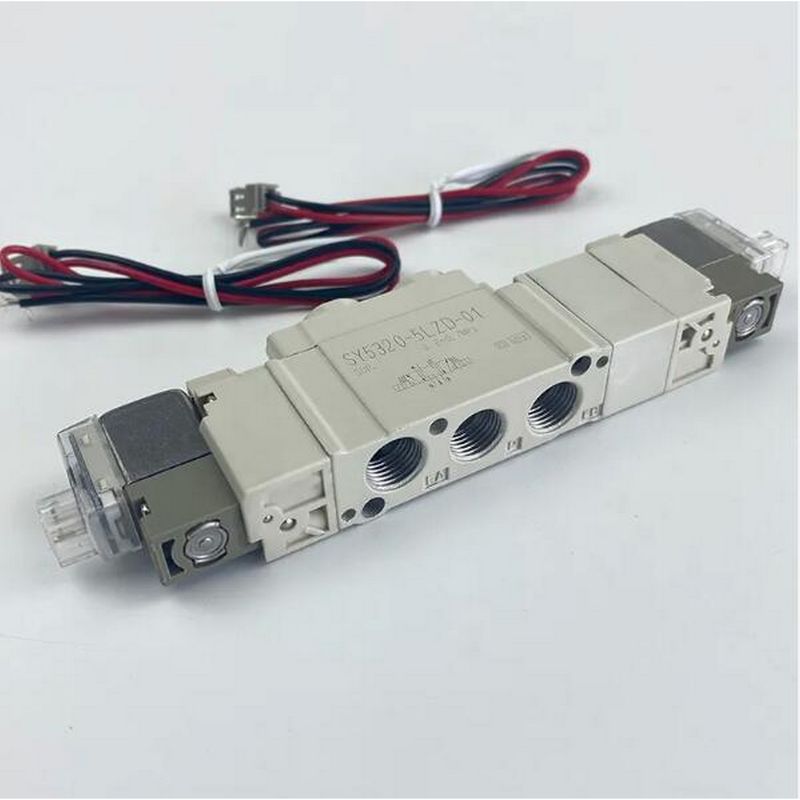

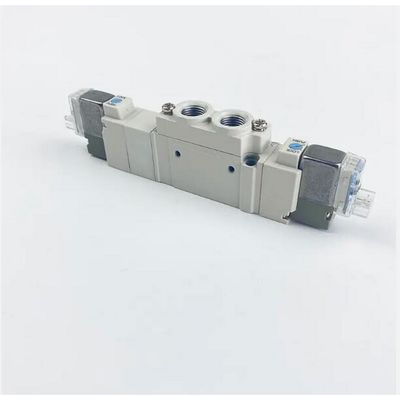

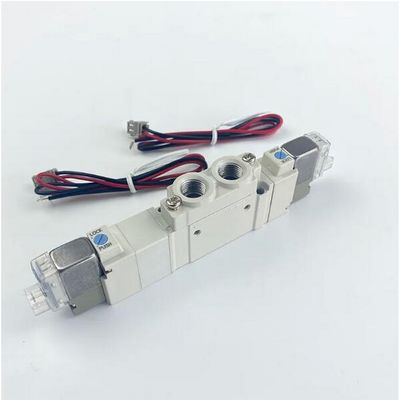

SMC SY5220-5LZD-01 DC24V Port Size 1/8 Pneumatic Solenoid Valve Thread Piping 2 Position Double

Product Description:

The Series SY presents a significantly improved valve performance in a cost-effective manner. It can cater to specific needs and requirements while being suitable for different applications. The series boasts a compact design that offers high flow capacity while consuming low power, saving you money in the long run.

The Series SY is versatile and available in two styles that allow you to choose between body ported and base-mounted options. You can use it individually or mount it into a manifold arrangement, providing greater flexibility to suit your unique and specific needs.

Whether you're operating a commercial, manufacturing, or industrial operation, the Series SY presents the perfect valve solution for you. With a focus on low power consumption and high flow rate, you'll be able to achieve optimal performance and efficiency while saving on power costs.

Valve model	Type of actuation		Port size		Flow rate characteristics						Weight (g)
			1, 5, 3 (P, EA, EB)	4, 2 (A, B)	1→4/2 (P→A/B)			4/2→5/3 (A/B→EA/EB)			Gro- mmet	L/M plug connector	DIN terminal	W M8 connector
					C (dm3/ (s·bar) )	b	Cv	C (dm3/ (s·bar) )	b	Cv
SY5□20 -□-01	2 position	Single	18	18	1.9	0.35	0.49	2.4	0.39	0.61	70	72	93	76
		Double									88	93	135	101
	3 position	Closed center			1.7	0.43	0.45	1.8	0.35	0.46	93	98	140	106
		Exhaust center			1.5	0.44	0.41	2.5 (1.5)	0.32 (0.43)	0.59 (0.40)
		Pressure center			2.2 (0.91)	0.46 (0.58)	0.61 (0.28)	1.8	0.38	0.46
SY5□20 -□-C4	2 position	Single		C4 touch fitting	0.75	0.43	0.20	0.85	0.64	0.30	94	96	117	100
		Double									111	117	159	125
	3 position	Closed center			0.74	0.40	0.19	0.84	0.57	0.28	117	122	164	130
		Exhaust center			0.75	0.36	0.19	0.84 (0.84)	0.64 (0.53)	0.30 (0.27)
		Pressure center			0.78 (0.71)	0.44 (0.37)	0.21 (0.18)	0.84	0.57	0.27
SY5□20 -□-C6	2 position	Single		C6 One- touch fitting for ø6	1.5	0.33	0.33	2.0	0.37	0.52	88	91	112	95
		Double									106	111	153	119
	3 position	Closed center			1.3	0.31	0.33	1.6	0.32	0.39	111	116	158	124
		Exhaust center			1.3	0.33	0.33	1.8 (1.4)	0.35 (0.37)	0.44 (0.35)
		Pressure center			1.7 (0.80)	0.31 (0.47)	0.42 (0.23)	1.7	0.33	0.44
SY5□20 -□-C8	2 position	Single		C8 One- touch fitting for ø8	1.9	0.21	0.45	2.3	0.29	0.57	80	82	103	86
		Double									98	103	145	111
	3 position	Closed center			1.6	0.29	0.39	1.7	0.38	0.46	103	108	150	116
		Exhaust center			1.4	0.38	0.39	2.0 (1.5)	0.37 (0.41)	0.52 (0.43)
		Pressure center			2.2 (1.6)	0.32 (0.44)	0.56 (0.44)	1.8	0.41	0.50

Applications:

• Electronics: SMC Solenoid Valves are often used in electronic devices and applications that require precision control of air flow. These valves are typically used in electronic circuits and can be used to control the flow of air in and out of sensitive electronic components.
• Manufacturing: The 5 Port Solenoid Valve from SMC is often used in manufacturing environments where it is necessary to control the flow of air to different parts of a machine or assembly line. These valves can be used to control the flow of air to pneumatic actuators, cylinders, and other components.
• Automotive: SMC Solenoid Valves are used in a variety of automotive applications, including controlling the flow of air to different parts of the engine and transmission systems. These valves are often used in conjunction with electronic control systems to ensure smooth and efficient operation of the vehicle.
• Food and Beverage: SMC Solenoid Valves are often used in food and beverage processing applications to control the flow of air and other fluids. These valves are typically made from food-grade materials and are designed to withstand harsh environments and high temperatures.
• Medical: SMC Solenoid Valves are used in a variety of medical applications, including controlling the flow of air to medical equipment and devices. These valves are often used in conjunction with electronic control systems to ensure precise control of air flow and pressure.

SMC Solenoid Valves are an excellent choice for any application that requires precise control of air flow. These valves are designed to be durable and reliable, and are perfect for use in harsh environments. With their CE certification, SMC Solenoid Valves meet the highest standards of quality and performance.

At SMC, we understand that every application is different, which is why we offer a wide range of solenoid valves to meet your specific needs. Whether you need a 5 Port Solenoid Valve or an electromagnetic valve, we have the right product for you. With a minimum order quantity of just one, our solenoid valves are perfect for any size project, and our flexible pricing and packaging options make it easy to find the right solution for your needs.

Our solenoid valves are made in China, and are designed to meet the highest standards of quality and performance. With a supply ability of 5000 pieces per month, we can meet your needs no matter how large or small your project is. Our solenoid valves are dust proof and do not require lubrication, and can be mounted in any orientation, making them easy to install and maintain.

Ordering from SMC is easy - simply contact us to discuss your needs and we will work with you to find the right solution for your application. We accept a variety of payment methods, including T/T, Western Union, and Paypal, and offer fast delivery times of 1-7 work days after payment. Contact us today to learn more about our solenoid valves and how we can help you find the right solution for your needs.

Support and Services:

Our SMC Solenoid Valves product comes with the following technical support and services:

• Expert technical assistance in selecting the right valve for your application
• Installation guidance and support
• Product training and education
• Repair and maintenance services
• 24/7 customer service support

Our team of experienced professionals is dedicated to providing you with exceptional support and services for your SMC Solenoid Valves. Contact us for more information.

Packing and Shipping:

Product Packaging:

• The solenoid valves are carefully packed in a sturdy cardboard box.
• The box also includes foam padding to prevent any damage during transportation.
• Each valve is individually wrapped in plastic to avoid scratches or other surface damage.
• The packaging also includes an instruction manual for installation and use of the solenoid valves.

Shipping:

• Orders for SMC solenoid valves are processed within 24 hours of receipt.
• The valves are shipped via UPS or FedEx, depending on the customer's preference and location.
• All orders are trackable and customers will receive a tracking number via email once their order has shipped.
• Shipping times may vary depending on the destination, but most orders are delivered within 3-5 business days.
