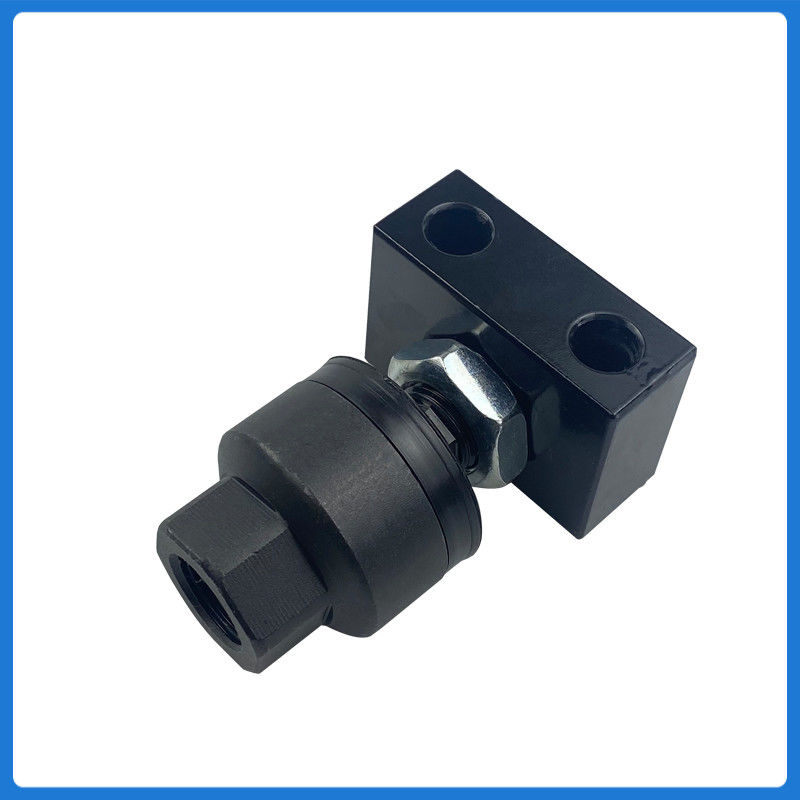

SMC Floating Joint For Air Cylinders M10x 1 Threaded JAL32-10-100

SMC’s JAL floating joint is an efficient solution for industrial automation and precision control that offers the following main properties:

• High precision compensation capability: JAL floating joints can absorb the eccentricity and insufficient parallelism accuracy of passive bodies and cylinders without the need for axis alignment, which lowers the machining accuracy requirements significantly.
• Multiple installation forms: The JAL floating joint adopts a foot seat type (L) installation form, which is suitable for a cylinder diameter of 30mm and a thread specification of M10X1.25, making the installation process simpler and improving work efficiency.
• High load response capability: Despite its small size, the JAL floating joint can handle high loads of tensile and compressive forces, with a maximum tensile force of 2000 N on both the compression and tension sides.

Moreover, the JAL floating joint provides the following benefits:

• Long life design: Equipped with a synthetic rubber dust cover, it extends the product's service life and protects the internal structure from dust and impurities.
• Wide applicability: JAL floating joints are suitable for use in various industrial applications, including automation machinery, robotics technology, medical equipment, and packaging machinery. They have become an ideal connection solution in situations where installation space is limited or installation accuracy is not required.
• Temperature range for use: The JAL floating joint has a temperature range of -5℃ to 60℃, which enables it to adapt to various environmental conditions.
• Swing angle: The swing angle of this model's floating joint is ±5°, providing sufficient flexibility to adapt to different installation angles.

These attributes make JAL floating joints an excellent candidate for providing a stable and reliable connection solution for a wide range of industrial automation and precision control applications.
