Product Description:

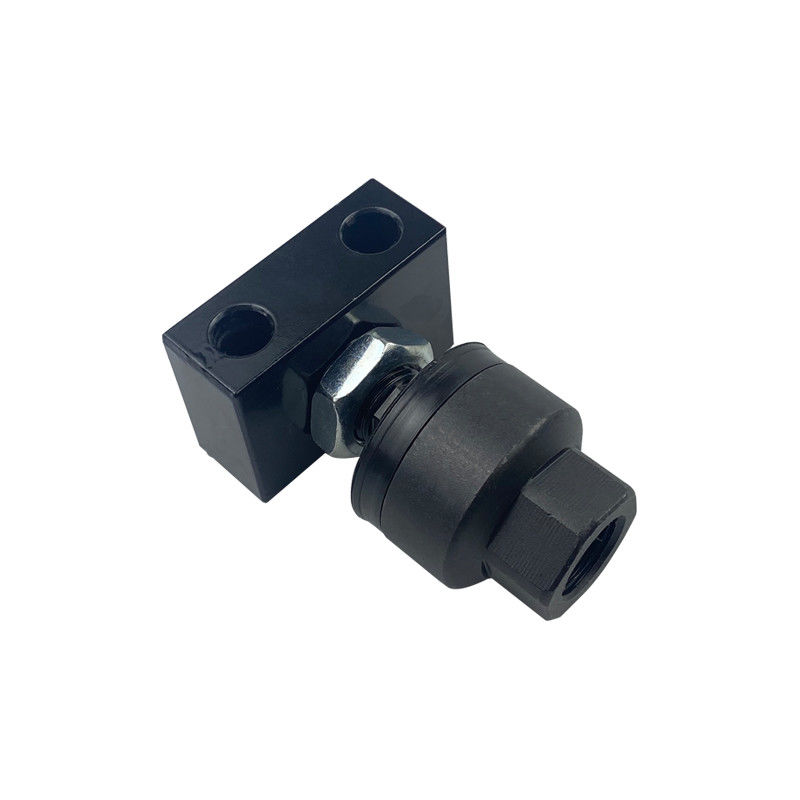

Properties of SMC's JAL Floating Joint
SMC's JAL floating joint possesses various properties that make it suitable for industrial automation and precision control. Some of these properties include:
- High precision compensation capability: JAL floating joints can compensate for eccentricity and insufficient parallelism accuracy of passive bodies and cylinders, making it unnecessary to align the axis. This feature greatly minimizes the requirements for machining accuracy.
- Multiple installation forms: JAL floating joints can be installed using a foot seat type (L) installation form, suitable for a cylinder diameter of 30mm and a thread specification of M10X1.25. This simplifies the installation process and enhances work efficiency.
- High load response capability: Despite its small size, the JAL floating joint can handle high loads of tensile and compressive forces, with a maximum tensile force of 2000 N on both the compression and tension sides.
Design and Applicability of the JAL Floating Joint
SMC's JAL floating joint is designed for use in various industrial applications, including automation machinery, robotics technology, medical equipment, and packaging machinery. Additionally, it has the following features:
- Long life design: The JAL floating joint is equipped with a synthetic rubber dust cover, which serves to extend the product's service life while protecting the internal structure from dust and impurities.
- Wide applicability: The JAL floating joint is an ideal connection solution when installation space is limited, or installation accuracy is not necessary.
- Temperature range for use: The temperature range of the JAL floating joint is between -5 ℃ to 60 ℃, making it suitable for various environmental conditions.
- Swing angle: The JAL floating joint can swing at an angle of ±5°, thereby providing sufficient flexibility to adapt to different installation angles.
Overall, the JAL floating joint's various properties enable it to provide stable and reliable connection solutions in the fields of industrial automation and precision control.
Technical Parameters:
| Product Type |
Simple |
| Type |
Floating Joints |
| Brand |
SMC |
| Unit Of Measure |
EA |
| Applicable cylinder nominal thread |
M8x 1 |
| Applicable Cylinder |
Air Cylinder / Hydraulic Cylinders |
| Product Name |
SMC JAL floating joint |
| Product Series |
JAL series |
| Product Description |
SMC JAL floating joint with flange |
Applications:
The SMC Solenoid Valves are of the Floating Joints type and are simple in design. These valves are designed to be used with both air and hydraulic cylinders. The product type of these valves is simple, and the unit of measure is EA. The SMC Solenoid Valves are available in the JAL series, which is known for its durability and excellent performance.
The SMC cylinder floating joint is a product that is designed to provide a secure and reliable connection between the cylinder and the piping. These joints are easy to install and maintain, and they are available in various sizes and configurations to meet the requirements of different applications.
The SMC JAL floating joint is a high-quality product that is designed to be used with air and hydraulic cylinders. These joints are made from high-quality materials and are designed to provide a reliable and secure connection between the cylinder and the piping. The SMC JAL floating joint is easy to install and maintain, and it is available in different sizes and configurations to meet the requirements of different applications.
The SMC Solenoid Valves are suitable for a wide range of applications, including industrial automation, food processing, packaging, and many more. These valves are easy to install and maintain, and they are designed to provide reliable and efficient performance. The SMC Solenoid Valves are an excellent choice for anyone looking for high-quality valves that are designed to last.
Packing and Shipping:
Product Packaging:
- The SMC solenoid valves are carefully packaged in a protective plastic wrap.
- The valves are then placed in a sturdy cardboard box for added protection during shipping.
Shipping Information:
- Orders are processed within 1-2 business days.
- Standard shipping takes approximately 3-5 business days.
- Expedited shipping options are available for an additional fee.
- Shipping rates are calculated based on the weight and destination of the order.
