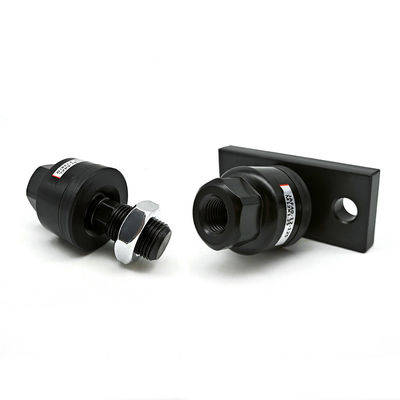

JAF180-40-200 SMC Floating Joints FRL Unit For Pneumatic Hydraulic Cylinder

Product Description:

The JA series floating joints are designed with various properties to cater to the needs of industrial automation applications. These properties include:

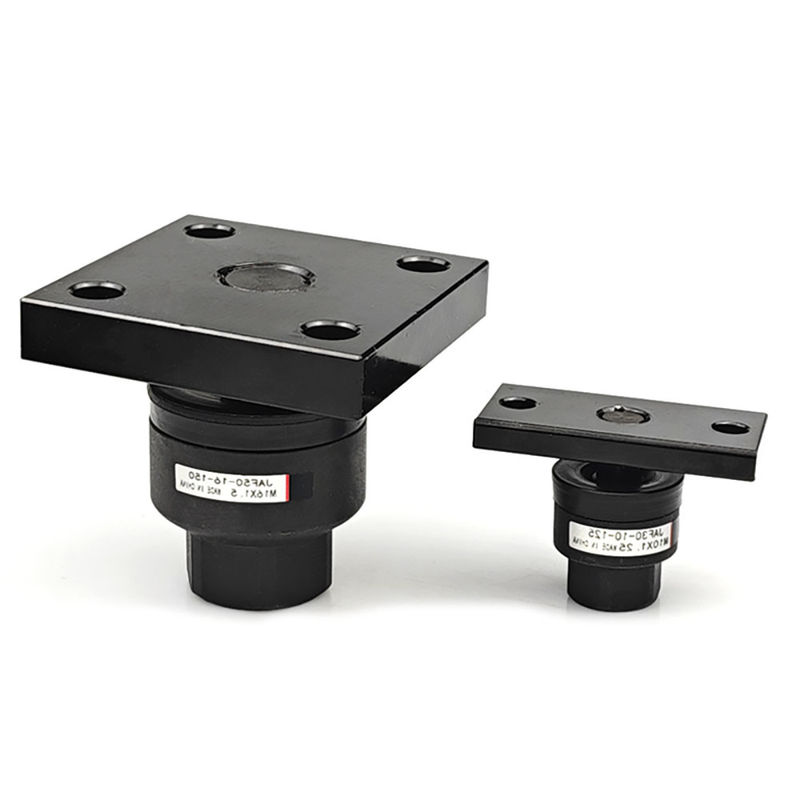

The JA series floating joint uses a flange type installation form, which is easy to install and maintain. This feature is particularly suitable for applications that require frequent disassembly and maintenance.

Each model of the JA series floating joint has a varying suitable cylinder diameter. For instance, JAF80-22-150 is appropriate for a cylinder diameter of 80mm, while JAF100-27-150 is appropriate for a cylinder diameter of 100mm.

The thread specification of each model varies as well. For example, JAF80-22-150 has a thread specification of M22X1.5, while JAF100-27-150 has a thread specification of M27X1.5 12.

Each model also has a different maximum tensile strength. For example, JAF80-22-150 can withstand a maximum tensile force of 18000N, while JAF100-27-150 can handle a maximum tensile force of 28000N.

Another varying property is the allowable eccentricity for each model. JAF80-22-150 can tolerate an eccentricity of up to 1.25mm, while JAF100-27-150 can handle an eccentricity of up to 2mm.

The swing angle for all JA series floating joint models is ± 5°12.

All models can operate within a wide temperature range of -5 to 60℃.

1. Installation form:
2. Suitable cylinder diameter:
3. Thread specifications:
4. Maximum tensile strength:
5. Allowable eccentricity:
6. Swing angle:
7. Operating temperature range:

With these features, the JA series floating joints can be used in various industrial automation applications such as robotic arm connections, material handling systems, precision positioning equipment, and assembly line automation. The design of these joints allows for compensation of eccentricity and parallelism issues that may arise during manufacturing or installation, thereby improving system stability and longevity.

Technical Parameters:

SMC Solenoid Valves JAF series with flange floating joint is also available.

Applications:

The SMC Solenoid Valves product is a simple product that is designed to help you control the flow of air or hydraulic fluid in your cylinders. The product type is floating joints, and the applicable cylinder nominal thread is M27 × 1.5. The SMC JAF floating joint is a popular product in the JAF series and is known for its reliability and durability. The JAF series is designed for use with air and hydraulic cylinders and is perfect for a wide range of applications.

The SMC JAF floating joint is suitable for use in a variety of application occasions and scenarios. It is ideal for use in manufacturing plants, factories, and other industrial settings where the flow of air or hydraulic fluid needs to be controlled. It is also suitable for use in pneumatic systems, hydraulic systems, and other fluid power applications. The SMC JAF floating joint is perfect for use in high-pressure applications where precision and accuracy are essential.

The SMC JAF floating joint is an essential component in many different types of air and hydraulic cylinders. It is designed to provide a secure and reliable connection between the cylinder and the control valve, ensuring that the flow of air or hydraulic fluid is controlled with precision and accuracy. The SMC JAF floating joint is easy to install and use and is an essential part of any fluid power system.

In conclusion, the SMC Solenoid Valves product is a reliable and durable product that is perfect for controlling the flow of air or hydraulic fluid in your cylinders. The SMC JAF floating joint is a popular product in the JAF series and is known for its reliability and durability. It is perfect for use in a wide range of application occasions and scenarios and is an essential component in many different types of air and hydraulic cylinders. The unit of measure for this product is EA, and it is highly recommended for anyone looking for a quality product that is designed to last.

Packing and Shipping:

Product Packaging:

The SMC Solenoid Valves are packed securely and safely in a sturdy cardboard box to ensure they arrive in pristine condition.

Shipping:

We offer fast and reliable shipping options for our customers. The SMC Solenoid Valves are shipped via trusted carriers to ensure timely delivery. Shipping options and costs vary depending on the destination and the urgency of the order.
