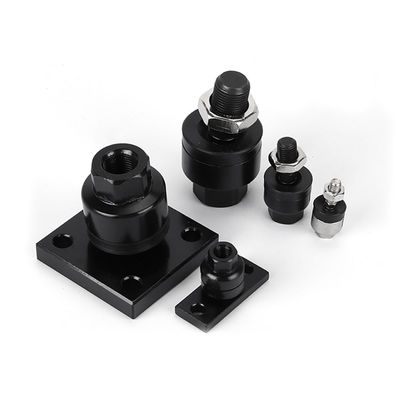

Product Description:
The JA series floating joints have several main properties that make them suitable for various industrial automation applications:

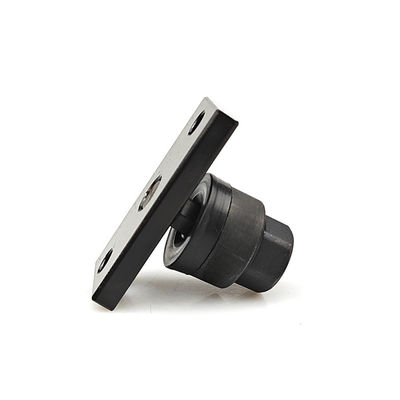

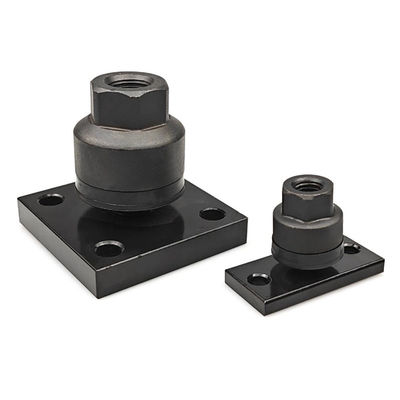

- Installation form : The JA series floating joint employs a flange type installation form that is perfect for scenarios requiring frequent disassembly and maintenance.
- Suitable cylinder diameter : Different models can accommodate varying cylinder diameters. For instance, JAF80-22-150 fits an 80mm cylinder diameter, while JAF100-27-150 suits a 100mm cylinder diameter.
- Thread specifications : Each model has its unique thread specification. For instance, JAF80-22-150 has an M22X1.5 thread specification, while JAF100-27-150 features an M27X1.5 12 thread specification.
- Maximum tensile strength : Each model has its maximum tensile strength capacity. JAF80-22-150, for example, can support up to 18000N, while JAF100-27-150 can handle up to 28000N of tensile force.
- Allowable eccentricity : Models can accommodate differing eccentricities. JAF80-22-150 can handle an eccentricity of up to 1.25mm, while JAF100-27-150 can accommodate an eccentricity of up to 2mm.
- Swing angle : All models have a swing angle of ± 5 ° 12.
- Operating temperature range : All models have an operating temperature range of -5 to 60 ℃.
The JA series floating joints are ideal for various industrial automation applications, including the connection of robotic arms, material handling systems, precision positioning equipment, and assembly line automation. Furthermore, they can compensate for eccentricity and parallelism issues resulting from manufacturing or installation errors, thereby improving system stability and longevity.
Technical Parameters:
| Type |
Floating Joints |
| Applicable Cylinder |
Air Cylinder / Hydraulic Cylinders |
| Brand |
SMC |
| Unit Of Measure |
EA |
| Product Type |
Simple |
| Applicable cylinder nominal thread |
M36x 1.5 |
| Product Description |
SMC with flange floating joint, JAF series |
Applications:
SMC Solenoid Valves are suitable for use in a variety of occasions and scenarios. They are commonly used in pneumatic and hydraulic systems, as well as in industrial automation equipment. SMC Solenoid Valves are also used in the food and beverage industry, pharmaceutical industry, and medical equipment industry.
The JAF series of SMC Solenoid Valves is ideal for use in applications that require high precision and accuracy. These valves are known for their high flow rates and excellent performance, making them suitable for use in heavy-duty applications such as construction equipment and machinery.
SMC Solenoid Valves are available for purchase with a minimum order quantity of 1, and the price is negotiable depending on the quantity ordered. The packaging details are provided as per the client's requirements, and the delivery time is 1-7 work days after payment. SMC Solenoid Valves can be paid for using T/T, Western Union, or PayPal. The supply ability of SMC Solenoid Valves is 5000 pieces per month.
In conclusion, SMC Solenoid Valves are a reliable and durable product that can be used in a wide range of applications. They are available in JAF series and are suitable for use in air and hydraulic cylinders with applicable cylinder nominal thread M27 × 1.5. The product type is simple, making it easy to install and operate. SMC Solenoid Valves are ideal for use in heavy-duty applications and are commonly used in the food and beverage industry, pharmaceutical industry, and medical equipment industry.
Packing and Shipping:
Product Packaging:
- The SMC Solenoid Valve will be packed securely in a sturdy cardboard box.
- The box will be sealed with tape to ensure that the product stays in place during shipping.
- Inside the box, the solenoid valve will be wrapped in bubble wrap to prevent any damage during transit.
- The package will include an instruction manual and any necessary mounting hardware.
Shipping:
- Shipping will be done through a trusted courier service.
- The package will be shipped within 24 hours of the order being placed.
- A tracking number will be provided to the customer once the package has been shipped.
- The estimated delivery time will vary depending on the customer's location.
- Any customs duties or taxes will be the responsibility of the customer.
- If there are any issues with the shipping or delivery of the product, please contact our customer service team for assistance.
