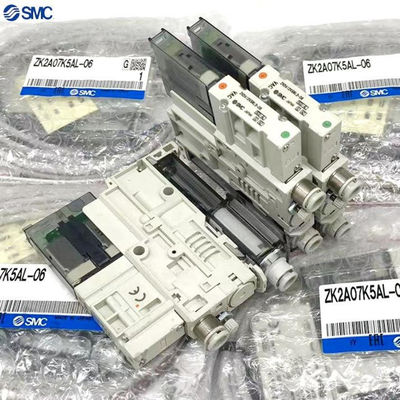

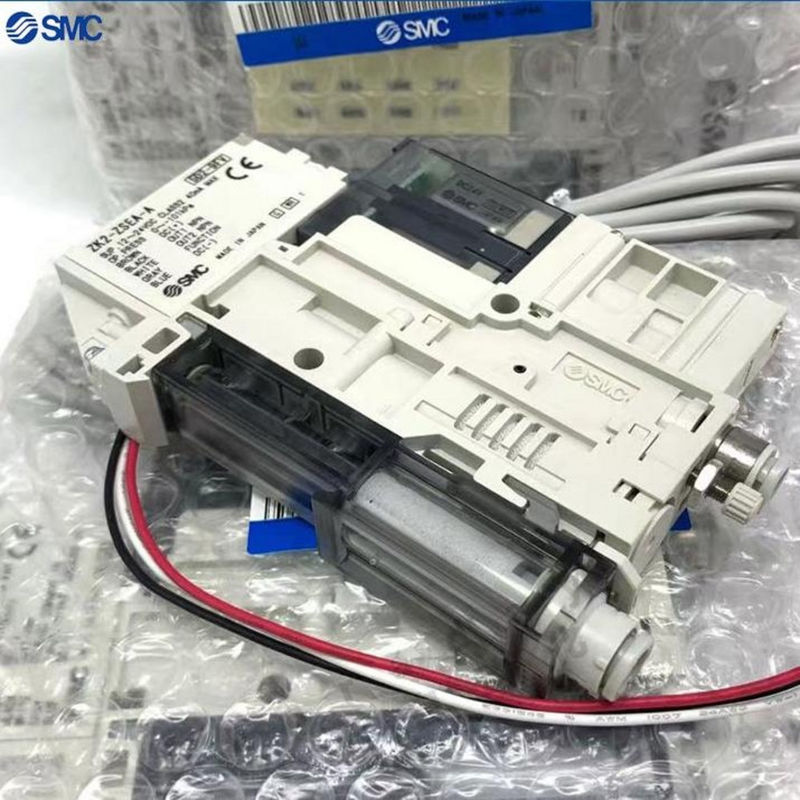

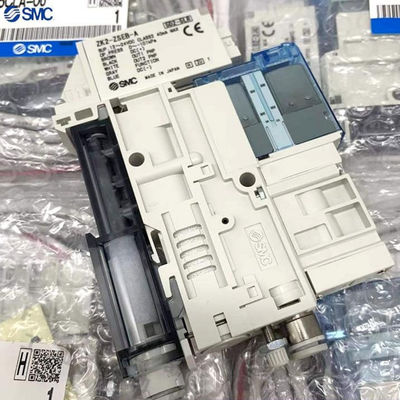

Name: ZK2A07K5NL2-08 SMC Energy-Saving Vacuum Unit with Short Circuit Protection and 40 MA Or Less Current Consumption
Brand: YW DKE TRADING COMPANY
SKU: ZK2A07K5NL2-08
Availability: InStock

Home Products SMC Solenoid Valves

ZK2A07K5NL2-08 SMC Energy-Saving Vacuum Unit with Short Circuit Protection and 40 MA Or Less Current Consumption

Product Details:

Place of Origin:	China
Brand Name:	SMC
Certification:	CE
Model Number:	ZK2A07K5NL2-08

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton /As The Clients Require
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000 pieces/1Month

Contact Now

Detailed Product Description

Current Consumption:	40 MA Or Less	Maximum Load Current:	80 MA
Short Circuit Protection:	Provided	Max. Applied Voltage:	DC26.4 V
Proof Pressure:	500 KPa	Min. Display Unit:	0.1 KPa

Product Description:

The ZK2 series features a two-stage vacuum generator structure (in contrast to SMC's conventional single-stage design) paired with smart digital pressure switches to deliver substantial energy-saving benefits:

Gas consumption reduction by over 90%: Automatically shutting off the gas supply once the set vacuum level is attained, resulting in significant cost savings.
50% enhancement in suction flow rate: Through the utilization of an efficient supersonic nozzle (Laval nozzle), the airflow velocity is optimized for improved suction efficiency.
Low noise operation (46dB (A)): Utilizing a high silencing muffler to reduce exhaust noise while further enhancing suction flow.

Rated pressure range		100.0to-100.0 kPa
Set pressure range		105.0 to-105.0kPa
Proof pressure		500 kPa
Min. displayunit		0.1 kPa
Applicable fluid		Air, inert gas and non-flammable gas
Power supply voltage		24 VDC ±10%, ripple max. 10%pk-pk(with polarity protection )
Current consumption		40 mA or less
Switch		NPNor PNPopen collector

Output		OUT1: General-purpose,OUT2: Valve control
	Maximum load current	80 mA
	Max. applied voltage	DC26.4V
	Residual voltage	Max. 2V (at 80 mA load current)
	Response time	2.5 ms or less (response times available for anti-chattering function: : 20,

		100, 500, 1000 or 2000 ms)
	Short circuit protection	Provided
Repeatability		±0.2%F.S.±1 digit
Hyster	Hysteresis mode	Adjustable (can be set from 0) 1

esis
Display		3 1/2 digits, 7-segment display, color display (Red)
Indicator accuracy		+/-2%F.S., +/-1 digit (at ambient temperature 25+/-3 oC)
Indication LED		Light when ON OUT1: Green OUT2: Red
Environ	Enclosure	IP40
	Ambient temperature range	5 to 50 oC
ment	Withstandvoltage	1000 VACfor 1 minutebetween live parts and case insulation resistance
	Insulation resistance	50 Mor more at 500 VDC Between lead block and case
Temperature characteristic		±2%F.S. (25 oC reference)
Lead wire		cable 5 cores 3.5, 2 m

		Sectional area of conductor: 0.15 mm2(AWG26)

		Outside diameter of insulator: 1.0 mm
Standard		CE marking, RoHS

Applications:

Specially designed for automation scenarios, especially suitable for:
Precision handling: Absorb fragile, soft, or thin non-metallic materials (such as glass, electronic components, plastic films).
High speed intermittent operations: Packaging, printing, and robot assembly lines require rapid start stop vacuum processes.
Energy saving sensitive production line: By reducing gas consumption by 93%, the cost of compressed air is significantly reduced.

Support and Services:

Our technical support team for SMC Solenoid Valves is dedicated to assisting customers with any product-related questions, troubleshooting, and technical assistance. Whether you need help with installation, operation, or maintenance, our team is here to provide you with expert guidance and support.
In addition to technical support, we also offer a range of services to ensure that your SMC Solenoid Valves perform optimally. These services may include product customization, training programs, repair and maintenance services, and system integration support. Our goal is to help you maximize the efficiency and reliability of your SMC Solenoid Valves.

FAQ:

Q: What is the brand name of the solenoid valves?
A: The brand name of the solenoid valves is SMC.
Q: Where is the place of origin for these solenoid valves?
A: The solenoid valves originate from China.
Q: What certifications do the solenoid valves have?
A: The solenoid valves are CE certified.
Q: What is the minimum order quantity for the solenoid valves?
A: The minimum order quantity is 1 piece.
Q: What are the accepted payment terms for purchasing these solenoid valves?
A: The accepted payment terms are T/T, Western Union, and Paypal.
