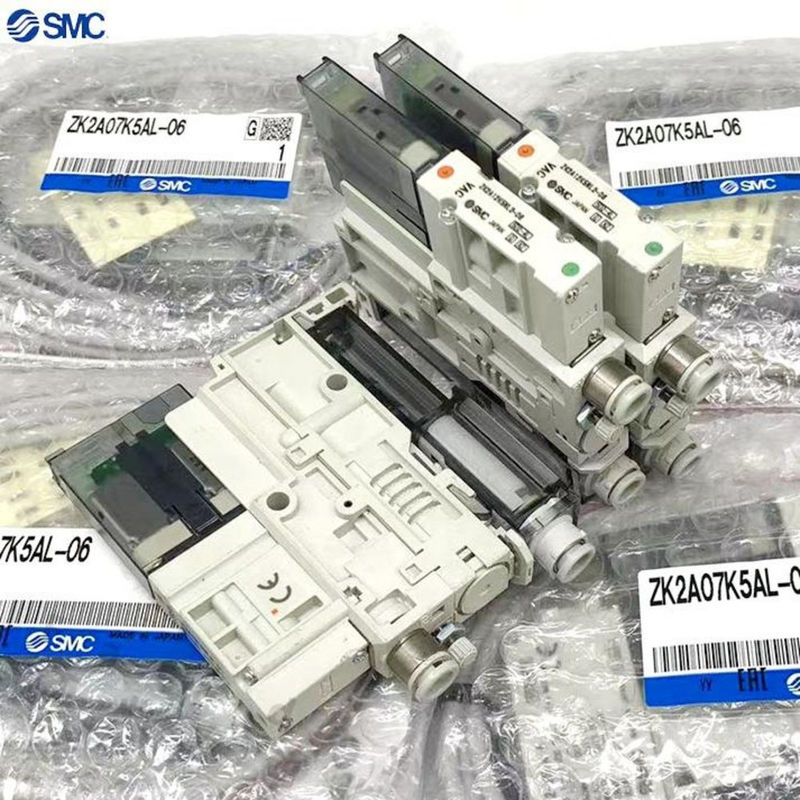

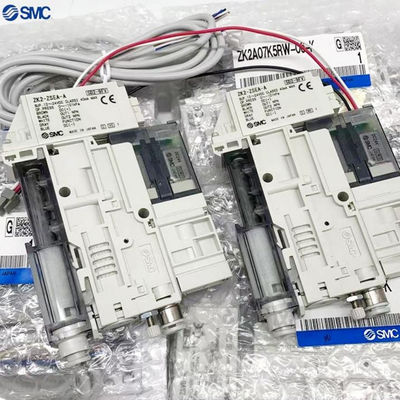

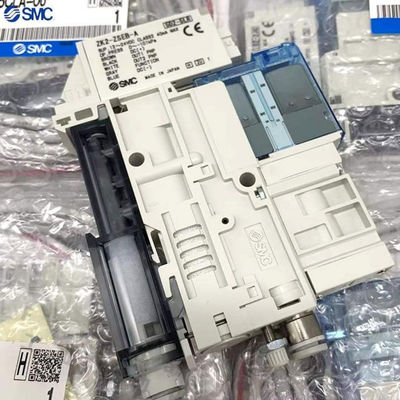

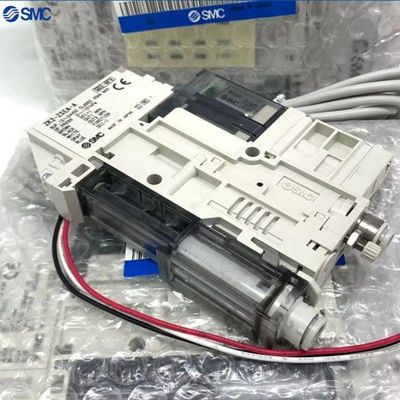

Name: Industrial Automation ZK2A07K5NL2-06 SMC Solenoid Valves Energy-Saving Vacuum Generator
Brand: YW DKE TRADING COMPANY
SKU: ZK2A07K5NL2-06
Availability: InStock

Home Products SMC Solenoid Valves

Industrial Automation ZK2A07K5NL2-06 SMC Solenoid Valves Energy-Saving Vacuum Generator

Product Details:

Place of Origin:	China
Brand Name:	SMC
Certification:	CE
Model Number:	ZK2A07K5NL2-06

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton /As The Clients Require
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000 pieces/1Month

Contact Now

Detailed Product Description

Short Circuit Protection:	Provided	Maximum Load Current:	80 MA
Min. Display Unit:	0.1 KPa	Proof Pressure:	500 KPa
Current Consumption:	40 MA Or Less	Max. Applied Voltage:	DC26.4 V

Product Description:

The ZK2 series features a two-stage vacuum generator structure, which differs from SMC's traditional single-stage setup. This innovative design, when combined with intelligent digital pressure switches, can produce remarkable energy-saving effects.

Key advantages of the ZK2 series include a significant reduction in gas consumption by over 90%. It achieves this by automatically cutting off the gas supply once the desired vacuum level is reached, resulting in substantial savings on operating costs.

Furthermore, the ZK2 series offers a 50% increase in suction flow rate. This enhancement is made possible by the implementation of an efficient supersonic nozzle, also known as a Laval nozzle. By optimizing airflow velocity through this design, the suction efficiency is vastly improved.

Additionally, the ZK2 series operates at a low noise level of 46dB (A). This is achieved through the incorporation of a high silencing muffler, which not only reduces exhaust noise but also contributes to a further increase in suction flow, thereby enhancing overall performance.

Rated pressure range		100.0to-100.0 kPa
Set pressure range		105.0 to-105.0kPa
Proof pressure		500 kPa
Min. displayunit		0.1 kPa
Applicable fluid		Air, inert gas and non-flammable gas
Power supply voltage		24 VDC ±10%, ripple max. 10%pk-pk(with polarity protection )
Current consumption		40 mA or less
Switch		NPNor PNPopen collector

Output		OUT1: General-purpose,OUT2: Valve control
	Maximum load current	80 mA
	Max. applied voltage	DC26.4V
	Residual voltage	Max. 2V (at 80 mA load current)
	Response time	2.5 ms or less (response times available for anti-chattering function: : 20,

		100, 500, 1000 or 2000 ms)
	Short circuit protection	Provided
Repeatability		±0.2%F.S.±1 digit
Hyster	Hysteresis mode	Adjustable (can be set from 0) 1

esis
Display		3 1/2 digits, 7-segment display, color display (Red)
Indicator accuracy		+/-2%F.S., +/-1 digit (at ambient temperature 25+/-3 oC)
Indication LED		Light when ON OUT1: Green OUT2: Red
Environ	Enclosure	IP40
	Ambient temperature range	5 to 50 oC
ment	Withstandvoltage	1000 VACfor 1 minutebetween live parts and case insulation resistance
	Insulation resistance	50 Mor more at 500 VDC Between lead block and case
Temperature characteristic		±2%F.S. (25 oC reference)
Lead wire		cable 5 cores 3.5, 2 m

		Sectional area of conductor: 0.15 mm2(AWG26)

		Outside diameter of insulator: 1.0 mm
Standard		CE marking, RoHS

Applications:

Specially designed for automation scenarios, especially suitable for:

Precision handling: This product is engineered to delicately handle fragile, soft, or thin non-metallic materials like glass, electronic components, and plastic films with utmost care and accuracy.

High speed intermittent operations: Ideal for applications in packaging, printing, and robot assembly lines that demand quick and precise start-stop vacuum processes for seamless performance.

Energy saving sensitive production line: Experience significant cost savings on compressed air by up to 93%, making it an eco-friendly choice for energy-efficient production lines.

Support and Services:

SMC offers comprehensive product technical support and services for its Solenoid Valves line. Customers can benefit from expert guidance on installation, troubleshooting, and maintenance of the valves to ensure optimal performance. Additionally, SMC provides training programs and resources to help users maximize the functionality of their solenoid valves.
