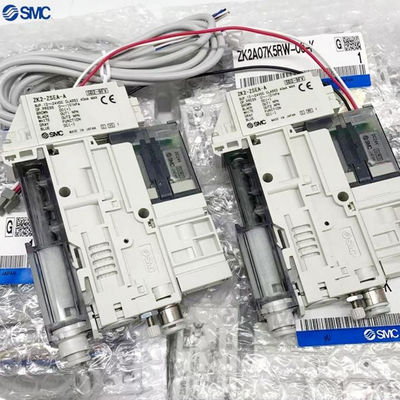

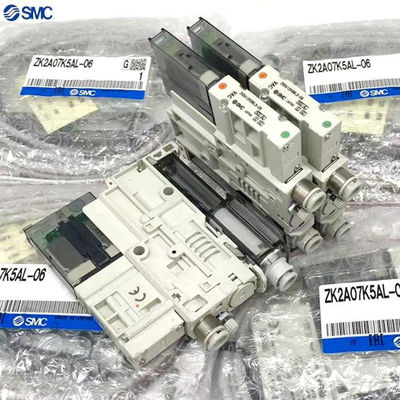

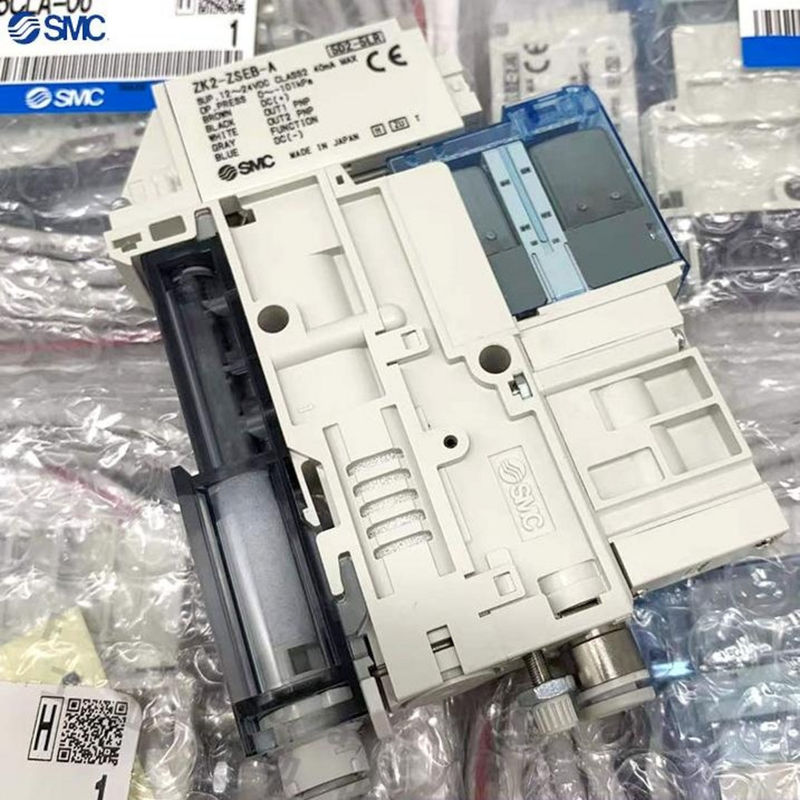

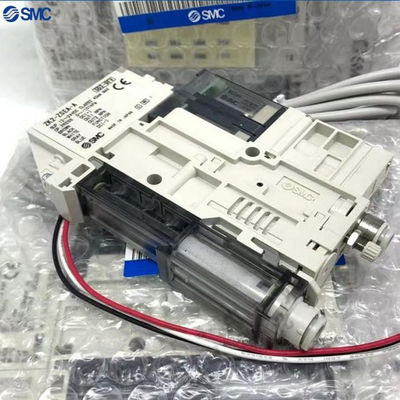

Name: SMC ZK2A15K5ALA-08 Vacuum Generator Ensures Maximum Performance with Short Circuit Protection
Brand: YW DKE TRADING COMPANY
SKU: ZK2A15K5ALA-08
Availability: InStock

Home Products SMC Solenoid Valves

SMC ZK2A15K5ALA-08 Vacuum Generator Ensures Maximum Performance with Short Circuit Protection

Product Details:

Place of Origin:	China
Brand Name:	SMC
Certification:	CE
Model Number:	ZK2A15K5ALA-08

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton /As The Clients Require
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000 pieces/1Month

Contact Now

Detailed Product Description

Proof Pressure:	500 KPa	Current Consumption:	40 MA Or Less
Short Circuit Protection:	Provided	Max. Applied Voltage:	DC26.4 V
Maximum Load Current:	80 MA	Min. Display Unit:	0.1 KPa

Product Description:

ZK2 Series Vacuum Generators Features

The ZK2 series features a two-stage vacuum generator structure, a departure from SMC's traditional single-stage design. This innovative setup, paired with intelligent digital pressure switches, results in remarkable energy-saving benefits.
Key highlights include:

Gas Consumption Reduction: Gas usage is slashed by more than 90%, thanks to the automatic gas supply cutoff once the desired vacuum level is attained. This feature leads to significant savings on operational expenses.
Suction Flow Rate Increase: The ZK2 series boasts a 50% boost in suction flow rate. This enhancement is made possible through the incorporation of an efficient supersonic nozzle (also known as the Laval nozzle), which optimizes airflow velocity to enhance suction efficiency.
Low Noise Operation: Operating at a mere 46dB (A), the ZK2 series ensures a quiet working environment. The inclusion of a high silencing muffler not only reduces exhaust noise but also contributes to a further surge in suction flow for improved performance.

Rated pressure range		100.0to-100.0 kPa
Set pressure range		105.0 to-105.0kPa
Proof pressure		500 kPa
Min. displayunit		0.1 kPa
Applicable fluid		Air, inert gas and non-flammable gas
Power supply voltage		24 VDC ±10%, ripple max. 10%pk-pk(with polarity protection )
Current consumption		40 mA or less
Switch		NPNor PNPopen collector

Output		OUT1: General-purpose,OUT2: Valve control
	Maximum load current	80 mA
	Max. applied voltage	DC26.4V
	Residual voltage	Max. 2V (at 80 mA load current)
	Response time	2.5 ms or less (response times available for anti-chattering function: : 20,

		100, 500, 1000 or 2000 ms)
	Short circuit protection	Provided
Repeatability		±0.2%F.S.±1 digit
Hyster	Hysteresis mode	Adjustable (can be set from 0) 1

esis
Display		3 1/2 digits, 7-segment display, color display (Red)
Indicator accuracy		+/-2%F.S., +/-1 digit (at ambient temperature 25+/-3 oC)
Indication LED		Light when ON OUT1: Green OUT2: Red
Environ	Enclosure	IP40
	Ambient temperature range	5 to 50 oC
ment	Withstandvoltage	1000 VACfor 1 minutebetween live parts and case insulation resistance
	Insulation resistance	50 Mor more at 500 VDC Between lead block and case
Temperature characteristic		±2%F.S. (25 oC reference)
Lead wire		cable 5 cores 3.5, 2 m

		Sectional area of conductor: 0.15 mm2(AWG26)

		Outside diameter of insulator: 1.0 mm
Standard		CE marking, RoHS

Applications:

Specially designed for automation scenarios, especially suitable for:
Precision handling: Absorb fragile, soft, or thin non-metallic materials (such as glass, electronic components, plastic films).
High speed intermittent operations: Packaging, printing, and robot assembly lines require rapid start-stop vacuum processes.
Energy-saving sensitive production line: By reducing gas consumption by 93%, the cost of compressed air is significantly reduced.

Support and Services:

Product Technical Support and Services for SMC Solenoid Valves:
SMC offers comprehensive technical support and services for their Solenoid Valves product line. This includes troubleshooting assistance, maintenance guidance, repair services, and product documentation resources. Customers can also access online resources such as manuals, datasheets, and technical specifications to aid in installation and operation.

FAQ:

Q: What is the brand name of the solenoid valves?
A: The brand name is SMC.
Q: Where are the solenoid valves manufactured?
A: The solenoid valves are manufactured in China.
Q: What certification do the solenoid valves have?
A: The solenoid valves are CE certified.
Q: What is the minimum order quantity for the solenoid valves?
A: The minimum order quantity is 1.
Q: What are the payment terms accepted for purchasing the solenoid valves?
A: The accepted payment terms are T/T, Western Union, and Paypal.
