YW DKE TRADING COMPANY
 |
| Place of Origin: | China |
| Brand Name: | SMC |
| Certification: | CE |
| Model Number: | ZK2A12K5ALA-08 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton /As The Clients Require |
| Delivery Time: | 1-7Work Days After Payment |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 5000 pieces/1Month |
| Max. Applied Voltage: | DC26.4 V | Current Consumption: | 40 MA Or Less |
|---|---|---|---|
| Short Circuit Protection: | Provided | Maximum Load Current: | 80 MA |
| Proof Pressure: | 500 KPa | Min. Display Unit: | 0.1 KPa |

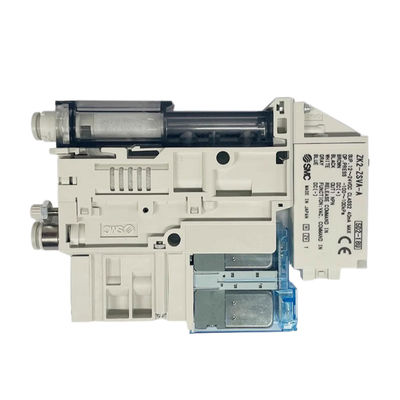

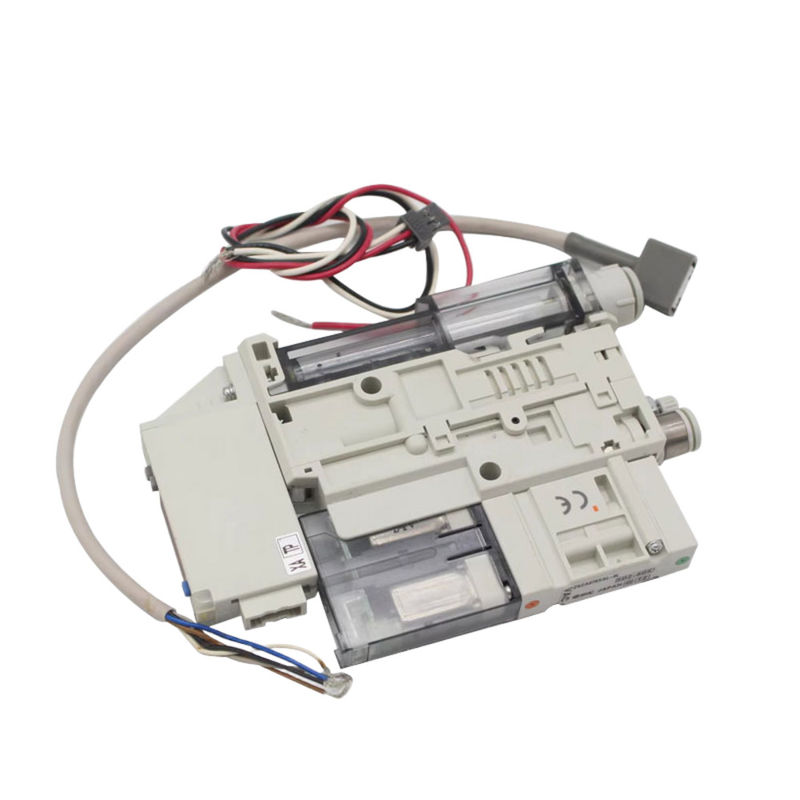

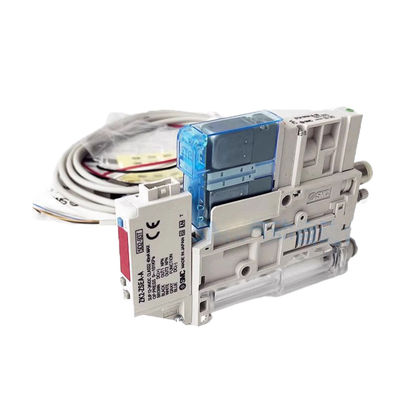

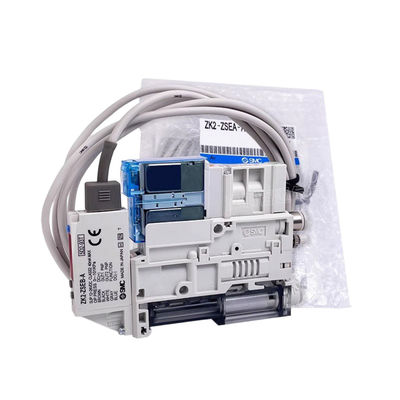

The ZK2 series adopts a two-stage vacuum generator structure (compared to SMC's traditional single-stage), combined with intelligent digital pressure switches, to achieve significant energy-saving effects:
Reduce gas consumption by over 90%: automatically cut off gas supply when the set vacuum degree is reached, significantly reducing operating costs.
50% increase in suction flow rate: By designing an efficient supersonic nozzle (Laval nozzle), the airflow velocity is optimized to improve suction efficiency.
Low noise operation (46dB (A)): The high silencing muffler reduces exhaust noise while further increasing suction flow.
| Rated pressure range | 100.0to-100.0 kPa | |
| Set pressure range | 105.0 to-105.0kPa | |
| Proof pressure | 500 kPa | |
| Min. displayunit | 0.1 kPa | |
| Applicable fluid | Air, inert gas and non-flammable gas | |
| Power supply voltage | 24 VDC ±10%, ripple max. 10%pk-pk(with polarity protection ) | |
| Current consumption | 40 mA or less | |
| Switch | NPNor PNPopen collector | |
| Output | OUT1: General-purpose,OUT2: Valve control | |
| Maximum load current | 80 mA | |
| Max. applied voltage | DC26.4V | |
| Residual voltage | Max. 2V (at 80 mA load current) | |
| Response time | 2.5 ms or less (response times available for anti-chattering function: : 20, | |
| 100, 500, 1000 or 2000 ms) | ||
| Short circuit protection | Provided | |
| Repeatability | ±0.2%F.S.±1 digit | |
| Hyster | Hysteresis mode | Adjustable (can be set from 0) 1 |
| esis | ||
| Display | 3 1/2 digits, 7-segment display, color display (Red) | |
| Indicator accuracy | +/-2%F.S., +/-1 digit (at ambient temperature 25+/-3 oC) | |
| Indication LED | Light when ON OUT1: Green OUT2: Red | |
| Environ | Enclosure | IP40 |
| Ambient temperature range | 5 to 50 oC | |
| ment | Withstandvoltage | 1000 VACfor 1 minutebetween live parts and case insulation resistance |
| Insulation resistance | 50 Mor more at 500 VDC Between lead block and case | |
| Temperature characteristic | ±2%F.S. (25 oC reference) | |
| Lead wire | cable 5 cores 3.5, 2 m | |
| Sectional area of conductor: 0.15 mm2(AWG26) | ||
| Outside diameter of insulator: 1.0 mm | ||
| Standard | CE marking, RoHS | |
Specially designed for automation scenarios, this product is particularly suitable for various applications:
Precision handling: This vacuum system is ideal for absorbing fragile, soft, or thin non-metallic materials like glass, electronic components, and plastic films.
High speed intermittent operations: It excels in tasks requiring rapid start-stop vacuum processes such as in packaging, printing, and robot assembly lines.
Energy saving in sensitive production lines: By achieving a 93% reduction in gas consumption, this system significantly lowers the operating costs of compressed air, making it an excellent choice for energy-efficient facilities.
SMC offers comprehensive product technical support and services for their Solenoid Valves line. This includes assistance with installation, troubleshooting, and maintenance of the valves. Additionally, SMC provides training and resources to help customers effectively utilize and optimize the performance of their solenoid valves.
Q: What is the brand name of the solenoid valves?
A: The brand name is SMC.
Q: Where are the solenoid valves manufactured?
A: The solenoid valves are manufactured in China.
Q: What certification do the solenoid valves have?
A: The solenoid valves are CE certified.
Q: What is the minimum order quantity for purchasing the solenoid valves?
A: The minimum order quantity is 1.
Q: What are the available payment terms for purchasing the solenoid valves?
A: The available payment terms include T/T, Western Union, and Paypal.
