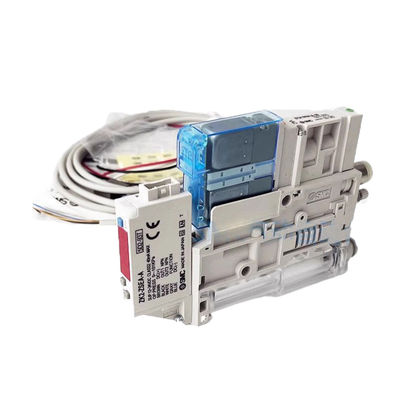

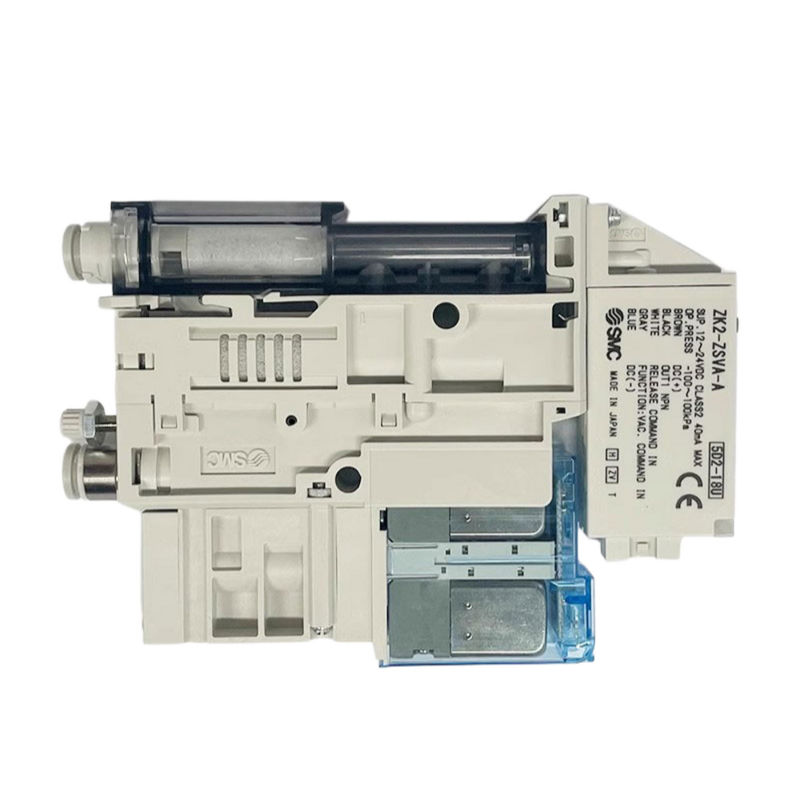

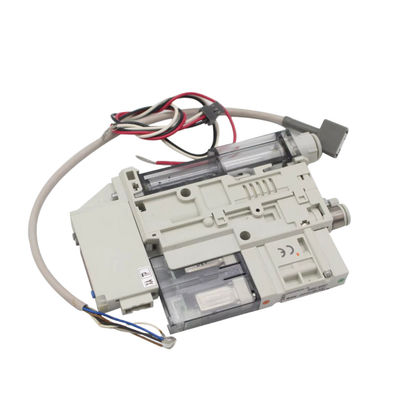

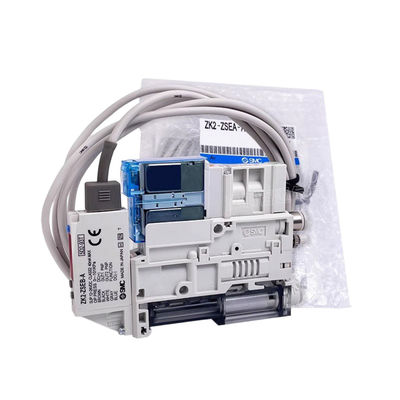

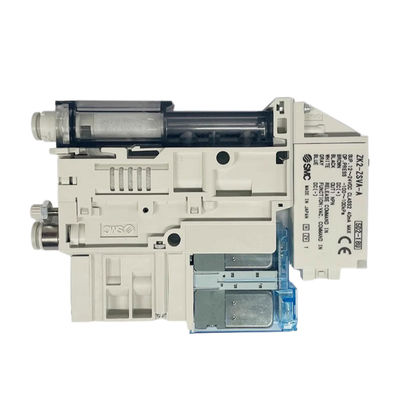

Name: ZK2A12K5ALA-06 SMC Low Air Consumption Ejector Solenoid Valves
Brand: YW DKE TRADING COMPANY
SKU: ZK2A12K5ALA-06
Availability: InStock

Home Products SMC Solenoid Valves

ZK2A12K5ALA-06 SMC Low Air Consumption Ejector Solenoid Valves

Product Details:

Place of Origin:	China
Brand Name:	SMC
Certification:	CE
Model Number:	ZK2A12K5ALA-06

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton /As The Clients Require
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000 pieces/1Month

Contact Now

Detailed Product Description

Min. Display Unit:	0.1 KPa	Max. Applied Voltage:	DC26.4 V
Maximum Load Current:	80 MA	Short Circuit Protection:	Provided
Proof Pressure:	500 KPa	Current Consumption:	40 MA Or Less

Product Description:

The ZK2 series features a two-stage vacuum generator structure, a departure from SMC's usual single-stage design. This innovation is enhanced by intelligent digital pressure switches, resulting in substantial energy savings:

Gas consumption reduction of over 90%: Gas supply is automatically halted upon reaching the desired vacuum level, leading to significant cost savings.
Increased suction flow rate by 50%: The incorporation of an efficient supersonic nozzle (Laval nozzle) optimizes airflow velocity, boosting suction efficiency.
Low noise operation (46dB (A)): The advanced silencing muffler diminishes exhaust noise, concurrently heightening suction flow.

Rated pressure range		100.0to-100.0 kPa
Set pressure range		105.0 to-105.0kPa
Proof pressure		500 kPa
Min. displayunit		0.1 kPa
Applicable fluid		Air, inert gas and non-flammable gas
Power supply voltage		24 VDC ±10%, ripple max. 10%pk-pk(with polarity protection )
Current consumption		40 mA or less
Switch		NPNor PNPopen collector

Output		OUT1: General-purpose,OUT2: Valve control
	Maximum load current	80 mA
	Max. applied voltage	DC26.4V
	Residual voltage	Max. 2V (at 80 mA load current)
	Response time	2.5 ms or less (response times available for anti-chattering function: : 20,

		100, 500, 1000 or 2000 ms)
	Short circuit protection	Provided
Repeatability		±0.2%F.S.±1 digit
Hyster	Hysteresis mode	Adjustable (can be set from 0) 1

esis
Display		3 1/2 digits, 7-segment display, color display (Red)
Indicator accuracy		+/-2%F.S., +/-1 digit (at ambient temperature 25+/-3 oC)
Indication LED		Light when ON OUT1: Green OUT2: Red
Environ	Enclosure	IP40
	Ambient temperature range	5 to 50 oC
ment	Withstandvoltage	1000 VACfor 1 minutebetween live parts and case insulation resistance
	Insulation resistance	50 Mor more at 500 VDC Between lead block and case
Temperature characteristic		±2%F.S. (25 oC reference)
Lead wire		cable 5 cores 3.5, 2 m

		Sectional area of conductor: 0.15 mm2(AWG26)

		Outside diameter of insulator: 1.0 mm
Standard		CE marking, RoHS

Applications:

Specially designed for automation scenarios, this vacuum system is particularly well-suited for specific applications, including:

Precision handling: It excels at delicately handling fragile, soft, or thin non-metallic materials like glass, electronic components, and plastic films.
High-speed intermittent operations: Industries such as packaging, printing, and robot assembly lines benefit from its ability to facilitate rapid start-stop vacuum processes.
Energy-saving sensitive production lines: The system significantly reduces gas consumption by 93%, resulting in substantial cost savings and efficiency improvements for compressed air usage.

Support and Services:

SMC Solenoid Valves offers comprehensive product technical support and services to ensure optimal performance and customer satisfaction. Our team of experts is available to provide troubleshooting assistance, maintenance guidance, and product training to help you get the most out of your solenoid valves. Additionally, we offer repair and replacement services to address any issues that may arise during the lifespan of the product. Trust SMC Solenoid Valves for reliable support and services to keep your operations running smoothly.

FAQ:

Q: What is the brand name of the solenoid valves?
A: The brand name of the solenoid valves is SMC.
Q: Where are the solenoid valves manufactured?
A: The solenoid valves are manufactured in China.
Q: What certifications do the solenoid valves have?
A: The solenoid valves are CE certified.
Q: What is the minimum order quantity for the solenoid valves?
A: The minimum order quantity for the solenoid valves is 1.
Q: What are the accepted payment terms for purchasing the solenoid valves?
A: The accepted payment terms for purchasing the solenoid valves are T/T, Western Union, and Paypal.
