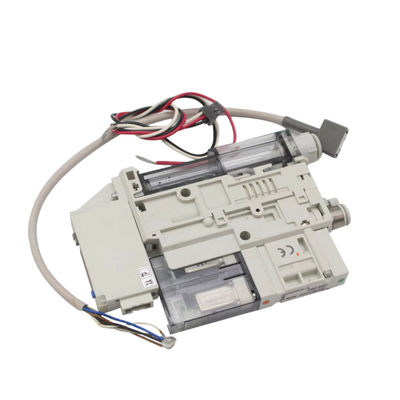

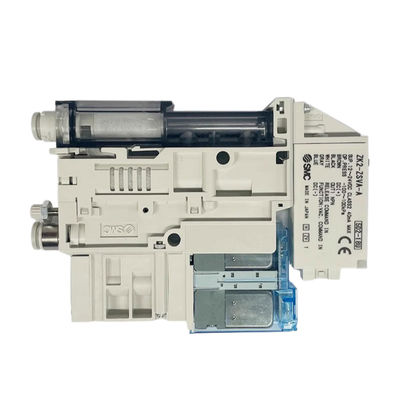

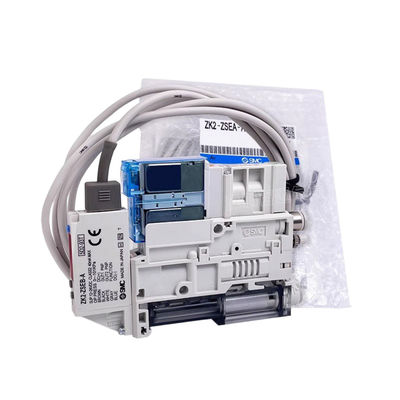

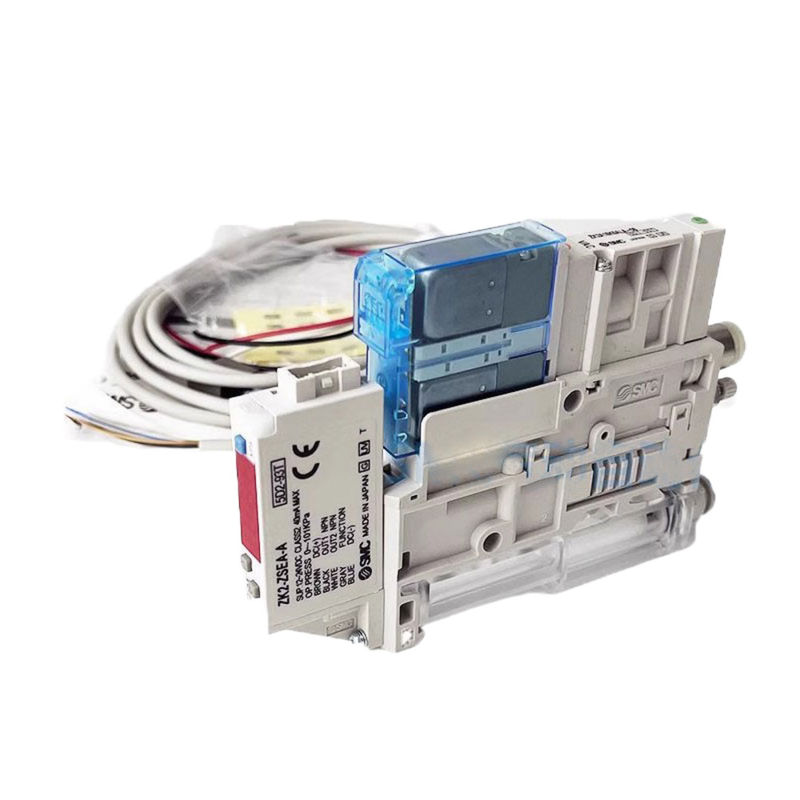

Name: Pneumatic Vacuum Generator ZK2A10K5ALA-08 SMC Low Air Consumption Ejector
Brand: YW DKE TRADING COMPANY
SKU: ZK2A10K5ALA-08
Availability: InStock

Home Products SMC Solenoid Valves

Pneumatic Vacuum Generator ZK2A10K5ALA-08 SMC Low Air Consumption Ejector

Product Details:

Place of Origin:	China
Brand Name:	SMC
Certification:	CE
Model Number:	ZK2A10K5ALA-08

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton /As The Clients Require
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000 pieces/1Month

Contact Now

Detailed Product Description

Proof Pressure:	500 KPa	Short Circuit Protection:	Provided
Min. Display Unit:	0.1 KPa	Max. Applied Voltage:	DC26.4 V
Maximum Load Current:	80 MA	Current Consumption:	40 MA Or Less

Product Description:

The ZK2 series introduces a two-stage vacuum generator structure, departing from SMC's conventional single-stage design. With the integration of intelligent digital pressure switches, the system can achieve remarkable energy-saving outcomes:
- Gas consumption reduction by over 90%: The system automatically halts gas supply upon attaining the predetermined vacuum level, leading to a substantial decrease in operational expenses.
- 50% enhancement in suction flow rate: Through the implementation of a proficient supersonic nozzle (Laval nozzle), the airflow velocity is fine-tuned to enhance suction efficiency.
- Low noise operation (46dB (A)): The inclusion of a high-performance silencing muffler diminishes exhaust noise, concurrently boosting suction flow.

Rated pressure range		100.0to-100.0 kPa
Set pressure range		105.0 to-105.0kPa
Proof pressure		500 kPa
Min. displayunit		0.1 kPa
Applicable fluid		Air, inert gas and non-flammable gas
Power supply voltage		24 VDC ±10%, ripple max. 10%pk-pk(with polarity protection )
Current consumption		40 mA or less
Switch		NPNor PNPopen collector

Output		OUT1: General-purpose,OUT2: Valve control
	Maximum load current	80 mA
	Max. applied voltage	DC26.4V
	Residual voltage	Max. 2V (at 80 mA load current)
	Response time	2.5 ms or less (response times available for anti-chattering function: : 20,

		100, 500, 1000 or 2000 ms)
	Short circuit protection	Provided
Repeatability		±0.2%F.S.±1 digit
Hyster	Hysteresis mode	Adjustable (can be set from 0) 1

esis
Display		3 1/2 digits, 7-segment display, color display (Red)
Indicator accuracy		+/-2%F.S., +/-1 digit (at ambient temperature 25+/-3 oC)
Indication LED		Light when ON OUT1: Green OUT2: Red
Environ	Enclosure	IP40
	Ambient temperature range	5 to 50 oC
ment	Withstandvoltage	1000 VACfor 1 minutebetween live parts and case insulation resistance
	Insulation resistance	50 Mor more at 500 VDC Between lead block and case
Temperature characteristic		±2%F.S. (25 oC reference)
Lead wire		cable 5 cores 3.5, 2 m

		Sectional area of conductor: 0.15 mm2(AWG26)

		Outside diameter of insulator: 1.0 mm
Standard		CE marking, RoHS

Applications:

Specially designed for automation scenarios, this vacuum system is particularly suitable for various specific applications:

Precision handling: It excels at delicately handling fragile, soft, or thin non-metallic materials, such as glass, electronic components, and plastic films.
High-speed intermittent operations: This vacuum system is ideal for packaging, printing, and robot assembly lines requiring swift start-stop vacuum processes.
Energy-saving sensitive production lines: With the ability to reduce gas consumption by 93%, it significantly lowers the cost of compressed air.
