YW DKE TRADING COMPANY
 |
| Place of Origin: | China |
| Brand Name: | SMC |
| Certification: | CE |
| Model Number: | ZK2A10K5ALA-06 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton /As The Clients Require |
| Delivery Time: | 1-7Work Days After Payment |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 5000 pieces/1Month |
| Max. Applied Voltage: | DC26.4 V | Min. Display Unit: | 0.1 KPa |
|---|---|---|---|
| Short Circuit Protection: | Provided | Maximum Load Current: | 80 MA |
| Proof Pressure: | 500 KPa | Current Consumption: | 40 MA Or Less |

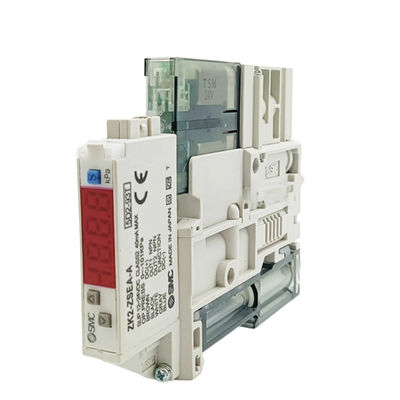

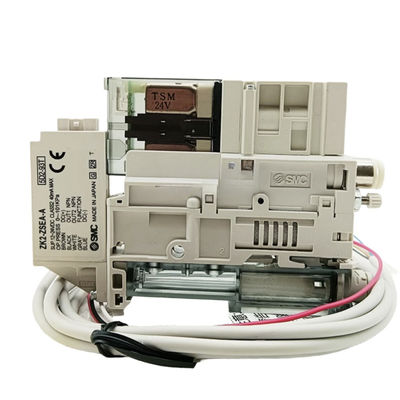

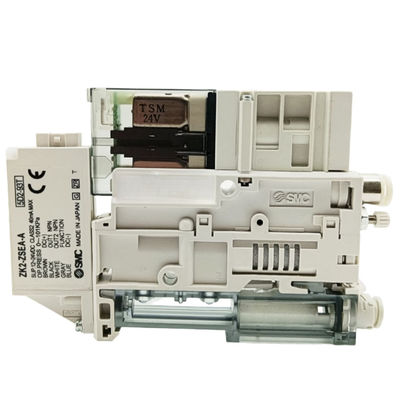

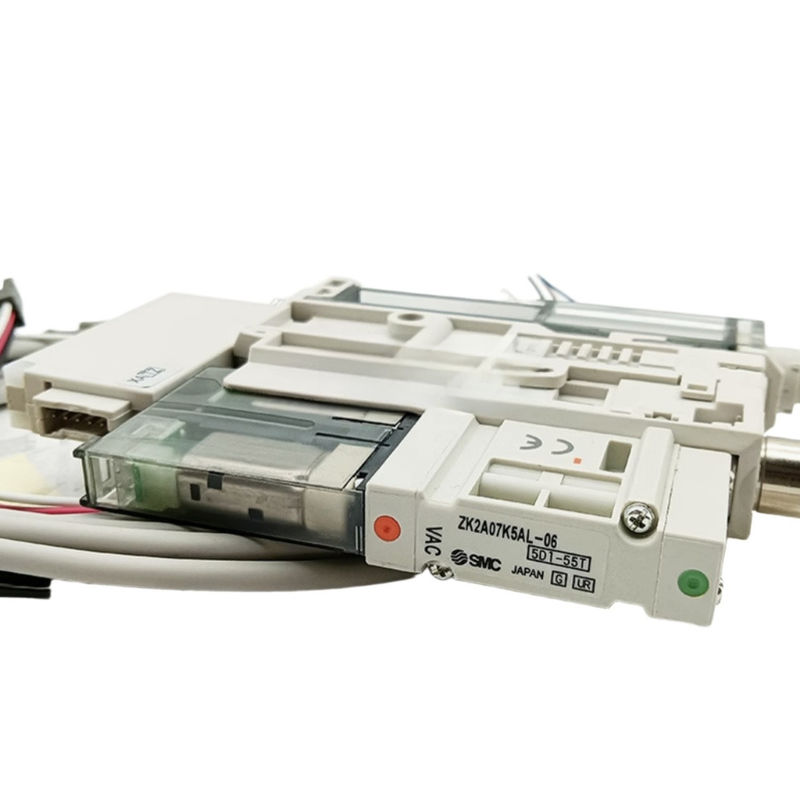

The ZK2 series features a two-stage vacuum generator structure, in contrast to SMC's traditional single-stage design. This series is equipped with intelligent digital pressure switches, enabling remarkable energy-saving benefits:
By automatically halting gas supply upon reaching the set vacuum level, gas consumption can be diminished by more than 90%, leading to substantial reductions in operational expenses.
An enhancement of 50% in suction flow rate is achieved through the utilization of an efficient supersonic nozzle (Laval nozzle), which optimizes airflow velocity to enhance suction efficacy.
Operating at a low noise level of 46dB (A), the ZK2 series is equipped with a high silencing muffler that decreases exhaust noise while simultaneously boosting suction flow.
| Rated pressure range | 100.0to-100.0 kPa | |
| Set pressure range | 105.0 to-105.0kPa | |
| Proof pressure | 500 kPa | |
| Min. displayunit | 0.1 kPa | |
| Applicable fluid | Air, inert gas and non-flammable gas | |
| Power supply voltage | 24 VDC ±10%, ripple max. 10%pk-pk(with polarity protection ) | |
| Current consumption | 40 mA or less | |
| Switch | NPNor PNPopen collector | |
| Output | OUT1: General-purpose,OUT2: Valve control | |
| Maximum load current | 80 mA | |
| Max. applied voltage | DC26.4V | |
| Residual voltage | Max. 2V (at 80 mA load current) | |
| Response time | 2.5 ms or less (response times available for anti-chattering function: : 20, | |
| 100, 500, 1000 or 2000 ms) | ||
| Short circuit protection | Provided | |
| Repeatability | ±0.2%F.S.±1 digit | |
| Hyster | Hysteresis mode | Adjustable (can be set from 0) 1 |
| esis | ||
| Display | 3 1/2 digits, 7-segment display, color display (Red) | |
| Indicator accuracy | +/-2%F.S., +/-1 digit (at ambient temperature 25+/-3 oC) | |
| Indication LED | Light when ON OUT1: Green OUT2: Red | |
| Environ | Enclosure | IP40 |
| Ambient temperature range | 5 to 50 oC | |
| ment | Withstandvoltage | 1000 VACfor 1 minutebetween live parts and case insulation resistance |
| Insulation resistance | 50 Mor more at 500 VDC Between lead block and case | |
| Temperature characteristic | ±2%F.S. (25 oC reference) | |
| Lead wire | cable 5 cores 3.5, 2 m | |
| Sectional area of conductor: 0.15 mm2(AWG26) | ||
| Outside diameter of insulator: 1.0 mm | ||
| Standard | CE marking, RoHS | |
Specially designed for automation scenarios, especially suitable for:
SMC Solenoid Valves Product Technical Support and Services:
Our technical support team is available to assist you with any questions or issues you may have regarding the installation, operation, or maintenance of your SMC Solenoid Valves. We provide comprehensive product information, troubleshooting guidance, and assistance with any technical challenges you may encounter.
Additionally, we offer a range of services to support our customers, including product training, maintenance programs, and on-site support. Our goal is to ensure that you get the most out of your SMC Solenoid Valves and that they continue to perform optimally throughout their lifespan.
Q: What is the brand name of the solenoid valves?
A: The brand name is SMC.
Q: Where is the place of origin for these solenoid valves?
A: These solenoid valves are manufactured in China.
Q: What certification do these solenoid valves have?
A: These solenoid valves are CE certified.
Q: What is the minimum order quantity for these solenoid valves?
A: The minimum order quantity is 1 piece.
Q: What are the available payment terms for purchasing these solenoid valves?
A: The available payment terms are T/T, Western Union, and Paypal.
