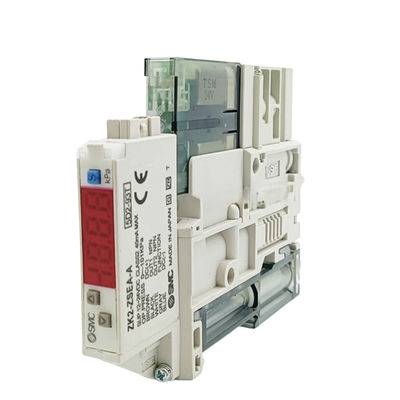

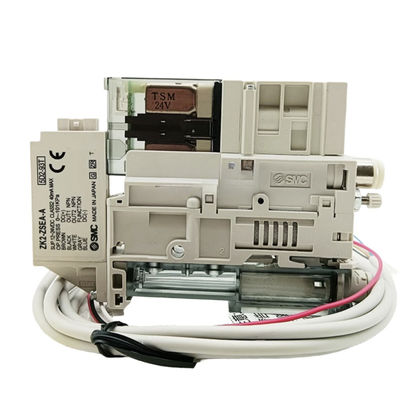

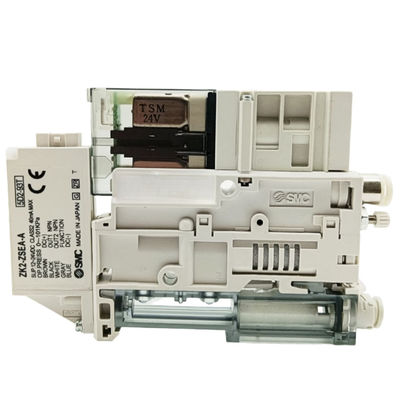

Name: ZK2A07K5ALA-06 Vacuum Generator Compact SMC Solenoid Valves
Brand: YW DKE TRADING COMPANY
SKU: ZK2A07K5ALA-06
Availability: InStock

Home Products SMC Solenoid Valves

ZK2A07K5ALA-06 Vacuum Generator Compact SMC Solenoid Valves

Product Details:

Place of Origin:	China
Brand Name:	SMC
Certification:	CE
Model Number:	ZK2A07K5ALA-06

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton /As The Clients Require
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000 pieces/1Month

Contact Now

Detailed Product Description

Current Consumption:	40 MA Or Less	Short Circuit Protection:	Provided
Maximum Load Current:	80 MA	Max. Applied Voltage:	DC26.4 V
Min. Display Unit:	0.1 KPa	Proof Pressure:	500 KPa

Product Description:

The ZK2 series introduces a two-stage vacuum generator structure, a departure from SMC's standard single-stage design. This innovative approach, combined with intelligent digital pressure switches, results in remarkable energy-saving benefits.

One of the key advantages of the ZK2 series is the reduction in gas consumption by more than 90%. The system is designed to automatically shut off the gas supply once the desired level of vacuum is achieved, leading to significant cost savings in operations.

Moreover, the ZK2 series boasts a 50% increase in suction flow rate. This improvement is made possible by the incorporation of an efficient supersonic nozzle, known as the Laval nozzle, which optimizes airflow velocity to enhance suction efficiency.

Furthermore, the ZK2 series operates at low noise levels, emitting only 46dB (A). This is achieved through the utilization of a high silencing muffler that not only reduces exhaust noise but also enhances suction flow for improved performance.

Rated pressure range		100.0to-100.0 kPa
Set pressure range		105.0 to-105.0kPa
Proof pressure		500 kPa
Min. displayunit		0.1 kPa
Applicable fluid		Air, inert gas and non-flammable gas
Power supply voltage		24 VDC ±10%, ripple max. 10%pk-pk(with polarity protection )
Current consumption		40 mA or less
Switch		NPNor PNPopen collector

Output		OUT1: General-purpose,OUT2: Valve control
	Maximum load current	80 mA
	Max. applied voltage	DC26.4V
	Residual voltage	Max. 2V (at 80 mA load current)
	Response time	2.5 ms or less (response times available for anti-chattering function: : 20,

		100, 500, 1000 or 2000 ms)
	Short circuit protection	Provided
Repeatability		±0.2%F.S.±1 digit
Hyster	Hysteresis mode	Adjustable (can be set from 0) 1

esis
Display		3 1/2 digits, 7-segment display, color display (Red)
Indicator accuracy		+/-2%F.S., +/-1 digit (at ambient temperature 25+/-3 oC)
Indication LED		Light when ON OUT1: Green OUT2: Red
Environ	Enclosure	IP40
	Ambient temperature range	5 to 50 oC
ment	Withstandvoltage	1000 VACfor 1 minutebetween live parts and case insulation resistance
	Insulation resistance	50 Mor more at 500 VDC Between lead block and case
Temperature characteristic		±2%F.S. (25 oC reference)
Lead wire		cable 5 cores 3.5, 2 m

		Sectional area of conductor: 0.15 mm2(AWG26)

		Outside diameter of insulator: 1.0 mm
Standard		CE marking, RoHS

Applications:

Specially designed for automation scenarios, this vacuum system is particularly suitable for a variety of purposes:

Precision handling: This system excels at absorbing fragile, soft, or thin non-metallic materials, such as glass, electronic components, and plastic films.
High-speed intermittent operations: It is ideal for packaging, printing, and robot assembly lines that require quick start-stop vacuum processes to maintain efficiency.
Energy-saving for sensitive production lines: By decreasing gas consumption by 93%, this system significantly reduces compressed air costs, making it perfect for energy-sensitive production environments.
