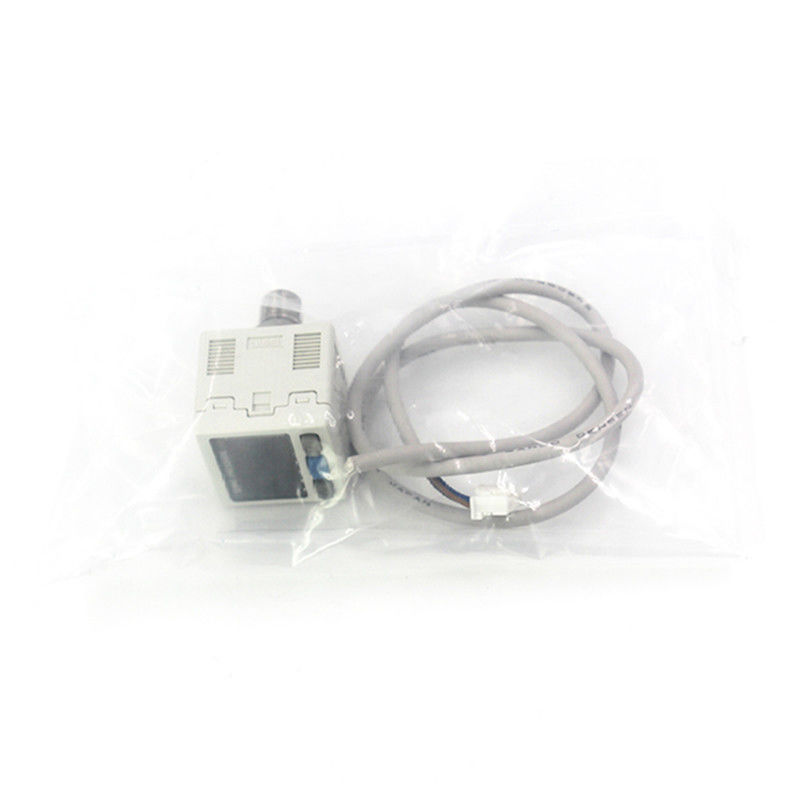

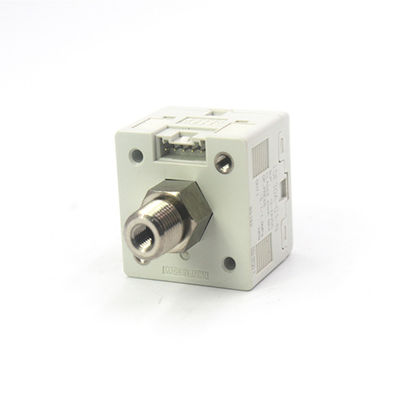

SMC ZSE30AF-01-C-A1 Digital Negative Pressure Gauge ZSE30AF-01-C

SMC Digital Pressure Gauges Overview

SMC digital pressure gauges come in multiple series, each with variations in measurement range, functional configurations, and installation methods. The common series are as follows:

Features: Basic digital gauge with analog output, high cost-effectiveness.

Application: Pressure monitoring in general pneumatic systems.

Features: Accuracy up to ±0.5%FS, supports digital communication (e.g., RS-485), some models with USB interfaces.

Application: Precision control and laboratory calibration.

Features: Specialized for negative pressure measurement (vacuum degree), fast response, suitable for scenarios like suction cups and vacuum generators.

Features: Supports multi-stage alarms, peak hold, data logging, and graphical displays (e.g., trend curves).

Application: Pressure monitoring and data analysis in complex systems.

• ISE Series (Economical Type)
• PSE Series (High-Precision Type)
• ZSE Series (Vacuum Type)
• ISE30/50 Series (Intelligent Type)

Technical Parameters:

Applications:

Measurement Range: It is important to choose the appropriate measurement range to prevent damage caused by exceeding the limits. Selecting a range that aligns with the actual pressure range is crucial.

Accuracy Requirements: For industrial applications, an accuracy of ±1%FS is typically sufficient, while precision scenarios may require accuracy of ±0.5%FS or higher. Choosing the right level of accuracy is essential for meeting performance needs.

Output Signals: When selecting pressure sensors, it is necessary to consider whether analog or digital output signals are needed based on the requirements of the control system in use. Matching the output signals to the control system is vital for seamless integration.

Environmental Adaptability: Factors such as temperature, humidity, and vibration levels should be taken into account when choosing pressure sensors. Opt for models with appropriate protection levels that can withstand the environmental conditions they will be exposed to.

Installation Method: Ensure that the chosen pressure sensors match the equipment interfaces, such as thread types, and that there is adequate installation space available. Proper installation is key to the accurate and reliable performance of the sensors.

Packing and Shipping:

Product Packaging and Shipping for SMC Solenoid Valves:

Our SMC Solenoid Valves are carefully packaged to ensure safe delivery to our customers. Each valve is wrapped in protective material and placed in a sturdy cardboard box to prevent any damage during shipping.

For shipping, we use trusted carriers to deliver your order promptly and securely. You can track your package and expect it to arrive in excellent condition.
