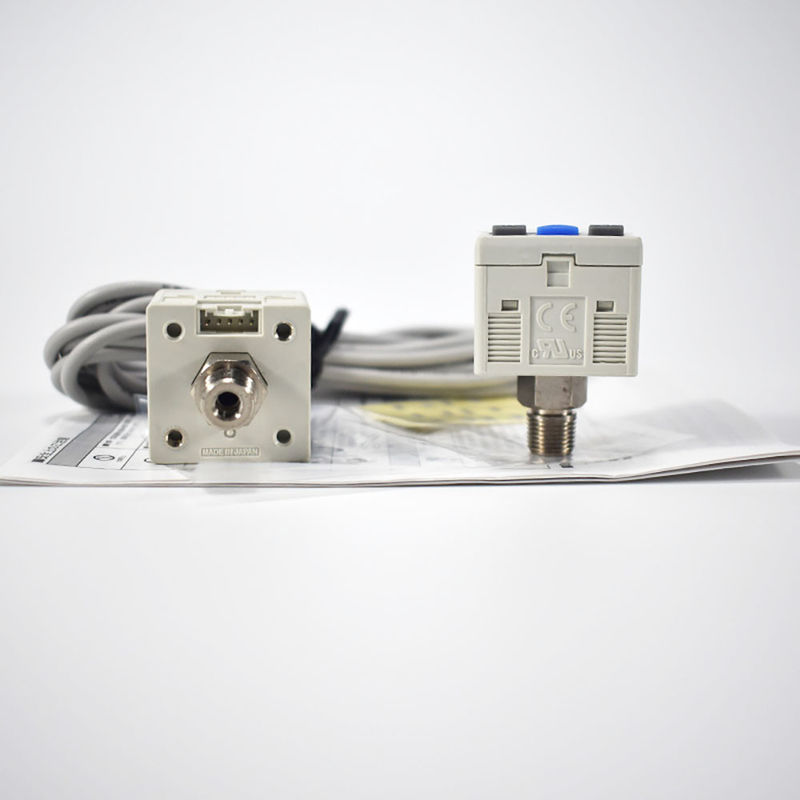

SMC type vacuum negative pressure gauge ZSE30AF-01-P ZSE30AF-01-N/P/C/D-L

SMC type vacuum negative pressure gauge ZSE30AF-01-P ZSE30AF-01-N/P/C/D-L

  • SMC type vacuum negative pressure gauge ZSE30AF-01-P ZSE30AF-01-N/P/C/D-L
  • SMC type vacuum negative pressure gauge ZSE30AF-01-P ZSE30AF-01-N/P/C/D-L
SMC type vacuum negative pressure gauge ZSE30AF-01-P ZSE30AF-01-N/P/C/D-L
Product Details:
Place of Origin: China
Brand Name: SMC
Certification: CE
Model Number: ZSE30AF-01-P
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton /As The Clients Require
Delivery Time: 1-7Work Days After Payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000 pieces/1Month
Contact Now
Detailed Product Description
Protection Level: IP40, IP65 (waterproof And Dustproof Types) Measurement Range: -100kPa ~ 0 ~ 60MPa (optional Per Model)
Power Supply: DC 12-24V, AC 100-240V (optional) Operating Temperature: -10℃ ~ 60℃ (some Models Support Wide Temperature Ranges)
Display Accuracy: ±1%FS, ±0.5%FS Interface Type: Rc, NPT, G Threads, Et
Sampling Frequency: 50ms ~ 1s

Product Description:

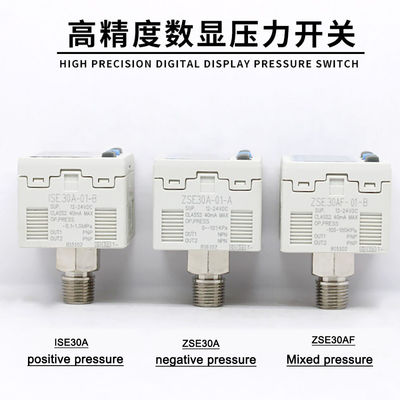

SMC digital pressure gauges come in multiple series, each with their own unique features and applications. These series primarily differ in measurement range, functional configurations, and installation methods.

Some common series include:

  • ISE Series (Economical Type)
    Features: Basic digital gauge with analog output, offering high cost-effectiveness.
    Application: Ideal for pressure monitoring in general pneumatic systems.
  • PSE Series (High-Precision Type)
    Features: Accuracy up to ±0.5%FS, supports digital communication such as RS-485, and some models even come with USB interfaces.
    Application: Perfect for precision control and laboratory calibration.
  • ZSE Series (Vacuum Type)
    Features: Specialized for negative pressure measurement (vacuum degree) with fast response times, suitable for applications like suction cups and vacuum generators.
  • ISE30/50 Series (Intelligent Type)
    Features: Equipped with multi-stage alarms, peak hold, data logging, and graphical displays like trend curves.
    Application: Designed for pressure monitoring and data analysis in complex systems.


Technical Parameters:

Technical Parameter Value
Protection Level IP40, IP65 (waterproof and dustproof types)
Display Accuracy ±1%FS, ±0.5%FS
Measurement Range -100kPa ~ 0 ~ 60MPa (optional per model)
Operating Temperature -10℃ ~ 60℃ (some models support wide temperature ranges)
Sampling Frequency 50ms ~ 1s
Power Supply DC 12-24V, AC 100-240V (optional)
Interface Type Rc, NPT, G Threads, Et
SMC type vacuum negative pressure gauge ZSE30AF-01-P ZSE30AF-01-N/P/C/D-L 0

Applications:

Measurement Range: It is important to select the appropriate range based on the actual pressure being measured in order to prevent damage from over-ranging.

Accuracy Requirements: For industrial applications, it is recommended to choose a pressure sensor with an accuracy of ±1% Full Scale (FS). For precision scenarios, a higher accuracy of ±0.5% FS or better should be considered.

Output Signals: When selecting a pressure sensor, it is essential to determine whether analog or digital output signals are required based on the control system's specifications and compatibility.

Environmental Adaptability: Factors such as temperature, humidity, and vibration should be taken into account when choosing a pressure sensor. Models with appropriate protection levels should be selected to ensure optimal performance in varying environmental conditions.

Installation Method: To ensure proper installation, it is important to match the pressure sensor's equipment interfaces, such as thread types, and consider the available installation space for seamless integration into the system.



Packing and Shipping:

Product Name: SMC Solenoid Valves

Description: High-quality solenoid valves manufactured by SMC, known for their reliability and durability.

Package Contents: - 1 x SMC Solenoid Valve - User Manual

Shipping Information: - Ships within 1-2 business days - Shipping method: Standard Shipping - Estimated delivery: 5-7 business days
