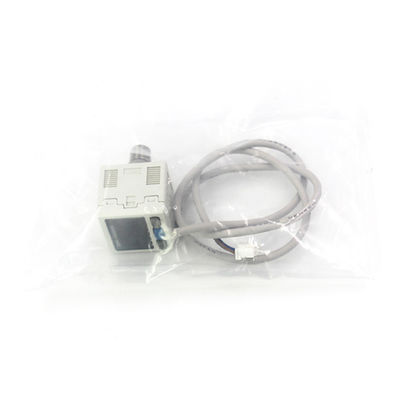

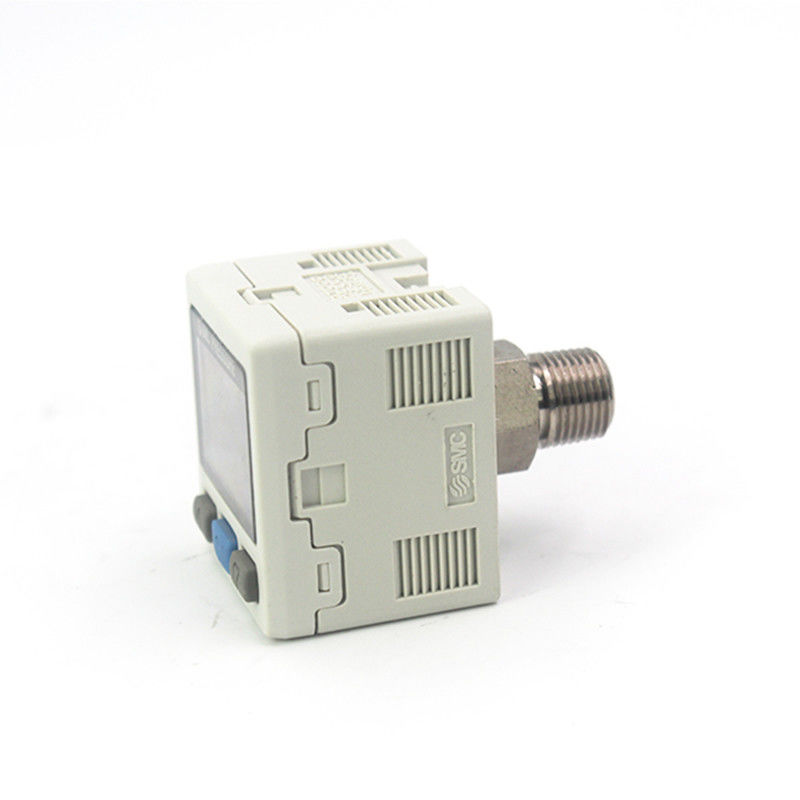

ZSE30AF-01-N Mixed pressure digital pressure switch SMC

ZSE30AF-01-N Mixed pressure digital pressure switch SMC

  • ZSE30AF-01-N Mixed pressure digital pressure switch SMC
  • ZSE30AF-01-N Mixed pressure digital pressure switch SMC
ZSE30AF-01-N Mixed pressure digital pressure switch SMC
Product Details:
Place of Origin: China
Brand Name: SMC
Certification: CE
Model Number: ZSE30AF-01-N
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton /As The Clients Require
Delivery Time: 1-7Work Days After Payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000 pieces/1Month
Contact Now
Detailed Product Description
Power Supply: DC 12-24V, AC 100-240V (optional) Operating Temperature: -10℃ ~ 60℃ (some Models Support Wide Temperature Ranges)
Measurement Range: -100kPa ~ 0 ~ 60MPa (optional Per Model) Protection Level: IP40, IP65 (waterproof And Dustproof Types)
Interface Type: Rc, NPT, G Threads, Et Display Accuracy: ±1%FS, ±0.5%FS
Sampling Frequency: 50ms ~ 1s

Product Description:

SMC digital pressure gauges are available in multiple series, each with variations in measurement range, functional configurations, and installation methods. Some of the common series include:

Features: Basic digital gauge with analog output, offering high cost-effectiveness.

Application: Ideal for pressure monitoring in general pneumatic systems.

Features: Offers high accuracy up to ±0.5%FS, supports digital communication such as RS-485, and some models come with USB interfaces.

Application: Suitable for precision control and laboratory calibration.

Features: Specifically designed for negative pressure measurement (vacuum degree), with fast response time, making it suitable for applications like suction cups and vacuum generators.

Features: Equipped with features like multi-stage alarms, peak hold function, data logging, and graphical displays such as trend curves.

Application: Ideal for pressure monitoring and data analysis in complex systems.

  • ISE Series (Economical Type)
  • PSE Series (High-Precision Type)
  • ZSE Series (Vacuum Type)
  • ISE30/50 Series (Intelligent Type)


Technical Parameters:

Interface Type Rc, NPT, G Threads, Et
Power Supply DC 12-24V, AC 100-240V (optional)
Display Accuracy ±1%FS, ±0.5%FS
Protection Level IP40, IP65 (waterproof And Dustproof Types)
Operating Temperature -10℃ ~ 60℃ (some Models Support Wide Temperature Ranges)
Sampling Frequency 50ms ~ 1s
Measurement Range -100kPa ~ 0 ~ 60MPa (optional Per Model)
ZSE30AF-01-N Mixed pressure digital pressure switch SMC 0

Applications:

Measurement Range: When selecting the measurement range, it is essential to consider the actual pressure range in order to prevent damage resulting from over-ranging.

Accuracy Requirements: For industrial applications, it is recommended to choose an accuracy of ±1%FS, while for precision scenarios, an accuracy of ±0.5%FS or higher should be selected.

Output Signals: Depending on the requirements of the control system, it is important to choose between analog or digital outputs to ensure compatibility.

Environmental Adaptability: Factors such as temperature, humidity, and vibration should be taken into consideration when selecting a pressure sensor, in order to choose a model that offers appropriate protection levels.

Installation Method: Ensure that the equipment interfaces, such as thread types, and installation space are compatible with the pressure sensor to guarantee smooth installation and operation.



Packing and Shipping:

Product Name: SMC Solenoid Valves

Description: High-quality solenoid valves manufactured by SMC, a leading company in the industry.

Specifications: Various sizes and configurations available to suit different applications.

Package Includes: Solenoid valve, installation instructions, warranty card.

Shipping: This product will be carefully packaged and shipped to ensure safe delivery to your location.
