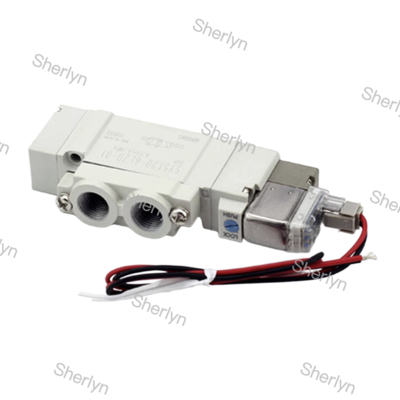

SMC Solenoid Valve SY3120-6LZD-C4 SY3000 Series 12VDC

Product Description:

The SMC SY series solenoid valves consist of sub series 5, including SY3000, SY5000, SY7000, and SY9000. These sub series differ in specific performance parameters to cater to various application needs. The SMC SY series is a well-designed and high-performance pilot operated five-way solenoid valve that plays a crucial role in pneumatic control within industrial automation.

This series is recognized for its high reliability, compact structure, low power consumption, and outstanding flow characteristics.

Core structure and working principle:

The SY series operates on a pilot-operated principle. It utilizes a small pilot solenoid valve to generate pilot pressure, which then drives the main spool for directional changes. This design allows for the control of a larger main airflow with minimal electromagnetic force, resulting in low power consumption and rapid response.

The valve body of the SY series features a five-port design, comprising 1 pressure inlet, 2 working ports, and 2 exhaust ports. This setup is well-suited for controlling the reciprocating motion of double-acting cylinders. Additionally, its centralized exhaust structure aids in reducing oil mist emissions and noise levels while promoting a clean working environment.

Applications:

The SMC SY series solenoid valve , known for its compact size, efficiency, and reliability, finds extensive use in pneumatic control systems across various industrial automation sectors. It is particularly favored in scenarios requiring control over dual-acting cylinders for directional functions.

The core application domain of SY series solenoid valves is in industrial automation production lines . These valves are commonly employed to direct the movements and actions of pneumatic actuators like cylinders, motors, and grippers. They serve as vital components in achieving motion control in automated production setups, assembly systems, material-handling units, robotic arms, and other similar environments.

In automobile manufacturing facilities, SY series solenoid valves, such as the SY5120 model , play a crucial role in governing the motions of welding robots. These valves boast quick response times and superior reliability, thereby enhancing production efficiency and reducing equipment downtime.

Within the food and packaging sector , SY series solenoid valves, like the SY7120-6LZD-M5 model , are widely utilized to control pneumatic actuators in food packaging lines. Their impeccable sealing capabilities and resistance to contamination make them compliant with stringent food safety standards.

In industries such as paper making and vacuum technology , SY series solenoid valves find application on the same manifold. This setup enables centralized gas supply and individualized control of the valves, simplifying maintenance procedures and enhancing production efficiency.

Moreover, these valves find prevalent use in almost all industrial applications involving pneumatic controls, including metallurgy, chemical processing, electronics, textile machinery, and more.

Configured Specifications

• Type

  Solenoid Valves

• Application

  Single Use

• Number of Ports

  5-Port Valve

• Mounting Orientation

  Direct

• Specifications

  Standard / Lubrication Free

• Number of Solenoids

  [Single] Single

• Switching Type

  2-Position Exhaust

• Status at Power Off

  Self-Retaining

• Voltage

  DC12V

• Pipe Port Type

  One-Touch Plumbing

Support and Services:

Our product technical support team for SMC Solenoid Valves is dedicated to providing assistance with any technical issues or questions you may have regarding the product. Our team of experts is available to help troubleshoot problems, provide product specifications, and offer guidance on proper installation and maintenance.

In addition to technical support, we also offer a range of services for SMC Solenoid Valves, including repair and maintenance services, product training, and customized solutions to meet your specific needs. Our goal is to ensure that you get the most out of your SMC Solenoid Valves and that they continue to perform at their best.

Packing and Shipping:

Product: SMC Solenoid Valves

Description: High-quality solenoid valves from SMC that are reliable and durable.

Packaging: Each solenoid valve is carefully packed in a protective cardboard box to prevent damage during shipping.

Shipping: We offer fast and secure shipping options to ensure your SMC Solenoid Valves reach you safely and on time.
