Brand Name: | SMC |
Certification: | CE |

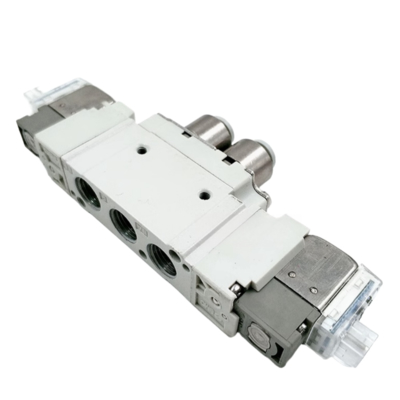

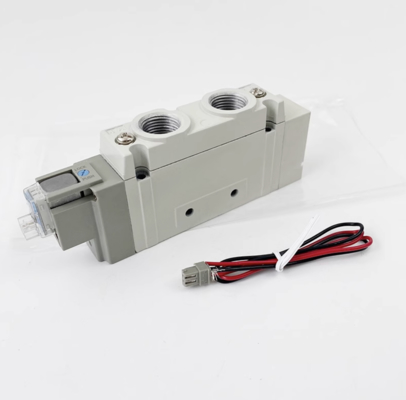

Model Number: | SY5120-6LZD-01 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiation |
Packaging Details: | Carton /As The Clients Require |
Delivery Time: | 1-7Work Days After Payment |
Payment Terms: | T/T,Western Union,Paypal |
Supply Ability: | 5000 Pieces/1Month |
Brand Name: | SMC | Type: | Solenoid Valves |
---|---|---|---|
Voltage: | DC12V | Mounting Orientation: | Direct |
Model NO.: | SY5120-6LZD-01 | Number Of Ports: | 5-Port Valve |
Highlight: | SMC SY5000 solenoid valve DC12V,SY5120-6LZD-01 electromagnetic valve,SMC solenoid valve with warranty |
The SMC SY series solenoid valves consist of several sub series, including SY3000, SY5000, SY7000, and SY9000. Each sub series has unique performance parameters tailored to different application requirements. The SMC SY series serves as a meticulously designed and high-performance pilot operated five-way solenoid valve. Widely utilized in the realm of industrial automation, this series is recognized for its exceptional reliability, compact structure, low power consumption, and superb flow characteristics.
Core Structure and Working Principle:
The SY series operates based on a pilot operated principle, where pilot pressure is generated via a small pilot solenoid valve to induce directional changes in the main spool. This design allows for efficient control of a larger main airflow with minimal electromagnetic force, resulting in low power consumption and rapid response times. Featuring a five-port design (1 pressure inlet, 2 working ports, 2 exhaust ports), the valve body is particularly suitable for managing the reciprocating motion of double-acting cylinders. Furthermore, its centralized exhaust configuration aids in reducing oil mist emissions and noise levels, promoting a clean working environment.
The SMC SY series solenoid valve , known for its compact, efficient, and reliable characteristics, is extensively utilized in pneumatic control systems across various industrial automation sectors. It is particularly prominent in scenarios requiring control over dual acting cylinders for directional regulation.
In industrial automation production lines , the SY series solenoid valve plays a pivotal role. It is commonly employed to govern the direction change and operation of diverse pneumatic actuators (e.g., cylinders, pneumatic motors, pneumatic grippers) and serves as a crucial element in achieving motion control in automated production lines, assembly equipment, material handling, robotic arms, among other areas.
Within the automobile manufacturing industry , facilities make use of SY series solenoid valves (e.g., SY5120 model) to manage the movement of welding robot arms. Their swift response capability and high reliability contribute to enhancing production efficiency and lowering equipment failure rates.
Within the food and packaging industry , food processing plants and packaging lines employ SY series solenoid valves (e.g., SY7120-6LZD-M5 model) for pneumatic actuator control in food packaging lines. Their exceptional sealing performance and pollution resistance align with food safety standards.
Paper making and vacuum technology sectors also benefit from utilizing SY series solenoid valves, which are mounted on the same pallet and find applications in industries like paper making and vacuum technology. Implementing an assembly board installation approach facilitates centralized gas supply, individual solenoid valve control, eases maintenance procedures, and boosts production efficiency.
Furthermore, in other industrial fields , this series of valves finds broad applications across various sectors involving pneumatic control, including metallurgy, chemical industry, electronic equipment, textile machinery, among others.
Type | Solenoid Valves | Application | Single Unit |
---|---|---|---|
Mounting Orientation | Direct | Voltage | DC12V |
Specification | Standard / Lubrication Free | Valve Type | 5-Port Valve |
Actuation | [Single] Single | Status at Power Off | Self-Recovery (Pressure Differential Return) |
Valve Positions | 2-Position Exhaust | Applicable Cylinder Diameter(Ø) | 80 or Less |
Pipe Port Type | [Rc (R)] Rc | Port Size | 1/8" |
SMC Solenoid Valves product technical support and services include:
- Troubleshooting assistance for installation and operation issues
- Repair and maintenance services for solenoid valves
- Product documentation and manuals for reference
- Training and educational resources on solenoid valves
- Warranty information and support for product defects
Product Packaging for SMC Solenoid Valves:
The SMC Solenoid Valves are carefully packaged in sturdy cardboard boxes to ensure safe transportation. Each valve is securely cushioned with foam inserts to prevent any damage during shipping.
Shipping Information:
Orders of the SMC Solenoid Valves are typically shipped within 1-2 business days. We offer various shipping options including standard ground shipping and expedited shipping for urgent orders. Customers will receive a tracking number to monitor the delivery status of their package.
