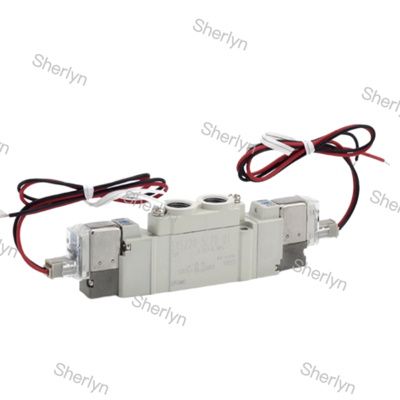

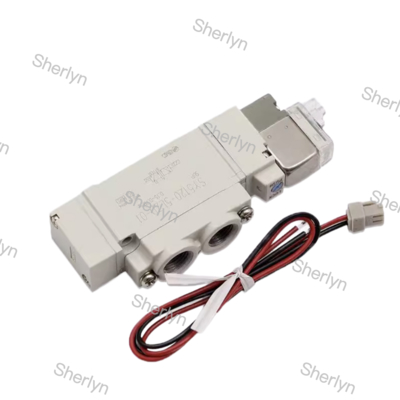

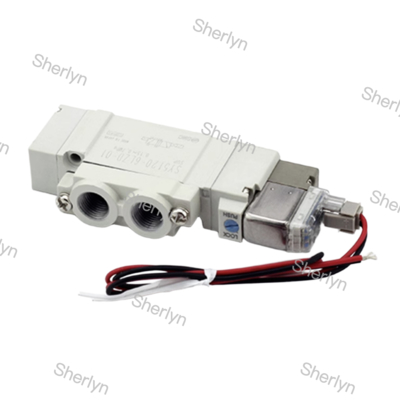

SMC 5-Port Solenoid Valve SY3220-6LZD-M5 SY3000 Series DC12V

Product Description:

The SMC SY series solenoid valves consist of several sub series, including the SY3000, SY5000, SY7000, and SY9000. Each sub series offers varying performance parameters to cater to different application requirements. The SMC SY series serves as a meticulously designed, high-performance pilot-operated five-way solenoid valve. Widely utilized in industrial automation, this series is esteemed for its exceptional reliability, sleek design, energy efficiency, and superior flow characteristics.

Core structure and working principle:
In the SY series, a pilot-operated principle is employed. Pilot pressure is generated by a small pilot solenoid valve to drive the main spool and alter direction. This configuration allows for controlling a larger main airflow with minimal electromagnetic force, ensuring low power consumption and swift responses. Featuring a five-port design (1 pressure inlet, 2 working ports, 2 exhaust ports), the valve body is particularly suitable for governing the reciprocating movement of double-acting cylinders. The centralized exhaust structure aids in curbing oil mist emissions and noise levels, creating a cleaner working environment.

Applications:

The SMC SY series solenoid valve , with its compact, efficient, and reliable characteristics, is widely used in pneumatic control systems in various industrial automation fields, especially in situations where dual acting cylinders need to be controlled for directional control.

Industrial automation production line: This is the core application area of SY series solenoid valves. It is commonly used to control the direction change and action of various pneumatic actuators (such as cylinders, pneumatic motors, pneumatic grippers, etc.), and is a key component for achieving motion control in automated production lines, assembly equipment, material handling, robotic arms, and other areas.

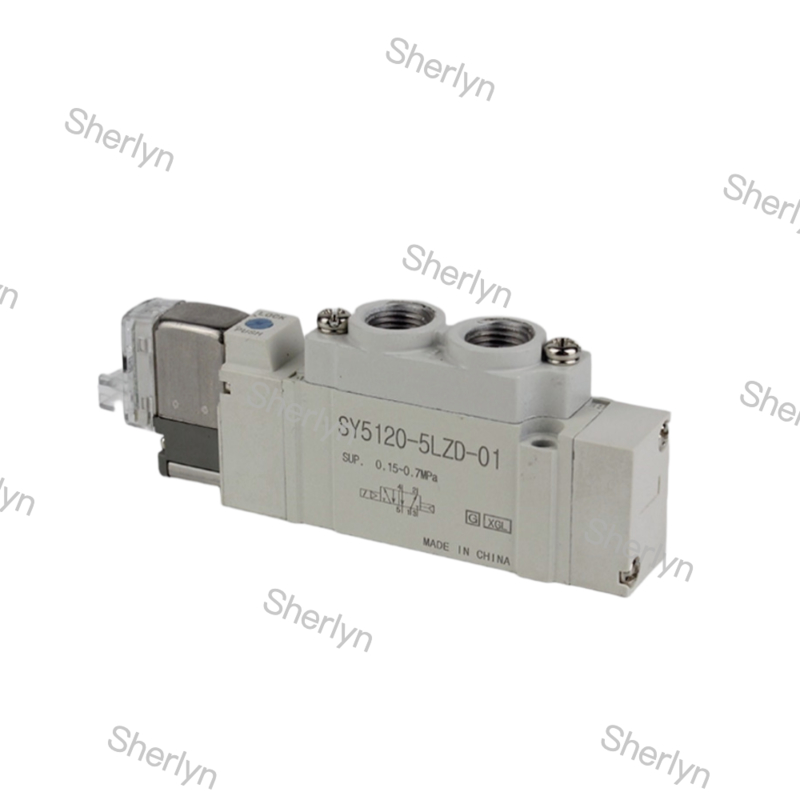

Automobile manufacturing industry: In automobile manufacturing plants, SY series solenoid valves (such as SY5120 model) can be used to control the movement of welding robot arms. Its rapid response capability and high reliability help improve production efficiency and reduce equipment failure rates.

Food and packaging industry: Food processing plants and packaging lines will use SY series solenoid valves (such as SY7120-6LZD-M5 model) for pneumatic actuator control on food packaging lines. Its excellent sealing performance and anti pollution ability can meet the requirements of food safety standards.

Paper making and vacuum technology: SY series solenoid valves can be installed on the same pallet and are used in industries such as paper making and vacuum technology. The installation method of the assembly board facilitates centralized gas supply and individual control of the solenoid valve, facilitates maintenance, and improves production efficiency.

Other industrial fields: In addition, this series of valves may also be widely used in almost all industrial applications involving pneumatic control, such as metallurgy, chemical industry, electronic equipment, textile machinery, etc.

• Type

  Solenoid Valves

• Application

  Single Use

• Number of Ports

  5-Port Valve

• Mounting Orientation

  Direct

• Specifications

  Standard / Lubrication Free

• Number of Solenoids

  Double

• Switching Type

  2-Position Exhaust

• Status at Power Off

  Self-Retaining

Support and Services:

SMC Solenoid Valves provide reliable and efficient control of fluid flow in various industrial applications. Our product technical support team is dedicated to assisting customers with installation, troubleshooting, and maintenance of the solenoid valves to ensure optimal performance.

In addition, SMC offers a range of services including training programs, on-site support, and access to technical documentation to help customers make the most of their solenoid valve products.
