Brand Name: | SMC |
Certification: | CE |
Model Number: | SY3220-5LZD-M5 |
Document: | 0455.pdf |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiation |
Packaging Details: | Carton /As The Clients Require |
Delivery Time: | 1-7Work Days After Payment |
Payment Terms: | T/T,Western Union,Paypal |
Supply Ability: | 5000 Pieces/1Month |
Voltage: | DC24V | Fluid: | Air |
---|---|---|---|
Ambient And Fluidd Temperature (°C): | -10 To 50 (No Freezing) | Actuation: | Double |
Type: | Solenoid Valves | Model NO.: | SY3220-5LZD-M5 |
Highlight: | SMC Solenoid Valve SY3220 DC24V,SY3000 Series Solenoid Valve M5,SMC SY3220-5LZD-M5 Valve with warranty |

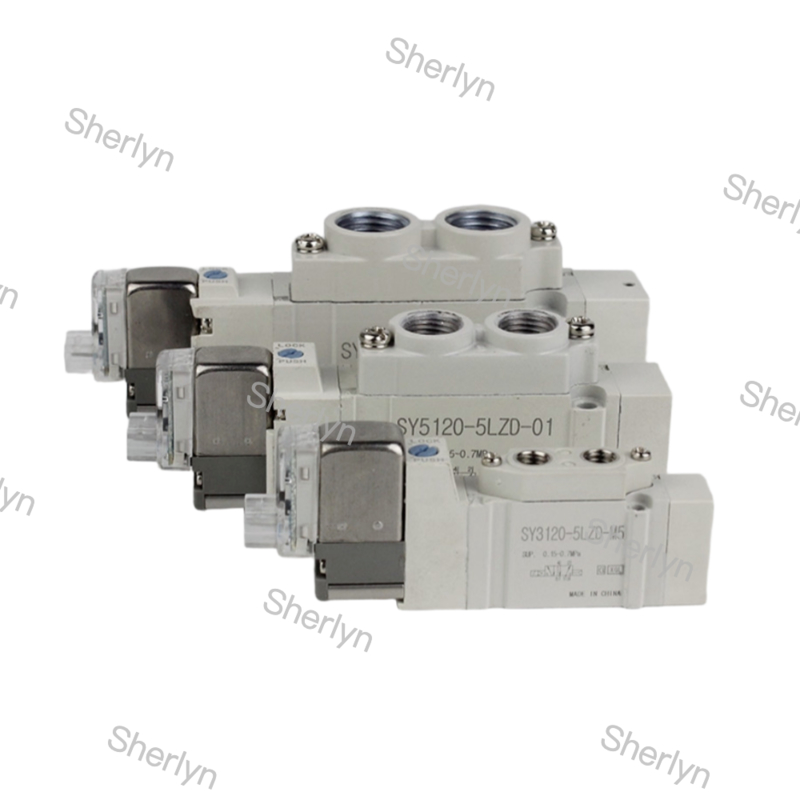

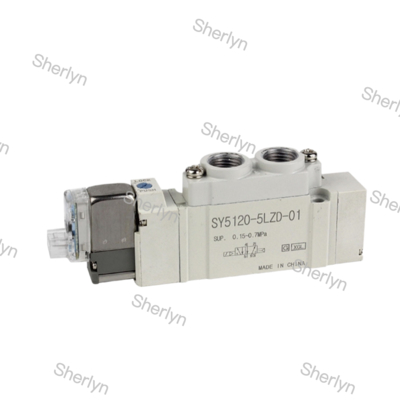

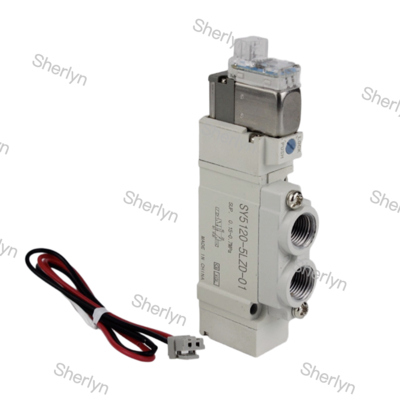

The SMC SY series solenoid valves consist of various sub series, including SY3000, SY5000, SY7000, and SY9000, each tailored with specific performance parameters to cater to diverse application requirements. The SMC SY series represents a meticulously engineered and high-performance pilot operated five-way solenoid valve system. Widely utilized in industrial automation, this series serves as a fundamental element of pneumatic control, renowned for its superior reliability, compact design, minimal power consumption, and exceptional flow characteristics.
Core Structure and Operating Principle:
The SY series operates on a pilot operated principle, generating pilot pressure through a small pilot solenoid valve to facilitate the direction change of the main spool. This innovative design allows for the manipulation of a larger main airflow with reduced electromagnetic force input, thereby ensuring low power consumption and swift response times. Featuring a five-port configuration (1 pressure inlet, 2 working ports, 2 exhaust ports), the valve body is particularly suitable for regulating the reciprocating movement of double-acting cylinders. The centralized exhaust structure plays a pivotal role in diminishing oil mist emissions and noise levels, thereby fostering a cleaner work environment.
The SMC SY series solenoid valve , known for its compact , efficient , and reliable characteristics, finds extensive usage in pneumatic control systems across various industrial automation fields, particularly in scenarios requiring control of dual acting cylinders for directional purposes.
Industrial automation production line: This is the fundamental application domain of SY series solenoid valves. They are commonly employed to regulate the direction alteration and movement of diverse pneumatic actuators (like cylinders, pneumatic motors, pneumatic grippers, etc.) and serve as a crucial element in achieving motion control in automated production lines, assembly equipment, material handling, robotic arms, and more.
Automobile manufacturing industry: Within automobile manufacturing facilities, SY series solenoid valves (e.g., SY5120 model) come into play for governing the movement of welding robot arms. Their swift response capability and high dependability contribute to enhancing production efficiency and curtailing equipment failure rates.
Food and packaging industry: Food processing plants and packaging lines leverage SY series solenoid valves (like SY7120-6LZD-M5 model) for pneumatic actuator control in food packaging lines. Their superb sealing performance and anti-pollution properties align with the requirements of food safety standards.
Paper making and vacuum technology: SY series solenoid valves may be mounted on the same board and are utilized in sectors such as paper making and vacuum technology. The assembly board setup eases centralized gas supply, individual solenoid valve control, streamlines maintenance, and bolsters production efficiency.
Other industrial fields: Furthermore, this range of valves could be extensively utilized in nearly all industrial applications necessitating pneumatic control, encompassing metallurgy, chemical industry, electronic equipment, textile machinery, and beyond.
Type | Solenoid Valves | Application | Single Unit |
---|---|---|---|
Mounting Orientation | Direct | Voltage | DC24V |
Specification | Standard / Lubrication Free | Valve Type | 5-Port Valve |

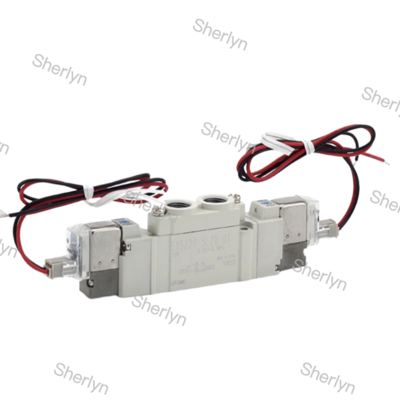

Actuation | Double | Status at Power Off | Self-Retaining |
Our Product Technical Support team for SMC Solenoid Valves is dedicated to providing assistance with any technical questions or issues you may encounter. Our expert team is available to help troubleshoot problems, provide guidance on installation and maintenance, and offer solutions to ensure optimal performance of your solenoid valves.
In addition to technical support, we also offer a range of services for SMC Solenoid Valves, including maintenance contracts, training programs, and customization options to meet your specific needs. Our goal is to help you maximize the efficiency and reliability of your solenoid valves while minimizing downtime and operational costs.
Product: SMC Solenoid Valves
Description: The SMC Solenoid Valves are high-quality valves designed for efficient control of fluids in various industrial applications. They are durable, reliable, and easy to install.
Packaging: Each SMC Solenoid Valve is carefully packaged in a sturdy cardboard box to ensure safe transportation and delivery.
Shipping: We offer fast and reliable shipping services to ensure that your SMC Solenoid Valves reach you in a timely manner. Orders are processed promptly and shipped with care to prevent any damage during transit.
