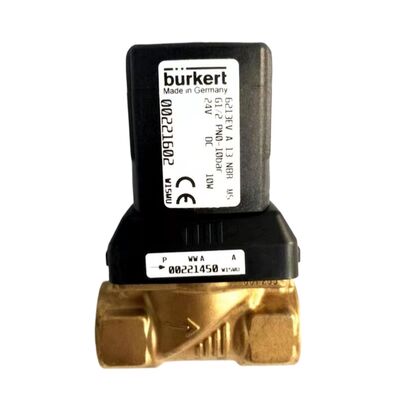

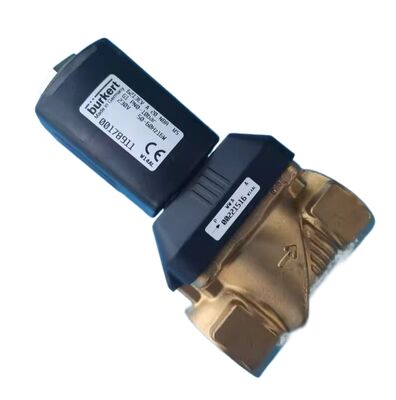

Burkert 6281 Series 00221869 AC24V G3/8 2-Position 2-Way FKM Seal

Product Description:

By utilizing FKM (Fluorocarbon Elastomer) seals, the valve is capable of handling media at elevated temperatures. When equipped with a standard coil, it supports a medium temperature range from 0°C up to +90°C. If a high-temperature epoxy resin coil is installed, the maximum allowable temperature can be increased to +120°C. Additionally, the FKM material provides excellent resistance against a variety of chemical substances, including hot air, peroxide solutions, and solvents such as tetrafluoroethylene.

This valve functions as a servo-controlled diaphragm valve, requiring only a minimal pilot pressure difference of about 0.2 bar to open. This design ensures stable operation throughout a broad pressure range spanning from 0.2 to 16 bar. It also guarantees dependable actuation even in scenarios involving low pressure or vacuum conditions.

The valve body is commonly constructed from brass, which is suitable for potable water applications, though stainless steel is also available as an option. It is manufactured using a die-cast process to achieve a high-quality surface finish and enhanced strength. Inside, the valve features a damped design and a vibration-resistant coil system, which together provide smooth and quiet switching performance, effectively minimizing water hammer effects and mechanical wear.

Available in both Normally Open (NO) and Normally Closed (NC) versions, the valve offers versatility for various applications. Standard models include a manual override feature, simplifying system commissioning, testing, and allowing emergency operation during power outages. The valve’s electrical protection rating is IP65 when used with the standard plug. Furthermore, some versions are ATEX certified, making them suitable for use in hazardous environments.

Applications:

Due to the exceptional high-temperature and chemical resistance of its FKM seals, the Type 6281 is especially well-suited for various demanding applications.

One primary area of use is in high-temperature air and gas handling. It serves as an excellent solution for managing hot media, such as heated air, within systems like boilers, drying equipment, and hot air generators.

Additionally, the Type 6281 is capable of handling specific chemical media. It performs reliably when used with chemical fluids such as peroxide solutions and tetrafluoroethylene solvents, which require sealing materials capable of withstanding harsh conditions.

Moreover, it finds widespread application in general industrial fluid control. This includes typical industrial environments such as compressed air systems, vacuum systems, water treatment processes, and heating or cooling circuits.

Support and Services:

Burkert Solenoid Valves are designed to provide reliable and efficient control of fluids in a wide range of industrial applications. For optimal performance, it is important to follow proper installation, operation, and maintenance guidelines as outlined in the product documentation.

Installation should be carried out by qualified personnel, ensuring that the valve is mounted in the correct orientation and that all electrical connections comply with local regulations and the specifications provided by Burkert. Use only recommended tools and accessories to avoid damage to the valve components.

During operation, ensure that the valve is used within its specified pressure, temperature, and voltage ranges. Avoid exposure to corrosive or abrasive media unless the valve is specifically designed for such conditions. Regularly inspect the valve for signs of wear, leakage, or electrical faults.

Maintenance procedures include periodic cleaning of the valve components, checking the coil resistance, and verifying the integrity of seals and diaphragms. Replacement parts should be genuine Burkert components to maintain product performance and warranty coverage.

If troubleshooting is required, consult the troubleshooting section of the product manual for common issues such as valve not actuating, leakage, or electrical failures. Follow the recommended diagnostic steps to identify and resolve problems effectively.

For any technical support needs beyond the provided documentation, Burkert offers expert assistance to help optimize system performance and address specific application requirements.
