Product Description:

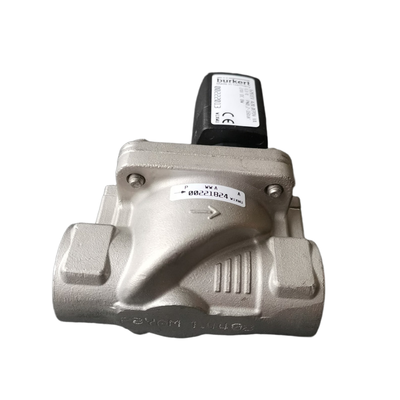

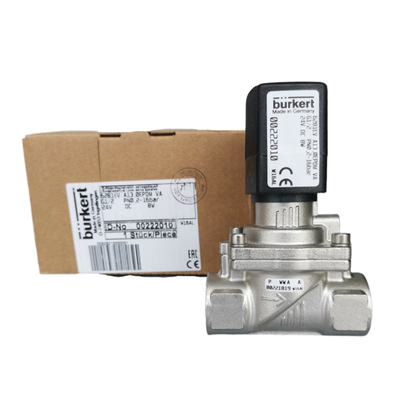

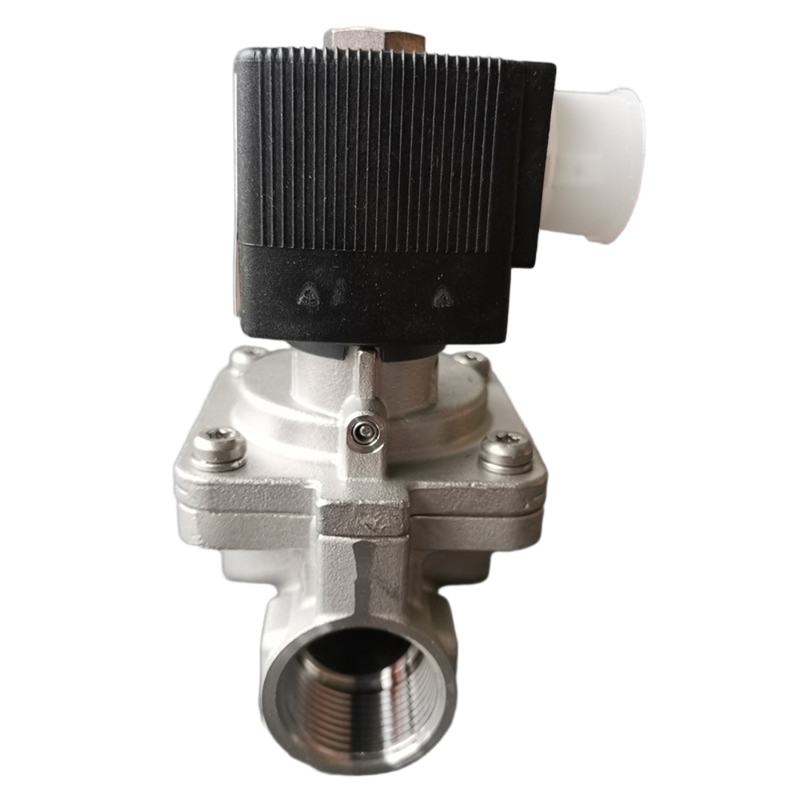

The Burkert 6281 series belongs to the S.EV range and is a servo-assisted 2/2-way diaphragm solenoid valve. It is specifically engineered to provide reliable shut-off, dosing, and filling functions for neutral gaseous and liquid media. The valve’s construction includes a stainless steel body combined with an EPDM (ethylene-propylene-diene rubber) seal, which ensures outstanding corrosion resistance and flexibility at low temperatures, making it suitable for demanding industrial environments.
To operate effectively, the valve requires a minimum differential pressure. Its design incorporates a vibration-resistant, centrally screwed coil system with damping features, resulting in quiet closing and an extended service life. The valve features a standard brass housing that complies with all European drinking water standards (KTW/W270). For markets requiring enhanced durability, a version with dezincification-resistant brass is also available. Additionally, a stainless steel variant is offered to meet diverse application needs.
For improved energy efficiency during operation, coils equipped with "Kick and Drop" (KD) electronics, which utilize double coil technology, can be supplied. The valve can also be fitted with a manual override, facilitating easy maintenance and commissioning procedures. When paired with a compatible cable plug conforming to DIN EN 175301-803 Form A, these valves achieve an IP65 protection rating. Moreover, the stainless steel housing option elevates the protection class to NEMA 4X.
Installation of the valve can be performed in any orientation, although it is preferable to position the actuator in an upright manner to optimize performance.
Features:
Stainless Steel Body Construction
The stainless steel body offers outstanding corrosion resistance, making it ideal for use with aggressive media and in challenging environments.
EPDM Seal
The EPDM (Ethylene-Propylene-Diene Rubber) seal ensures excellent resistance against water, dilute acids, alkalis, and various other media. It functions effectively within a temperature range of -30°C to +90°C, extending up to +100°C when equipped with an epoxy coil.
Servo-Assisted Diaphragm Design
This design guarantees dependable operation for shut-off, dosing, and filling processes involving neutral and mildly aggressive media.
Normally Closed Configuration
The circuit function A (Normally Closed) setup provides fail-safe operation, meeting essential requirements for process control applications.
Wide Port and Orifice Range
Port sizes vary from G1/4 to G2, and orifice sizes range between 10 mm and 40 mm, allowing for customization to different flow demands.
Wide Pressure Range
The system operates efficiently under pressures from 0.2 bar up to 16 bar.
Standard 8W Coils
Standard coils rated at 8 watts provide a 100% continuous duty cycle, ensuring reliable, long-term usage.
Multiple Voltage Options
The product is available with various voltage options including DC24V, AC24V, and AC220V, each with a tolerance of ±10%, facilitating global application compatibility.
IP65 / NEMA 4X Protection
With appropriate cable plugs, the system is dust-tight and protected against water jets, complying with IP65 and NEMA 4X standards.
Vibration-Proof Coil System
A centrally screwed coil system enhances secure operation, particularly in demanding industrial environments subject to vibration.
Damped Design for Quiet Closing
The damped mechanism ensures quiet closing, making it suitable for noise-sensitive surroundings.
Energy-Saving Option
The Kick-and-Drop (KD) double coil technology option lowers power consumption during operation, promoting energy efficiency.
Manual Override Option
An easy-to-use manual override feature supports maintenance and commissioning tasks, enhancing serviceability.
Drinking Water Approvals
The standard brass housing complies with all European standards for drinking water applications.
Explosion-Proof Variants
ATEX certified versions are available, suitable for use in hazardous areas requiring explosion-proof equipment.
Flexible Installation
The device can be installed in any orientation, although it is recommended to have the actuator positioned upright for optimal performance.
Technical Parameters:
| Voltage Options |
DC24V, AC24V, AC220V |
| Seal and Diaphragm Material |
EPDM |
| Orifice Sizes |
10 mm, 13 mm, 20 mm, 25 mm, 40 mm |
| Circuit Function |
Normally Closed |
| Power Consumption |
8W |
| Port Sizes |
G1/4, G3/8, G1/2, G3/4, G1, G1 1/4, G1 1/2, G2 |
| Body Material |
Stainless Steel |
| Pressure Range |
0.2 to 16 Bar |
| Valve Type |
2/2-way Diaphragm Solenoid Valve |
| Medium Temperature |
-30°C to +90°C |
Applications:
Water treatment involves the management and regulation of water within treatment plants and potable water supply systems. Ensuring safe and efficient control is essential for delivering clean drinking water.
Compressed air systems play a vital role in industrial automation and machinery, where dependable control of compressed air is crucial for optimal performance and safety.
Processes such as shut-off, dosing, and filling require precise control of neutral gaseous and liquid substances within various industrial operations. This ensures accuracy and consistency in production.
In heating and refrigeration applications, fluid control is necessary to maintain the desired temperature by regulating heating and cooling systems effectively.
Industrial automation benefits from versatile fluid control solutions that are suitable for a wide range of manufacturing and process automation tasks, enhancing efficiency and reliability.
Pneumatic control systems are designed to manage pneumatic actuators and cylinders, allowing for smooth and accurate mechanical movements in different applications.
Process control is fundamental in chemical, pharmaceutical, and other general industrial processes, where precise regulation of fluids is critical to product quality and safety.
Cooling and air conditioning systems depend on effective control of cooling water and chilled water circuits to maintain optimal environmental conditions.
For environments with explosive atmospheres, specially designed ATEX-certified versions are available, ensuring safe operation within hazardous areas.
