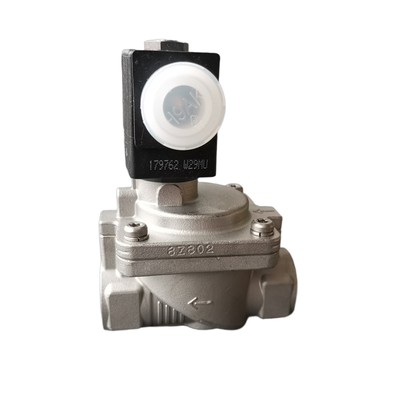

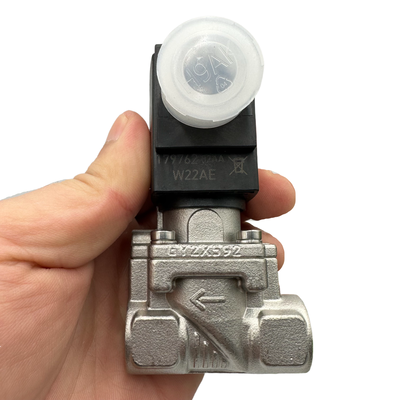

arge Caliber NO Burkert 6281 Solenoid Control Valve G1 1/4 2/2 NO Stainless Steel Valve Body Inert FKM Seal 25mm Flow Orifice 8W Coil DC24V AC24V AC220V Optional 00228396 00228397 00228398

Product Description:

The 6281 series is a servo-assisted 2/2-way diaphragm solenoid valve engineered for dependable shut-off, precise dosing, and efficient filling of neutral and mildly aggressive gaseous and liquid media. This valve boasts a stainless steel body combined with an FKM (fluororubber) seal, which provides excellent resistance to corrosion and performs well under high-temperature conditions, making it ideal for demanding industrial environments.

For optimal operation, the valve requires a minimum differential pressure. Its design includes a vibration-resistant, centrally screwed coil system along with damping features that ensure quiet closing and extend the valve's service life. The FKM diaphragm is particularly resistant to hot air, various chemical solutions, oils, and solvents, accommodating media temperatures ranging from 0°C up to +120°C when paired with an epoxy coil. Additionally, the stainless steel construction delivers outstanding durability, even when exposed to aggressive media and harsh conditions.

To enhance energy efficiency, the valve offers coils equipped with electronic power reduction technology, known as Kick and Drop double coil technology, which minimizes power consumption during operation. Maintenance and commissioning are simplified through the availability of a manual override option. When used with an appropriate cable plug meeting DIN EN 175301-803 Form A standards, the valve achieves an IP65 protection rating. Furthermore, if combined with a stainless steel housing, it meets the NEMA 4X rating. Installation flexibility is ensured since the valve can be mounted in any orientation, although it is recommended to position the actuator upright.

Features:

The construction of the body using stainless steel ensures outstanding resistance to corrosion. This makes the product suitable for handling aggressive media and performing reliably in demanding environmental conditions.

The sealing material used is FKM (Fluororubber), which provides excellent durability against hot air, various chemical solutions, oils, and solvents. It supports media temperatures ranging from 0°C up to +120°C, making it versatile for a range of applications.

Equipped with a servo-assisted diaphragm design, the device guarantees dependable operation for shut-off, dosing, and filling tasks involving neutral and mildly aggressive media. This design enhances precision and reliability.

Featuring a normally open configuration, also known as circuit function B (NO), the system ensures fail-open operation when it is not energized. This adds a layer of safety and functionality in critical scenarios.

The product offers a wide selection of port and orifice sizes to accommodate diverse flow requirements. Port sizes range from G1/4 to G1 1/2, with orifice diameters available between 10 mm and 40 mm.

Operating pressure spans a broad range from 0.2 bar up to 16 bar, allowing compatibility with many different pressure conditions encountered in industrial processes.

Standard 8W coils are incorporated to provide a continuous duty cycle at 100%, ensuring reliable and long-lasting operation even in demanding applications.

Multiple voltage options are available, including DC24V, AC24V, and AC220V, all featuring ±10% tolerance. This allows the product to be used globally with various power supply standards.

With IP65 and NEMA 4X protection ratings, the unit is dust-tight and safeguarded against water jets, given that an appropriate cable plug is used. This makes it well-suited for harsh environments.

The vibration-proof coil system uses a centrally screwed design to maintain secure and stable operation in tough industrial conditions, minimizing the risk of malfunctions caused by vibrations.

A damped design enables quiet closing of the valve, ensuring low noise levels which is beneficial in noise-sensitive environments.

An energy-saving option is available through the Kick-and-Drop (KD) double coil technology, which reduces power consumption during operation, contributing to overall efficiency.

The device includes a manual override option, facilitating easy maintenance and commissioning by allowing manual control when necessary.

For use in hazardous areas, explosion-proof variants that are ATEX certified can be supplied, ensuring compliance with strict safety standards.

The installation of this product is flexible and can be carried out in any position; however, the actuator is preferably installed in an upright orientation for optimal performance.

Response time varies between 0.1 and 4 seconds, depending on the selected orifice size and differential pressure, allowing adjustment according to specific application requirements.

Technical Parameters:

Applications:

Chemical processing demands reliable management of various aggressive chemicals, solvents, and corrosive substances. Ensuring precise control in these environments is critical for safety and efficiency.

Hot air and gas systems require accurate regulation of heated air and gaseous media, functioning effectively at temperatures up to +120°C. This ensures optimal performance in thermal processing operations.

Handling oils, solvents, and other hydrocarbon-based fluids necessitates specialized solutions that can maintain integrity and prevent contamination throughout the process.

Industrial automation benefits from general-purpose fluid control systems that streamline manufacturing and process automation, enhancing productivity and operational consistency.

Water treatment facilities rely on effective water control mechanisms to manage both industrial water systems and treatment processes, ensuring compliance with environmental standards.

Process control applications span chemical, pharmaceutical, and various general industrial processes, requiring adaptable systems capable of precise fluid management.

The control of shut-off, dosing, and filling operations involves managing both neutral and aggressive gaseous and liquid media, ensuring accuracy and safety in production lines.

For environments with explosive risks, ATEX-certified versions are available to guarantee safe operation in hazardous areas, meeting stringent regulatory requirements.

Customization:

Experience superior quality with the BURKERT Burkert Electromagnetic Valve, model number 00322547 SS, manufactured in CHINA. Our Burkert Electromagnetic Valve is CE certified, ensuring compliance with international standards for safety and performance.

We offer customizable options to meet your specific needs, including body material made from durable stainless steel and seal and diaphragm material crafted from high-quality FKM. Choose from various orifice sizes: 10 mm, 13 mm, 20 mm, 25 mm, and 40 mm to perfectly fit your application.

The Burkert Electromagnetic Valve features a 2/2-way valve type and an IP65 protection class, guaranteeing reliable operation even in demanding environments. Our minimum order quantity is just 1 piece, with flexible pricing available through negotiation.

Packaging is tailored to your requirements, with options such as carton packaging to ensure safe delivery. We maintain a supply ability of 5000 pieces per month, with a delivery time of 1-7 work days after payment. Payment terms include T/T, Western Union, and PayPal for your convenience.

Choose BURKERT for customizable, high-performance solenoid valves that meet your exact specifications and deliver exceptional reliability.

Packing and Shipping:

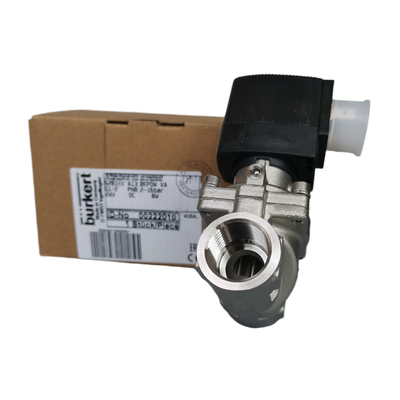

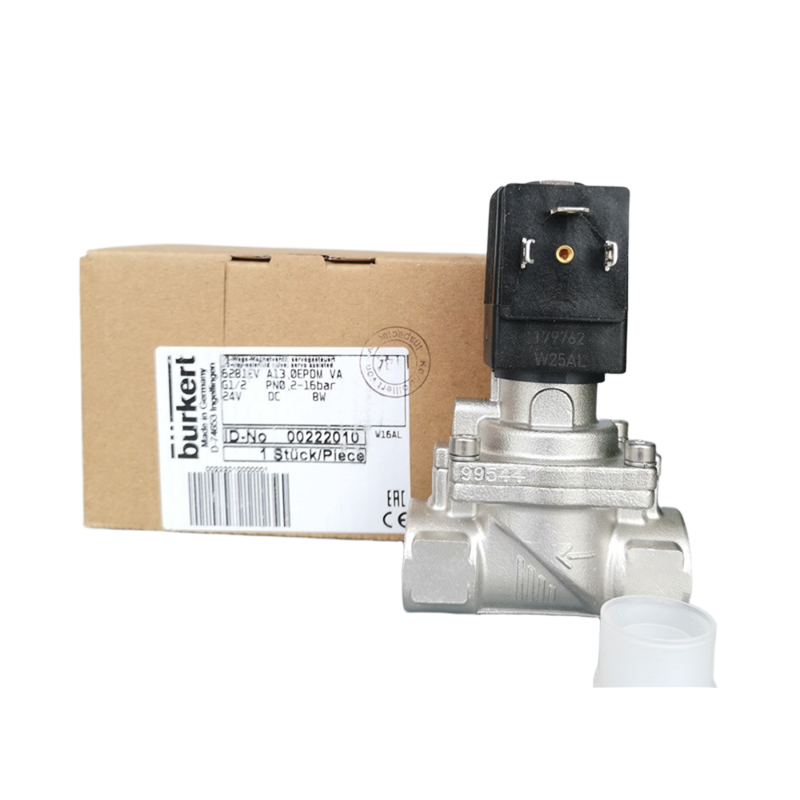

Each Burkert Solenoid Valve is carefully packaged to ensure maximum protection during transit. The valve is securely placed in a custom-fitted foam insert within a sturdy corrugated cardboard box to prevent any movement or damage.

Packaging includes all necessary documentation such as the product datasheet, installation instructions, and warranty information. Each box is clearly labeled with product details, model number, and handling instructions.

For shipping, Burkert Solenoid Valves are shipped via reliable carriers with tracking options available. Fragile handling is requested to maintain product integrity. Depending on the destination, standard or expedited shipping methods are offered to meet customer requirements.

Bulk orders are palletized and shrink-wrapped for added stability and protection during shipment. Special shipping requests can be accommodated upon customer inquiry.
