Product Description:

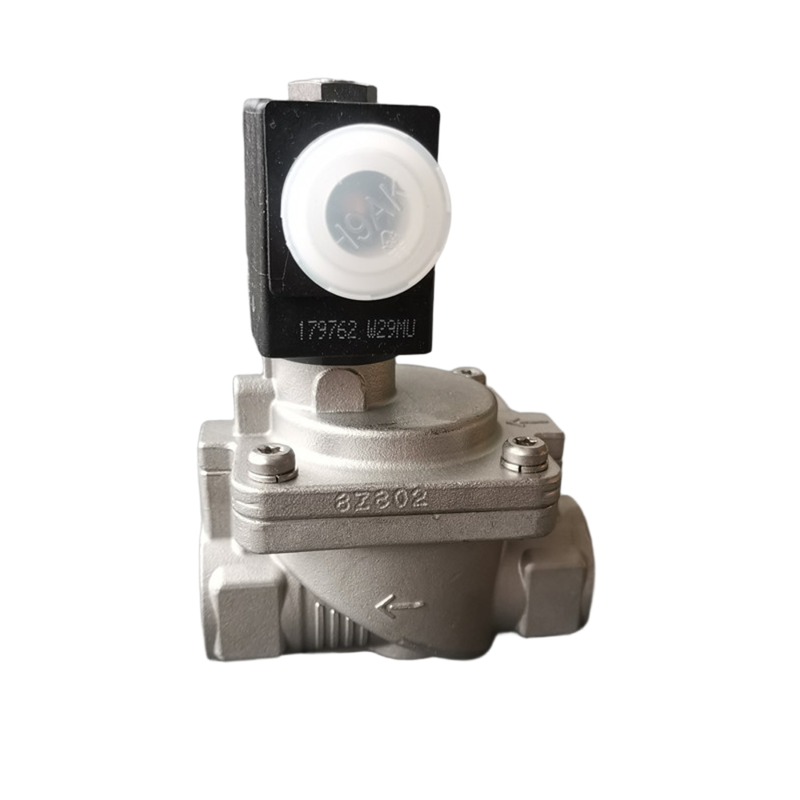

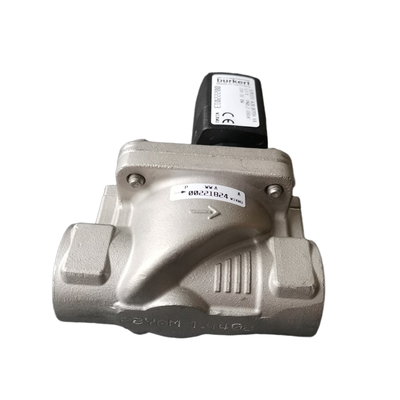

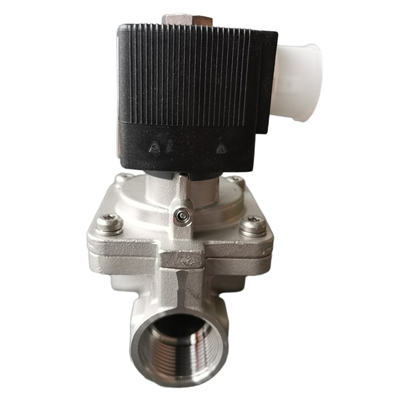

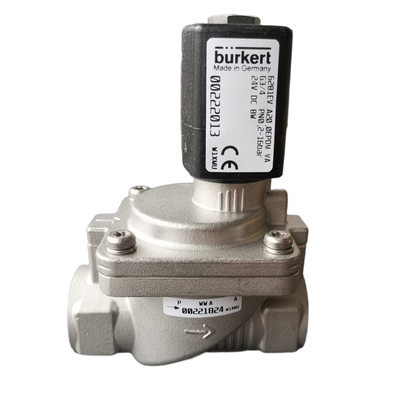

The Burkert 6281 series belongs to the S.EV series and is a servo-assisted 2/2-way diaphragm solenoid valve. It is specifically engineered to provide dependable shut-off, dosing, and filling functions for neutral gaseous and liquid media. This valve is constructed with a stainless steel body combined with an EPDM (ethylene-propylene-diene rubber) seal, which delivers excellent resistance to corrosion as well as flexibility at low temperatures, making it well-suited for challenging industrial environments.
For proper operation, the valve requires a minimum differential pressure. Its coil system is vibration-resistant and centrally screwed, featuring a damped design that guarantees quiet closing and extends the valve’s service life. The standard model uses a brass housing that complies with all relevant European drinking water standards (KTW/W270). Additionally, dezincification-resistant brass versions are available for other international markets, complemented by a stainless steel variant to meet varied application needs.
To improve energy efficiency during operation, the valve offers coils equipped with "Kick and Drop" (KD) electronics, utilizing double coil technology to reduce power consumption. Maintenance and commissioning are simplified through an optional manual override feature. When paired with a suitable cable plug conforming to DIN EN 175301-803 Form A, these valves achieve an IP65 protection rating. Furthermore, with a stainless steel housing, they meet the stringent NEMA 4X standard for protection against environmental factors.
Installation is flexible, allowing the valve to be mounted in any position. However, it is recommended to position the actuator upright to ensure optimal functionality and longevity.
Features:
The valve features a robust stainless steel body construction, ensuring excellent corrosion resistance. This makes it ideal for use with aggressive media and in demanding environmental conditions.
Equipped with an EPDM (Ethylene-Propylene-Diene Rubber) seal, the valve offers outstanding resistance against water, dilute acids, alkalis, and various other media. It supports a media temperature range from -30°C up to +90°C, which can be extended to +100°C when using an epoxy coil.
Its servo-assisted diaphragm design guarantees reliable operation, suitable for shut-off, dosing, and filling tasks involving neutral and mildly aggressive media. Additionally, the normally closed (NC) configuration with circuit function A delivers fail-safe operation, catering to critical process control requirements.
The product provides a wide selection of port sizes ranging from G1/4 to G2, along with orifice sizes between 10 mm and 40 mm. This variety ensures compatibility with diverse flow demand scenarios. It can handle pressures from 0.2 bar up to 16 bar.
Standard 8W coils enable a 100% continuous duty cycle, promoting reliable and long-term functionality. Multiple voltage options are offered, including DC24V, AC24V, and AC220V, each with a ±10% tolerance, ensuring compatibility across global electrical standards.
With an IP65 / NEMA 4X rating, the valve is dust-tight and protected against water jets, provided it is used with the appropriate cable plug. The vibration-proof coil system features a centrally screwed coil, allowing secure operation in challenging industrial environments.
The design incorporates damping to achieve quiet closing, which is beneficial in noise-sensitive settings. An energy-saving feature, the Kick-and-Drop (KD) double coil technology, helps reduce power consumption during use.
Maintenance and commissioning are simplified by a service-friendly manual override option. The valve’s standard brass housing complies with all European drinking water standards, making it suitable for potable water applications.
For hazardous area usage, explosion-proof variants with ATEX certification are available. Installation is flexible, as the valve can be mounted in any position, although it is preferred to have the actuator oriented upright.
Technical Parameters:
| Body Material |
Stainless Steel |
| Power Consumption |
8W |
| Port Sizes |
G1/4, G3/8, G1/2, G3/4, G1, G1 1/4, G1 1/2, G2 |
| Voltage Options |
DC24V, AC24V, AC220V |
| Circuit Function |
Normally Closed |
| Orifice Sizes |
10 Mm, 13 Mm, 20 Mm, 25 Mm, 40 Mm |
| Medium Temperature |
-30°C To +90°C |
| Seal and Diaphragm Material |
EPDM |
| Valve Type |
2/2-way Diaphragm Solenoid Valve |
| Pressure Range |
0.2 To 16 Bar |
Applications:
Water Treatment involves managing and regulating water within treatment plants as well as systems that provide drinking water. Effective control in these facilities ensures safe and clean water supply.
Compressed Air Systems require dependable control mechanisms to manage compressed air utilized in various industrial automation processes and machinery operations, ensuring efficiency and reliability.
Shut-Off, Dosing, and Filling processes focus on handling neutral gaseous and liquid substances in industrial settings. Precise control is vital for maintaining process accuracy and safety.
Heating and Refrigeration systems depend on fluid control technologies to maintain optimal temperature regulation in heating and cooling applications.
Industrial Automation encompasses fluid control solutions designed for general purposes within manufacturing environments and process automation, aiming to enhance productivity and operational consistency.
Pneumatic Control Systems specialize in governing pneumatic actuators and cylinders, which are critical components in automated mechanical functions.
Process Control addresses the needs of chemical, pharmaceutical, and various other process industries by providing specialized regulation and management of fluids involved in production.
Cooling and Air Conditioning applications utilize control systems to effectively manage cooling water and chilled water circuits, thereby contributing to maintaining controlled environments.
For use in Hazardous Areas, ATEX certified versions of control systems are available, ensuring safe operation within explosive or potentially dangerous environments.
Support and Services:
Burkert Solenoid Valves are designed for reliable and precise fluid control in a wide range of industrial applications. To ensure optimal performance, it is important to follow the recommended installation, operation, and maintenance guidelines provided in the product manual.
Technical support for Burkert Solenoid Valves includes assistance with product selection, installation procedures, troubleshooting, and repair advice. Our team of experts is available to help you understand the specifications and functionality of the valve to match your application requirements.
Services available for Burkert Solenoid Valves include calibration, testing, and preventive maintenance to extend the life of the valve and ensure continuous operation. We also offer spare parts and replacement components to facilitate quick repairs and minimize downtime.
For detailed technical documentation, including datasheets, wiring diagrams, and installation instructions, please refer to the official Burkert website or the product manual provided with your valve.
Regular maintenance is recommended to check for wear, contamination, and proper electrical connections. Proper handling and storage of the solenoid valve will also contribute to its longevity and performance.
Packing and Shipping:
Each Burkert solenoid valve is carefully packaged to ensure maximum protection during transit. The product is securely placed in a custom-fitted box with protective padding to prevent any damage from shocks or vibrations. The packaging is clearly labeled with product details, handling instructions, and safety information to facilitate proper storage and handling.
For shipping, Burkert solenoid valves are dispatched using reliable carriers with tracking options to ensure timely and safe delivery. The shipping process complies with all relevant regulations, including those for hazardous materials if applicable. Customers are provided with shipping confirmation and tracking information to monitor their order status until it arrives at the designated destination.
