Two Position Three Way S Port Type SMC Solenoid Valves Temperature Range Minus 5 to 60 Celsius SMC Pneumatic Rotary Valve Series

Product Description:

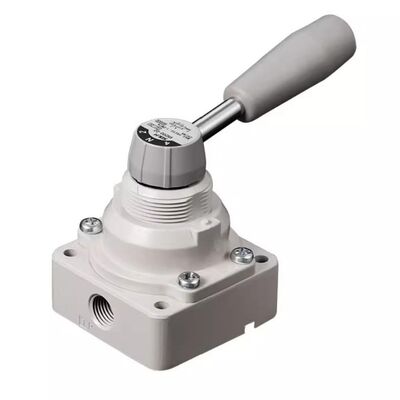

The SMC VH Series, which includes models VH301, VH300, VH312, VH311, VH332, VH330, and VH322, is a pneumatic hand rotary valve designed for manual directional control in industrial pneumatic systems. Known for its reliable performance and versatile adaptability, this valve series is widely utilized for controlling circuit on-off and directional operations across various applications such as automation equipment, machine tools, and pneumatic pipelines.

This series offers two thread connection sizes: 02 (1/4 inch) and 03 (3/8 inch). Additionally, derivative specifications like 02N and R are available to accommodate different pipeline installation needs. The valve body is constructed from die-cast aluminum alloy and undergoes surface oxidation treatment to enhance corrosion resistance. It is engineered to operate effectively within industrial environments with temperatures ranging from -5℃ to 60℃. The valve core combines a dual sealing structure, featuring both hard and elastic seals, ensuring stable sealing performance and a leakage rate that meets SMC's industrial standards. This valve is suitable for working pressure ranges between 0 and 1.0 MPa, making it compatible with standard pneumatic systems.

In terms of design and operation, the VH Series hand rotary valves are controlled manually through rotary motion, featuring precise gear positioning and a smooth rotational feel to prevent misoperation caused by equipment vibrations. Most models have a two-position three-way configuration, while some can also function as two-position two-way valves, enabling rapid switching and shutdown of pneumatic circuits. Installation options include panel mounting and base mounting, with certain models fitted with special mounting brackets to accommodate diverse equipment arrangements.

Furthermore, the VH Series valves benefit from oil-free lubrication, allowing long-term stable operation without the need for additional lubricants, thereby minimizing maintenance expenses. Some variants boast an IP65 protection rating, providing resistance against challenging conditions such as dust and moisture. When combined with accessories like mufflers and pneumatic connectors, the range of possible applications expands further. Overall, this series represents a cost-effective and reliable manual control solution within the industrial pneumatic control sector.

Technical Parameters:

This Pneumatic system manual control valve is an SMC manual rotary valve designed as a Pneumatic pipeline manual switch valve for efficient operation.

Applications:

The SMC Solenoid Valves, including the highly reliable SMC manual rotary valve, are widely used in various industrial and pneumatic control applications. Known for their precision and durability, these valves are an essential component in systems requiring efficient pneumatic control manual rotary valve solutions. The SMC brand, certified with CE standards, guarantees quality and safety, making these valves suitable for diverse application occasions and scenarios.

One common application scenario for the SMC manual rotary valve is in automated manufacturing lines where compressed air control is critical. The valves operate effectively within a working pressure range of 0~1.0MPa and a temperature range of -5℃ to 60℃, making them ideal for environments with fluctuating temperature conditions. Their hand-operated valve type design allows for easy manual adjustment, ensuring precise control over pneumatic systems, such as air-driven actuators and cylinders.

In packaging and assembly industries, the SMC pneumatic control manual rotary valve is often used to regulate airflow in equipment that requires quick and accurate switching between positions. The mostly two position three-way port type configuration supports versatile flow control, enabling smooth operation of pneumatic tools and machinery. Additionally, the valves are designed to work with dry compressed air, with oil and moisture filtered out to avoid valve core damage, ensuring long-lasting performance and minimal maintenance.

Maintenance and repair shops also benefit from the robust design of the SMC manual rotary valve, where reliable manual control of air supply is necessary for testing and troubleshooting pneumatic systems. The valves' compact size and ease of installation make them suitable for retrofitting existing equipment or integrating into new pneumatic control circuits.

With a supply ability of 5000 pieces per month and flexible packaging options, such as cartons or customized packaging as per client requirements, SMC ensures prompt delivery within 1-7 workdays after payment. The minimum order quantity is just one piece, and the price is negotiable, accommodating both small-scale and large-scale buyers. Payment terms include T/T, Western Union, and PayPal, providing convenience and security for international customers.

In summary, the SMC manual rotary valve is indispensable in applications demanding reliable pneumatic control manual rotary valve solutions across industries like manufacturing, packaging, assembly, and maintenance. Its certified quality, adaptability to various working conditions, and ease of operation make it a preferred choice for controlling compressed air in numerous industrial pneumatic systems.

Packing and Shipping:

Our SMC Solenoid Valves are carefully packaged to ensure maximum protection during transit. Each valve is individually wrapped in anti-static material and cushioned with foam inserts to prevent damage from shocks and vibrations. The valves are then placed in sturdy, corrugated cardboard boxes that are labeled with handling instructions and product details for easy identification.

For shipping, we use reliable carriers that provide tracking and timely delivery services. Depending on the destination and order size, products may be shipped via air, sea, or ground transportation. We also offer customized packaging options upon request to meet specific customer requirements.

Prior to shipment, all products undergo a thorough inspection to ensure quality and functionality. Our packaging and shipping processes comply with international standards to guarantee that your SMC Solenoid Valves arrive safely and in excellent condition.
