Working pressure range 0 to 1.0MPa pneumatic system manual control valve mostly two position three way S port type engineered for pneumatic operation

Product Description:

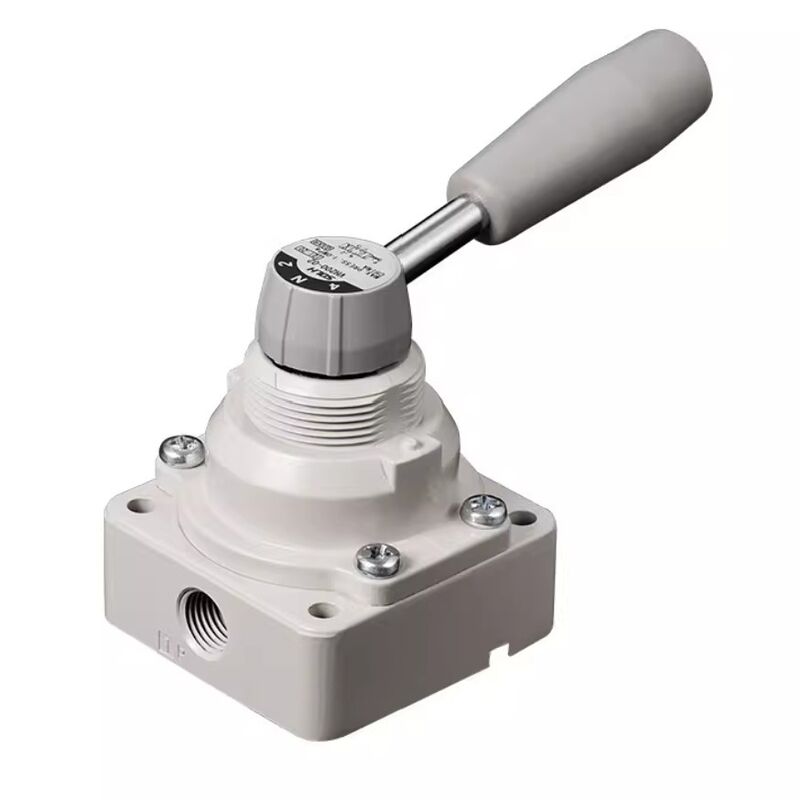

The SMC VH Series (including models VH301, VH300, VH312, VH311, VH332, VH330, and VH322) pneumatic hand rotary valve is a manually operated directional control device specifically designed for industrial pneumatic systems. Known for its reliable performance and versatile adaptability, this valve is widely used to manage circuit on-off functions and directional control in various applications such as automation equipment, machine tools, and pneumatic pipelines.

This series offers two thread connection sizes: 02 (1/4 inch) and 03 (3/8 inch). Additionally, derivative versions like 02N and R are available to accommodate different pipeline installation requirements. The valve body is constructed from die-cast aluminum alloy, which undergoes a surface oxidation treatment to provide excellent corrosion resistance. These valves are capable of operating efficiently within an industrial temperature range of -5℃ to 60℃. The valve core features a dual structure combining hard and elastic seals, ensuring stable sealing performance with a leakage rate that meets SMC's industrial standards. Suitable for working pressures from 0 to 1.0 MPa, these valves align well with the conditions found in conventional pneumatic systems.

In terms of design and operation, the VH Series hand rotary valve employs a manual rotary mechanism at its core. It offers precise gear positioning and a smooth rotary feel, effectively preventing incorrect directional operation caused by equipment vibrations. Most models are designed with a two-position three-way configuration, while some support a two-position two-way functionality, allowing for rapid switching and shutoff of pneumatic circuits. Installation methods include panel mounting and base mounting, with select models supplied with specialized mounting brackets to support diverse equipment layouts.

Furthermore, this series is characterized by oil-free lubrication, enabling long-term stable operation without the need for additional lubricants, thereby reducing maintenance costs significantly. Certain models also feature an IP65 protection rating, making them suitable for harsh environments involving dust and humidity. When combined with accessories such as mufflers and pneumatic connectors, the range of application scenarios is greatly expanded. Overall, the SMC VH Series represents a highly cost-effective manual control solution in the field of industrial pneumatic control.

Technical Parameters:

Applications:

The SMC Solenoid Valves, specifically from the SMC Pneumatic Rotary Valve series, are widely recognized for their superior quality and reliability in various industrial applications. As a trusted brand with CE certification, SMC offers pneumatic system manual control valves that are essential components in numerous pneumatic systems. These valves are designed to operate efficiently within a working pressure range of 0~1.0MPa and a working temperature range of -5℃ to 60℃, making them suitable for diverse environmental conditions.

One of the primary application occasions for the SMC Solenoid Valves is in pneumatic systems requiring precise manual control. The hand-operated valve type allows operators to easily manipulate the flow of air within pneumatic pipelines, providing a reliable pneumatic pipeline manual switch valve solution. This feature is critical in industries such as automation, manufacturing, and process control, where manual intervention is necessary for maintenance, troubleshooting, or system adjustments.

In addition to industrial automation, these valves are ideal for scenarios involving pneumatic machinery, packaging equipment, and assembly lines. Their robust construction and high supply ability—up to 5000 pieces per month—ensure that they can meet the demands of large-scale production environments. The valves come packaged in cartons or as per client requirements, with a convenient minimum order quantity of just one piece, making them accessible for both small-scale operations and large enterprises.

SMC also ensures prompt delivery, with a lead time of 1-7 work days after payment. Flexible payment terms such as T/T, Western Union, and Paypal facilitate smooth transactions. The valves’ port type, mostly two-position three-way S, enhances their versatility in controlling pneumatic flow directions manually. This makes them indispensable in applications where quick switching and precise air control are necessary.

Overall, the SMC pneumatic system manual control valve is an excellent choice for engineers and technicians seeking dependable, easy-to-operate pneumatic pipeline manual switch valves. Their adaptability, combined with SMC’s commitment to quality and customer satisfaction, makes these valves suitable for a wide range of scenarios, from simple manual controls to complex pneumatic system integrations.

Packing and Shipping:

Product Packaging:

SMC Solenoid Valves are carefully packaged to ensure they arrive in perfect condition. Each valve is individually sealed in anti-static bags to protect against moisture and dust. The valves are then securely placed in custom-fitted foam compartments within sturdy cardboard boxes. The outer packaging is clearly labeled with product information, handling instructions, and barcodes for easy identification and inventory management.

Shipping:

We offer reliable and efficient shipping options worldwide. All SMC Solenoid Valve orders are processed promptly and dispatched within 1-3 business days. Shipping methods include standard ground, expedited air freight, and courier services, depending on customer preference and destination. Each shipment is tracked with a unique tracking number provided to the customer, ensuring full transparency until delivery. Special handling requests can be accommodated to meet specific logistical requirements.
