Oil And Moisture Need To Be Filtered Out To Avoid Valve Core Damage SMC Two Position Three Way Manual Rotary Valve Port Type Mostly Two Position Three Way S

Product Description:

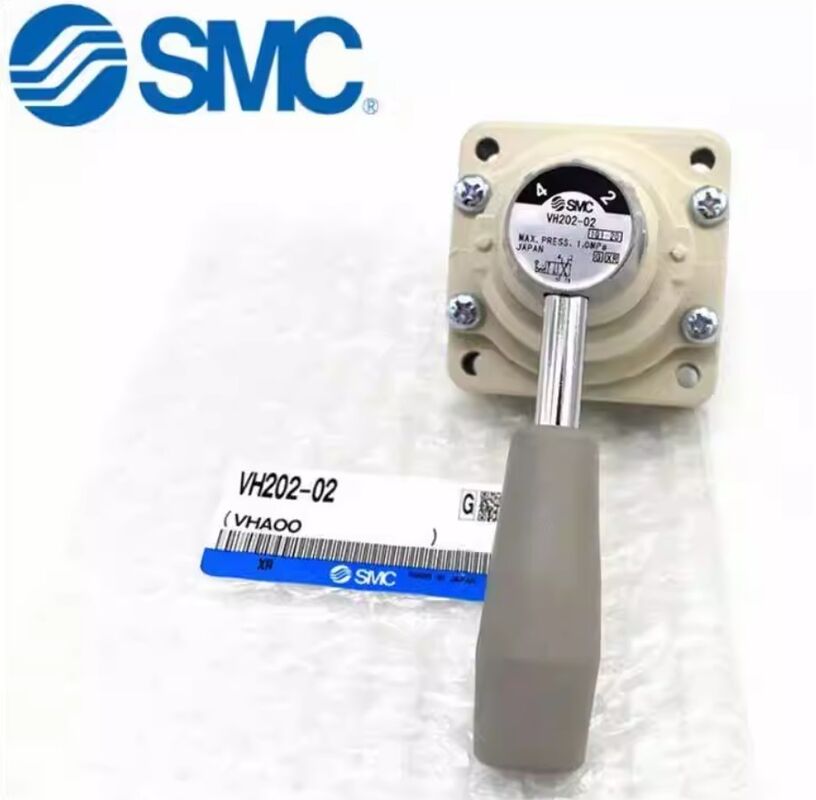

The SMC VH Series (including models VH301, VH300, VH312, VH311, VH332, VH330, and VH322) pneumatic hand rotary valve is a manually operated directional control device specially crafted for industrial pneumatic systems. Renowned for its reliable performance and versatile adaptability, this valve is extensively utilized to control circuit on-off functions and direction switching in various applications such as automatic machinery, machine tools, and pneumatic pipeline systems.

This series offers two thread connection sizes: 02 (1/4 inch) and 03 (3/8 inch). Moreover, it includes derivative specifications like 02N and R to accommodate different pipeline installation demands. The valve body is constructed from die-cast aluminum alloy, enhanced with a surface oxidation treatment that imparts excellent corrosion resistance. It is capable of operating efficiently within a temperature range of -5℃ to 60℃, making it suitable for diverse industrial environments. The valve core features a dual sealing structure combining hard and elastic seals, ensuring stable sealing performance and leakage rates that conform to SMC's industrial standards. It is designed to operate within a pressure range of 0 to 1.0 MPa, matching the requirements of conventional pneumatic systems.

In terms of design and functionality, the VH Series hand rotary valve employs manual rotary control as its primary mode of operation. It offers precise gear positioning along with a smooth rotational feel, which effectively prevents misdirection resulting from equipment vibrations. Most models incorporate a two-position, three-way configuration, while certain variants also support two-position, two-way operation, enabling rapid switching and shutoff of pneumatic circuits. Installation flexibility is ensured, with options for panel mounting and base mounting. Additionally, some models come equipped with specialized mounting brackets to suit various equipment layouts.

Furthermore, this series boasts oil-free lubrication, allowing the valves to operate reliably over extended periods without the need for supplementary lubricating oil, thereby significantly reducing maintenance costs. Selected models provide an IP65 protection rating, allowing them to withstand challenging working conditions involving dust and moisture. When combined with accessories such as mufflers and pneumatic connectors, the application scope of these valves is further broadened. Overall, the SMC VH Series stands out as a cost-effective and dependable manual control component within the realm of industrial pneumatic control systems.

Technical Parameters:

Applications:

The SMC Solenoid Valves, specifically the SMC Pneumatic Rotary Valve series, are widely recognized for their reliability and precision in various industrial and commercial applications. As a pneumatic system manual control valve, the SMC manual rotary valve is designed to provide efficient and accurate control over pneumatic systems, making it an essential component in automated and semi-automated machinery where manual intervention is required.

One of the primary application occasions for the SMC manual rotary valve is in manufacturing environments where pneumatic control manual rotary valves are used to regulate the flow of dry compressed air. Its working pressure range of 0~1.0MPa and temperature tolerance from -5℃ to 60℃ make it suitable for diverse climatic and operational conditions. This adaptability ensures that industries such as automotive assembly lines, packaging systems, and material handling units can rely on the SMC valve for consistent performance.

The SMC manual rotary valve is also ideal for scenarios requiring precise manual control of pneumatic systems, such as in testing and calibration laboratories, where operators need to manually adjust air flow to simulate different conditions. Its hand-operated valve type allows for intuitive and direct manipulation, enhancing safety and operational accuracy. The valve's compatibility with dry compressed air—while requiring oil and moisture to be filtered out to avoid valve core damage—ensures longevity and reduced maintenance costs.

Certified by CE, the SMC solenoid valves meet rigorous safety and quality standards, making them suitable for use in industries with strict compliance requirements. The product is offered with a minimum order quantity of just one unit, making it accessible for both large-scale industrial procurement and small-scale applications. Packaging is flexible, available in cartons or customized according to client requirements, ensuring safe and convenient delivery.

With a supply ability of 5000 pieces per month and a delivery time of 1-7 workdays after payment, customers can rely on prompt fulfillment of orders. Payment options including T/T, Western Union, and PayPal provide convenience and flexibility. The price is negotiable, allowing for tailored agreements based on volume and specific client needs.

In summary, the SMC Pneumatic Rotary Valve is an excellent choice for any application requiring a robust pneumatic system manual control valve or pneumatic control manual rotary valve. Its durable construction, operational versatility, and strong brand reputation make it indispensable in industrial automation, testing, and control scenarios where manual pneumatic valve operation is essential.

Packing and Shipping:

Each SMC Solenoid Valve is carefully packaged to ensure maximum protection during transit. The valves are individually placed in anti-static bags and cushioned with foam inserts to prevent any damage from shocks or vibrations. The packaging is designed to maintain product integrity and cleanliness until delivery.

For shipping, SMC Solenoid Valves are packed in sturdy, corrugated cardboard boxes that provide durability and resistance against external impacts. Each box is clearly labeled with product details, handling instructions, and shipping information to facilitate easy identification and safe handling.

SMC ensures timely delivery by partnering with reliable logistics providers, offering various shipping options including standard, expedited, and international shipping. Tracking information is provided to customers for full visibility of their order status from dispatch to arrival.

Special care is taken for bulk orders or customized solenoid valves, with tailored packaging solutions to accommodate size and weight variations, guaranteeing that all products reach customers in perfect working condition.
