Oil And Moisture Filtered Working Medium SMC Solenoid Valves Pneumatic Rotary Valve Series Two Position Three Way S Port Type

Product Description:

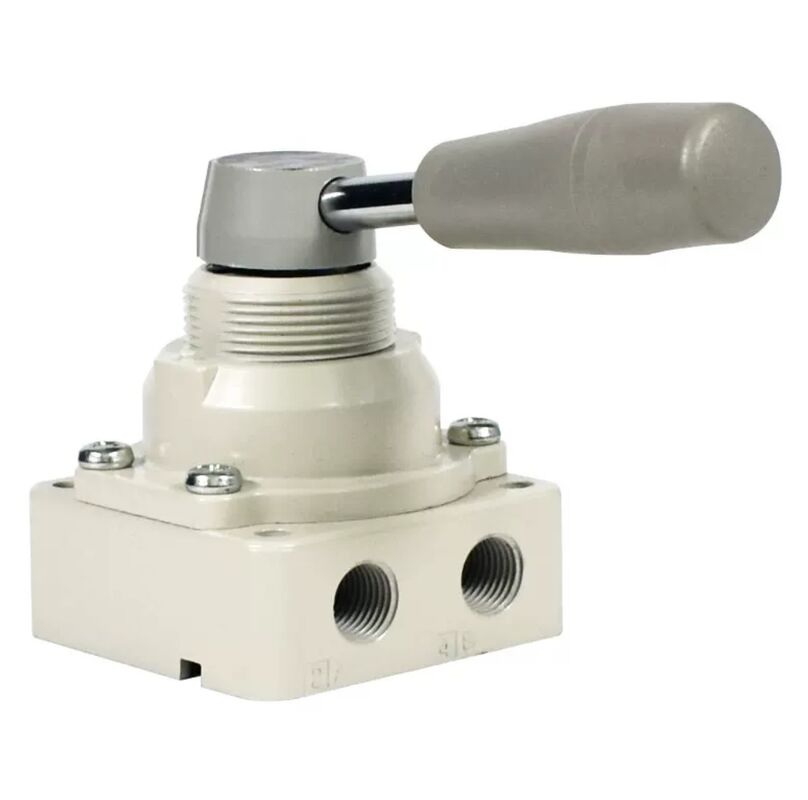

The SMC VH Series (including models VH301, VH300, VH312, VH311, VH332, VH330, VH322) is a pneumatic hand rotary valve designed for manual directional control in industrial pneumatic systems. Known for its reliable performance and versatile adaptability, this valve is extensively used to manage circuit on-off functions and directional control in various applications, such as automation equipment, machine tools, and pneumatic pipelines.

The series offers two thread connection sizes: 02 (1/4 inch) and 03 (3/8 inch). Additionally, derivative versions like 02N and R are available to accommodate different pipeline installation needs. The valve body is constructed from die-cast aluminum alloy, which is treated with surface oxidation to provide excellent corrosion resistance. It can operate efficiently within an industrial temperature range of -5℃ to 60℃. The valve core incorporates a dual sealing design—combining hard and elastic seals—to ensure stable sealing performance with leakage rates that meet SMC’s industrial standards. It is suitable for a working pressure range from 0 to 1.0 MPa, aligning with common pneumatic system requirements.

Structurally and functionally, the VH Series hand rotary valve features manual rotary operation as its primary control method. It includes clear gear positioning and a smooth rotary hand feel, which effectively prevents misoperation caused by equipment vibrations. Most models have a two-position three-way configuration, while some also offer compatibility with two-position two-way functions, allowing for rapid switching and shutting off of pneumatic circuits. The valves support two installation methods: panel mounting and base mounting. Select models also come with specialized mounting brackets to fit various equipment layouts seamlessly.

Another advantage of this valve series is its oil-free lubrication design, which enables long-term stable operation without the need for additional lubricants, significantly reducing maintenance costs. Certain models are rated with an IP65 protection level, offering resilience in challenging environments exposed to dust and moisture. When combined with accessories such as mufflers and pneumatic connectors, the application possibilities expand further. Overall, the SMC VH Series hand rotary valve stands out as a cost-effective and reliable manual control component in the realm of industrial pneumatic control.

Technical Parameters:

Applications:

The SMC Solenoid Valves are highly versatile components widely used in various industrial and commercial applications, particularly in pneumatic control systems. As a trusted product from the renowned brand SMC, these valves come with CE certification, ensuring compliance with international quality and safety standards. With a minimum order quantity of just one piece and pricing available through negotiation, these valves are accessible for both small-scale and large-scale projects. The packaging is customizable, provided in cartons or as per client requirements, guaranteeing safe delivery within 1-7 working days after payment. Payment terms are flexible, accepting T/T, Western Union, and PayPal, while the supply ability reaches up to 5000 pieces per month.

One of the standout features of the SMC Solenoid Valves is their design as hand-operated valves, making them ideal for manual control in pneumatic systems. They are predominantly available as two-position three-way valves, a configuration that facilitates precise control of airflow in pneumatic pipelines. This makes the SMC two position three-way manual rotary valve a preferred choice for applications requiring reliable and straightforward manual switching mechanisms. The valves operate efficiently within a working pressure range of 0 to 1.0 MPa and can withstand temperatures from -5℃ to 60℃, making them suitable for diverse environmental conditions.

In practical scenarios, these valves serve as pneumatic control manual rotary valves in automated machinery where manual intervention is necessary for system adjustments or emergency stops. They are commonly used as pneumatic pipeline manual switch valves to regulate airflow in complex pneumatic circuits, ensuring safety and operational efficiency. Industries such as manufacturing, automotive, packaging, and automation heavily rely on these valves to maintain optimal performance of their pneumatic equipment. The working medium for these valves is dry compressed air, and it is crucial to filter out oil and moisture to avoid valve core damage, ensuring longevity and consistent functionality.

Overall, the SMC Solenoid Valves offer robust performance, ease of manual operation, and adaptability to various pneumatic control needs. Their combination of quality certification, flexible supply chain options, and reliable technical specifications makes them indispensable in scenarios demanding precise and dependable manual control of pneumatic systems.

Packing and Shipping:

Each SMC Solenoid Valve is carefully packaged to ensure protection during transit. The valves are securely placed in custom-designed boxes with foam inserts to prevent any damage from shocks or vibrations. The packaging materials are chosen to be both durable and environmentally friendly, maintaining product integrity while minimizing environmental impact.

For shipping, SMC Solenoid Valves are handled with utmost care and shipped via reliable carriers to ensure timely and safe delivery. Tracking information is provided for all shipments, allowing customers to monitor their orders in real-time. We also offer various shipping options to accommodate different delivery speed requirements and locations worldwide.
